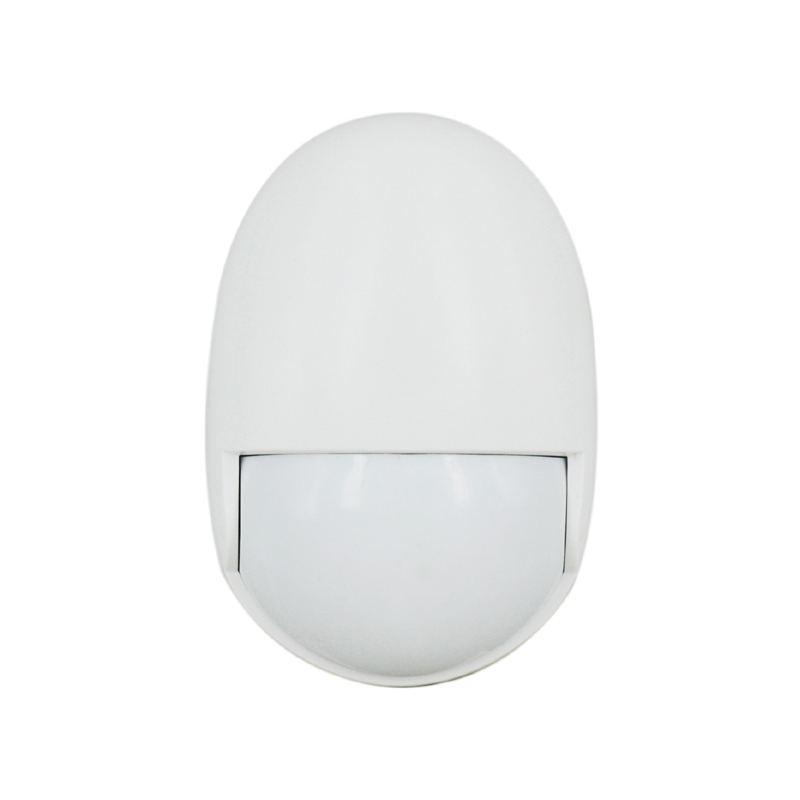

ZM-800W Z-Wave 868, 4 MHz EU Wide Angle PIR Motion Sensor

• Attractive Sleek Design with stylish white housing.
• Comprehensive detection technology combined passive infrared and microprocessor intelligent processing to eliminate the change of false alarm.
• Intelligent temperature compensation circuit, reliability operation at high temperature.
• Low power consumption design, longer battery life.
• Optional for pulse accounting process (2/4), more application.
• Downward view (look-down) detection to eliminate dead detection area beneath the sensor.
• Built with tamper proof and self-test supervision function.
• Prevents insect access into housing, reducing the chance of false activation.

  • ZM-800W
  • Sentek


ZM-800W Series

ZM-800W PIR Motion Detector

A motion sensor (passive-infrared or PIR) detects movement within a specific area by sensing the infrared energy emitted from a body as it moves across the sensor’s field of view. When this motion is detected, the sensor transmits an alarm signal to the control panel.Use these motion sensors to protect locations where door/window sensors are impractical or not needed. For example, use a motion sensor to protect large areas or open floor plans. Motion sensors also provide backup protection for door/window sensors.

ZM-800 wide angle PIR motion detector integrated RF circuit,utilized unique customs & high durability fresnel lens, the combination of dual element passive infrared technology and microprocessor intelligent processing provides precious body detection and outstanding Pet immunity function.

The PIR motion detector utilizes ultra-low power consumption design to make long battery lifetime, also integrated with RF immunity,temperature protection and noise reduction so on technologies against false alarm technology, has high endurable with local temperature changing caused by curtain or sun light etc.

Product Features

• Attractive Sleek Design with stylish white housing.

• Comprehensive detection technology combined passive infrared and microprocessor intelligent processing to eliminate the change of false alarm.

• Intelligent temperature compensation circuit, reliability operation at high temperature.

• Low power consumption design, longer battery life.

• Optional for pulse accounting process (2/4), more application.

• Downward view (look-down) detection to eliminate dead detection area beneath the sensor.

• Built with tamper proof and self-test supervision function.

• Prevents insect access into housing, reducing the chance of false activation.

Appearances


801-1





Technical Data



Power Supply

3.6V (ER14505 2700mAH)

Battery Life Expectancy

3 years (for typical use)

Detection Method

Passive Infrared

Detection Area

12m x 12m

Detectable Walk Rate

0.15~3.0 m/sec. (0.5-10 ft./sec)

Operating Temperature

-10°C - +50°C

RF Interference

No Alarm at 10V/m

White light immunity

≥6500Lux

Pulse Count

Approx. 20 sec. 2 or 4

Pet immunity

up to 40 kgs (66 lbs)

Start-up time

~40 sec

Power Consumption

Alarm (Max.): 50mA Standby: 17uA

Mounting Height

2~2.6m

Dimensions

96.0x65.0x40.0mm

Compliance with Standards

Meet EN50131-2-2, UL639

Radio Protocol

Z-Wave Plus

Radio Frequency

868,4 MHz EU (Model ZM-800WE)

908,4 MHz US (Model ZM-800WU)

921,4 MHz AU/NZ (Model ZM-801WO)

869,2 MHz RU (Model ZM-800WR)

Range

up to 30 meters indoors, depending on building materials used and the

building structure



Detection area


801-2

801-3
