ZC-200W Wireless Door Window Magnetic Detector Gap Sensor

• Flush mount for door/window etc
• Use Z-wave Plus Protocol.
• One Tamper switches built.
• The tamper switch used for programing also.
• Remote LED enable for detection indication from CIE.
• A big cover available for big hole mounting.
• Powered battery, for 2 year lite time (50 cycle/day).
• Meet EN50131-2-6 Grade 2, Class II.
• Meet UL634.

  • ZC-200W
  • Sentek


 ZC-200W Series

Z-wave Door/Window sensor

Sentek’s ZC-200W recessed sensor is a battery-powered Z-wave magnetic door/window contact sensor. ZC-200W send radio signals when the Switch and actuate-magnet separate. By take advantage of Z-wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-wave certified devices The Sentek Door/Window Sensor is designed for use with scenes in home automation systems, alarm and surveillance systems and everywhere else where information related to opening / closing of doors, windows, garage gates, etc. is needed. Suitable for smart home system.

Features


• Flush mount for door/window etc

• Use Z-wave Plus Protocol.

• One Tamper switches built.

• The tamper switch used for programing also.

• Remote LED enable for detection indication from CIE.

• A big cover available for big hole mounting.

• Powered battery, for 2 year lite time (50 cycle/day).

• Meet EN50131-2-6 Grade 2, Class II.

• Meet UL634.


Technical Data



Power Supply

Single ER14250 3.6V battery

Operating Temp

0 – 40 °C

Radio Protocol

Z-Wave Plus

Radio Frequency

ZM-200WE: 868,4 MHz EU

ZM-200WU: 908,4 MHz US

ZM-200WO: 921,4 MHz AU/NZ

ZM-200WR: 869,2 MHz RU

Range

up to 30 meters indoors, depending

on building materials used and the

building structure

Dimensions (LxWxH)

19*62 mm

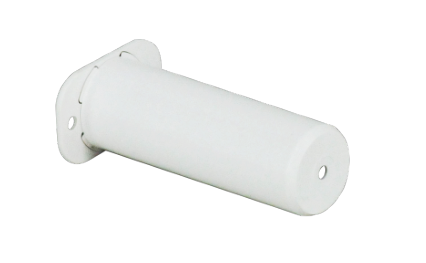

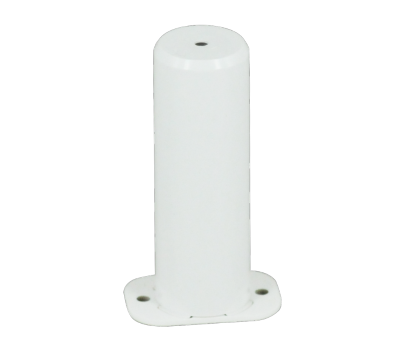

Appearances

200200-1


Certificate


证书


download1
