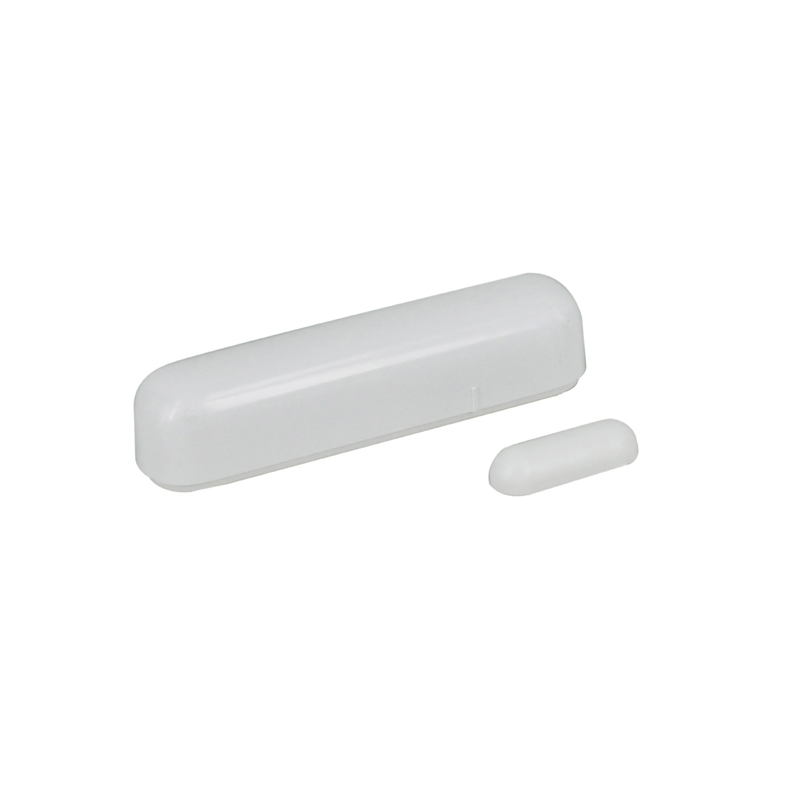

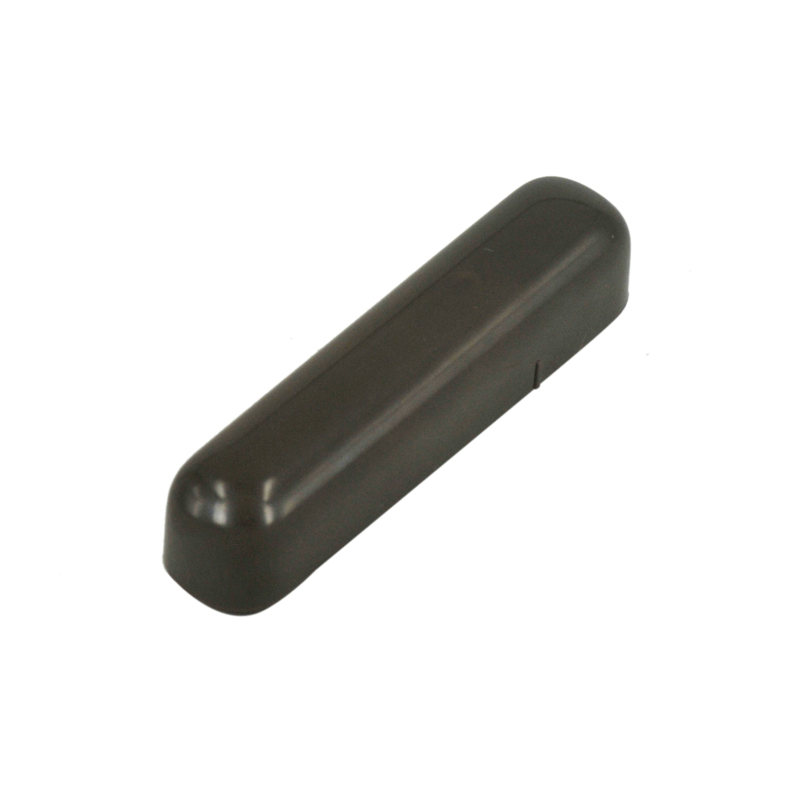

ZC-100W Z-Wave Door/Window Sensor Surface Mount Magnetic Contact

• Surface mount for door/window etc.
• Use Z-wave Plus Protocol.
• Two Tamper switches built: one for case removing, one for mounting removing.
• The tamper switch on the back used for programing also.
• I nternal built with four terminals for external input.
• Remote LED enable for detection indication from CIE.
• Optional two installation ways: adhesive tape or screws.
• Powered battery, for 3 year lite time (50 cycle/day).
• Meet EN50131-2-6 Grade 2, Class II.
• Meet UL634.

  • ZC-100W
  • Sentek


 ZC-100W Series

Z-wave Door/Window sensor

Sentek’s ZC-100W surface mount sensor is a battery-powered Z-wave magnetic door/window contact sensor for surface mounting. ZC-100W send radio signals when the Switch and actuate-magnet separate.

By take advantage of Z-wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave products.Products that are Z-Wave certified can be used and communicate with

other Z-wave certified devices

The Sentek Door / Window Sensor is designed for use with scenes in home automation systems, alarm and surveillance systems and everywhere else where information related to opening / closing of doors, windows, garage gates, etc. is needed. suitable for smart home system.

Feature


• Surface mount for door/window etc.

• Use Z-wave Plus Protocol.

• Two Tamper switches built: one for case removing, one for mounting removing.

• The tamper switch on the back used for programing also.

• I nternal built with four terminals for external input.

• Remote LED enable for detection indication from CIE.

• Optional two installation ways: adhesive tape or screws.

• Powered battery, for 3 year lite time (50 cycle/day).

• Meet EN50131-2-6 Grade 2, Class II.

• Meet UL634.


Technical Data



Power Supply

Single ER14335 (2/3AA) 3.6V battery

Input

* single, potential-free

* single, DS18B20

Operating Temp

0 – 40 °C

Radio Protocol

Z-Wave Plus

Radio Frequency

ZM-100WE: 868,4 MHz EU

ZM-100WU: 908,4 MHz US

ZM-100WO: 921,4 MHz AU/NZ

ZM-100WR: 869,2 MHz RU

Range

up to 30 meters indoors, depending

on building materials used and the

building structure

Dimensions (LxWxH)

84* 23 *20 mm

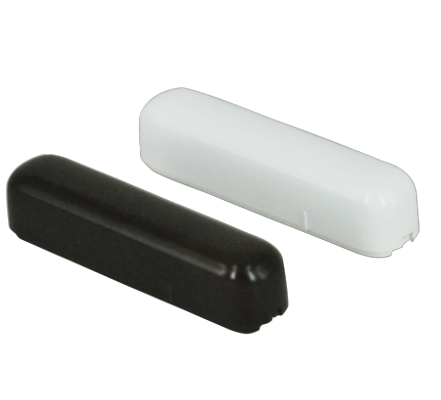

Appearances

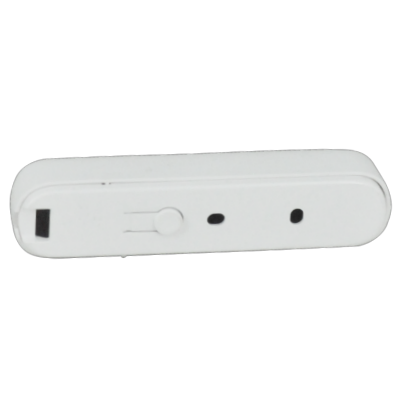

zczc-1
