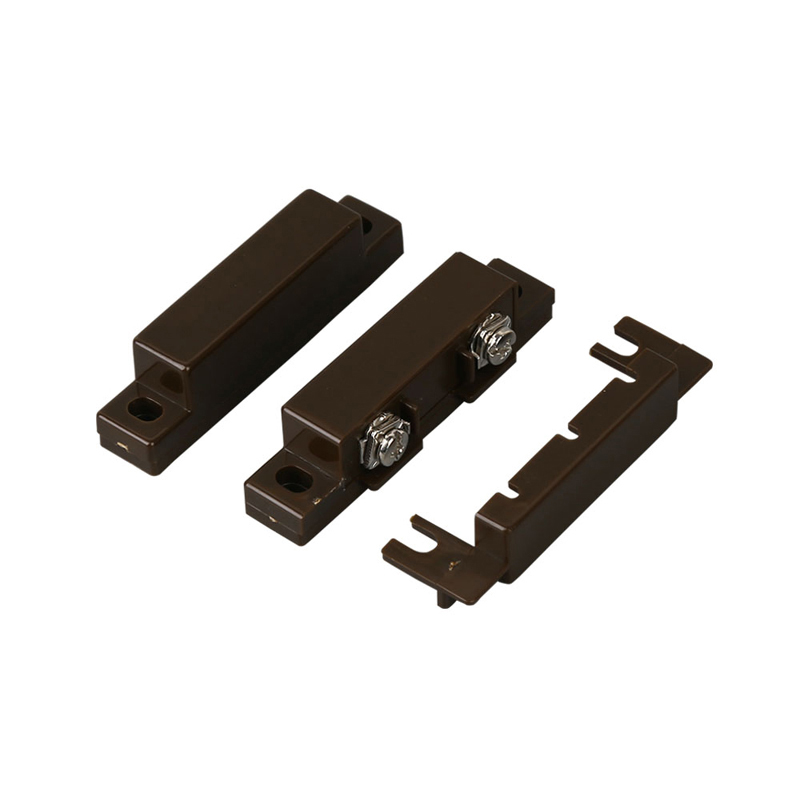

Wired Automatic Contact Switch Magnetic Door/Window Sensor BS-2031

Screw mount Concealed terminals
Spacers, cover and screws included
Switches or magnets available seperately
Resistor, Diode and Supervisory Loop available on request
With lead available: BS-2025
Colors: White, Brown, Grey
  • BS-2031
  • Sentek


BS-2031 Series

Screw mount Concealed terminals

Spacers, cover and screws included

Switches or magnets available seperately

Resistor, Diode and Supervisory Loop available on request

With lead available: BS-2025

Colors: White, Brown, Grey

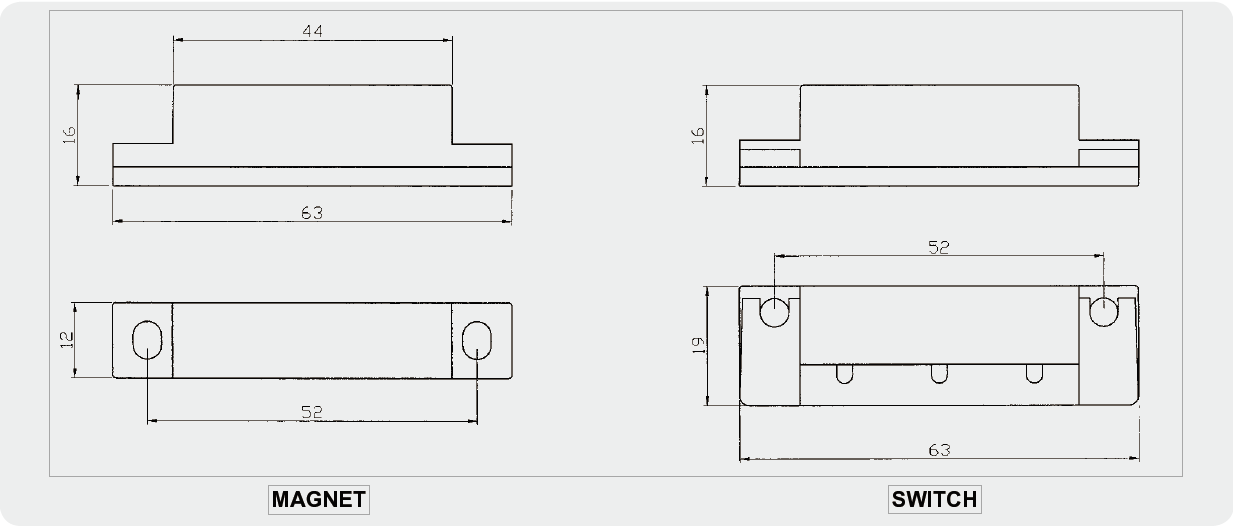

Dimension (mm)

2031

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2031

Closed

N/O

1.1

(28)

1.3 (33)            0.150       10 100  0.5
BS-2031A Open N/C

1

(25)


0.150   3   30 0.2

BS-2031C

Closed&

Open

SPDT


1

(25)




   0.150         3    30  0.2
