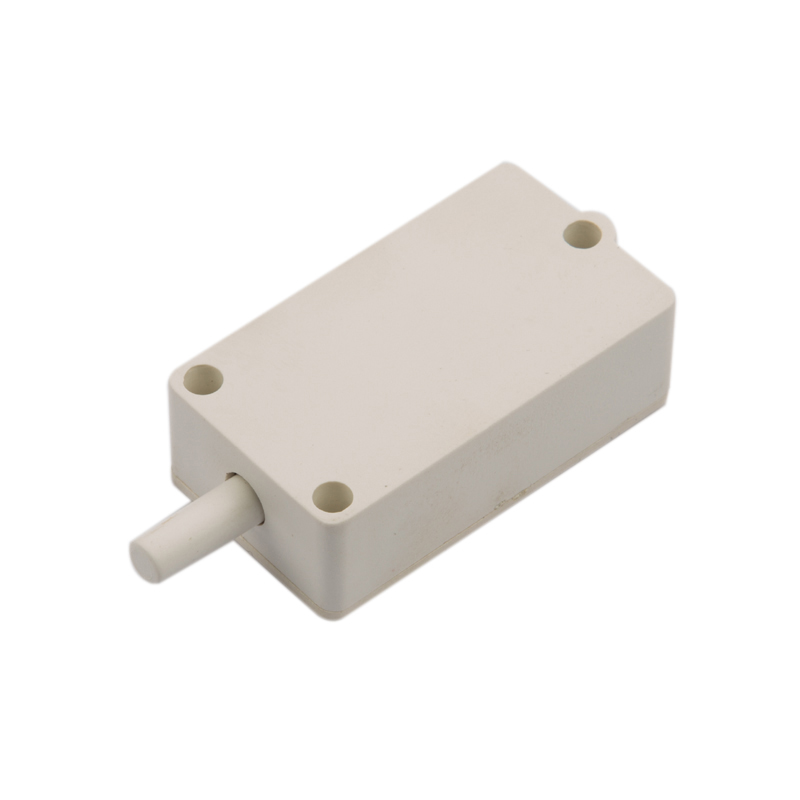

TS-01/02/03 Tamper Reed Switch Elevator Door Sensor Cheap Price Alarm System Home Security

Tamper switch
For drawers and control panel application
Made by reed switch for reliable
High-impact white plastic case
Wire range for Screw terminals: 18AWG~24AWG
Colors: White
  • TS-01/02/03
  • Sentek


TS-01/02/03 Series

Tamper switch

For drawers and control panel application

Made by reed switch for reliable

High-impact white plastic case

Wire range for Screw terminals: 18AWG~24AWG

Colors: White

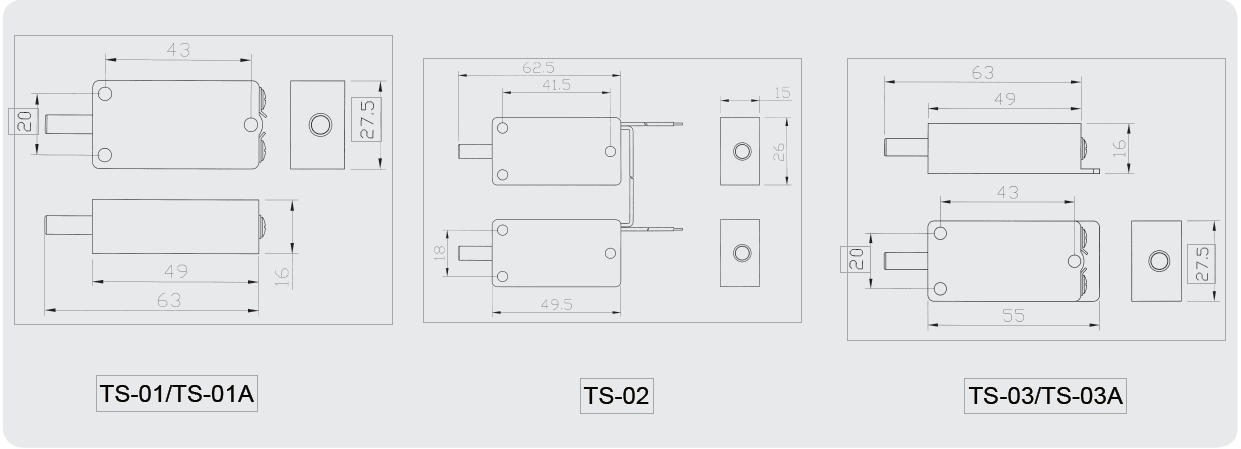

Dimension (mm)

TS01

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

TS-01

Closed

N/O

0.35

(0.89)

             0.150       10 100  0.5

TS-01A

Open

N/C

0.35

(0.89)


   0.150        10 100   0.5
TS-02 Closed N/C

0.35

(0.89)

0.150 10 100  0.5
TS-03 Closed N/O

0.35

(0.89)

0.150 10 100  0.5
TS-03A Open N/C

0.35

(0.89)

0.150 10 100  0.5
