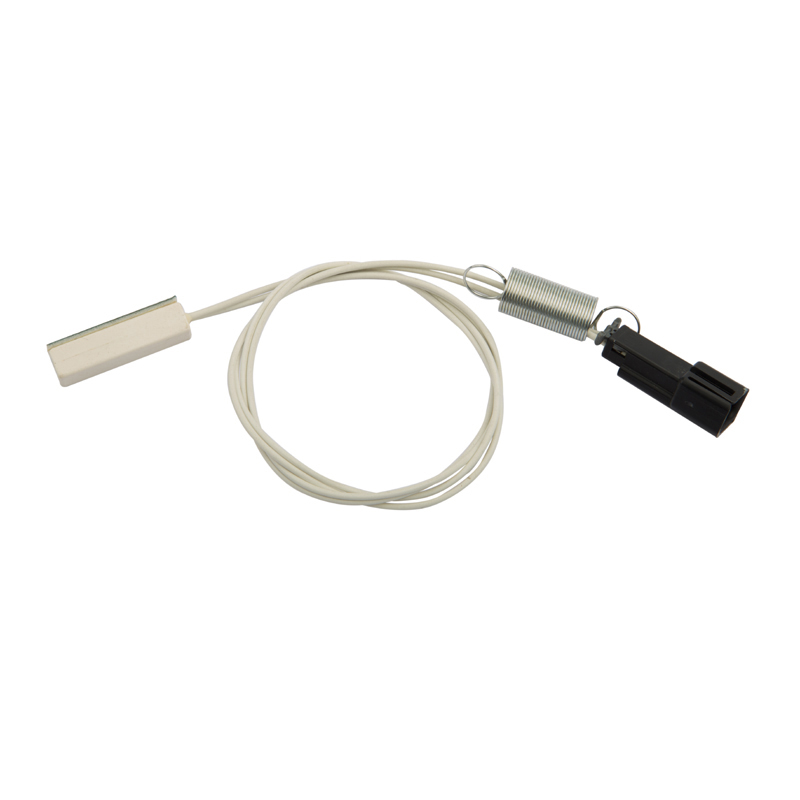

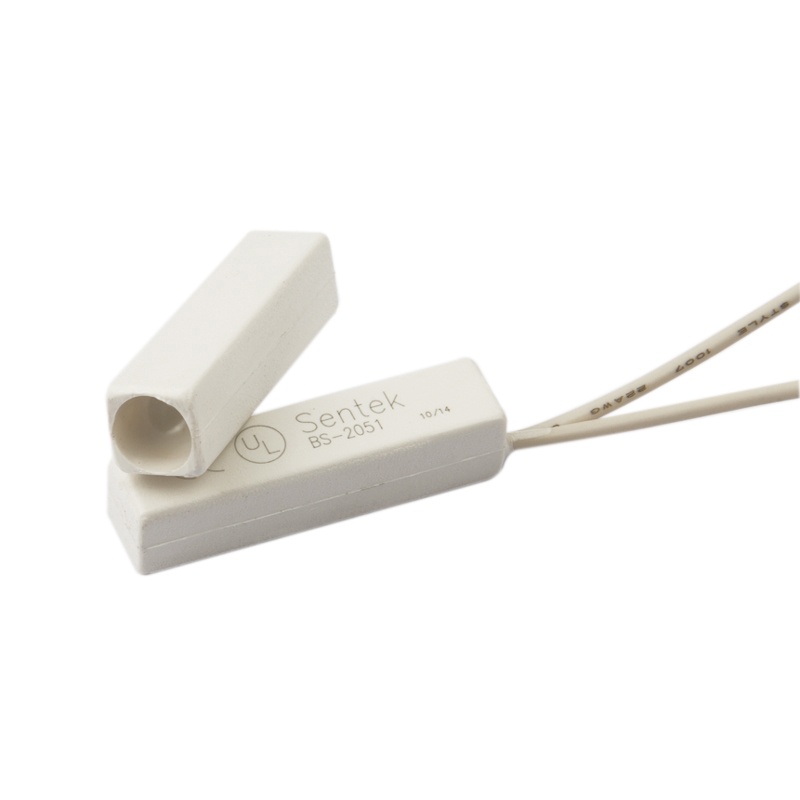

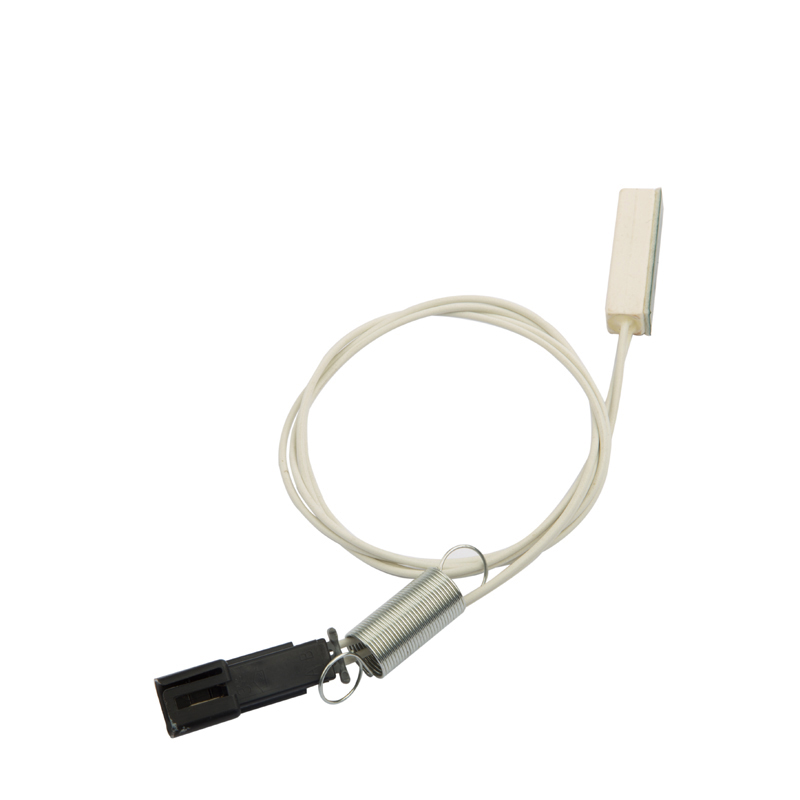

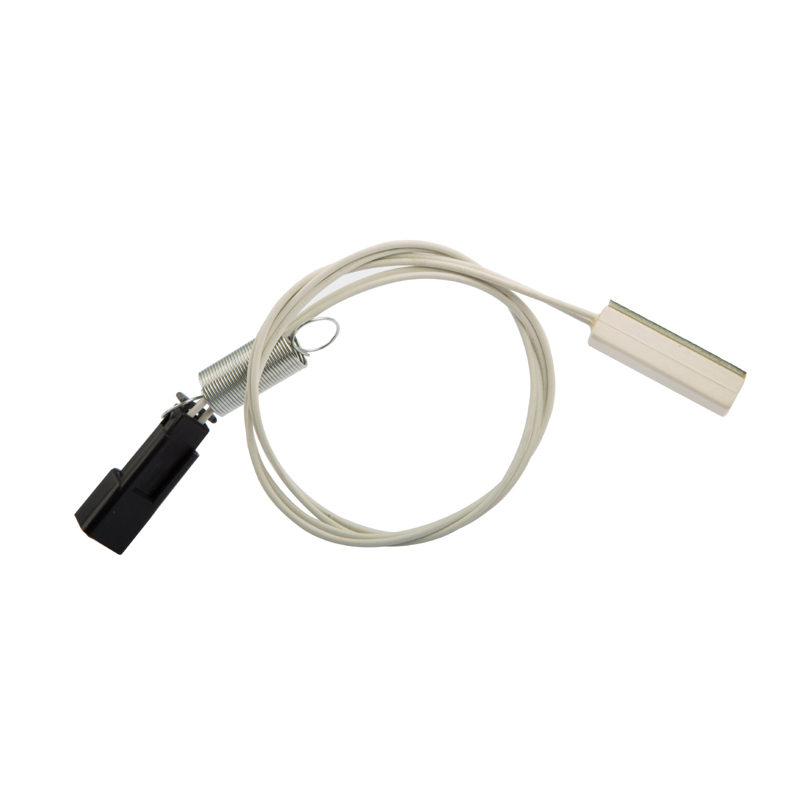

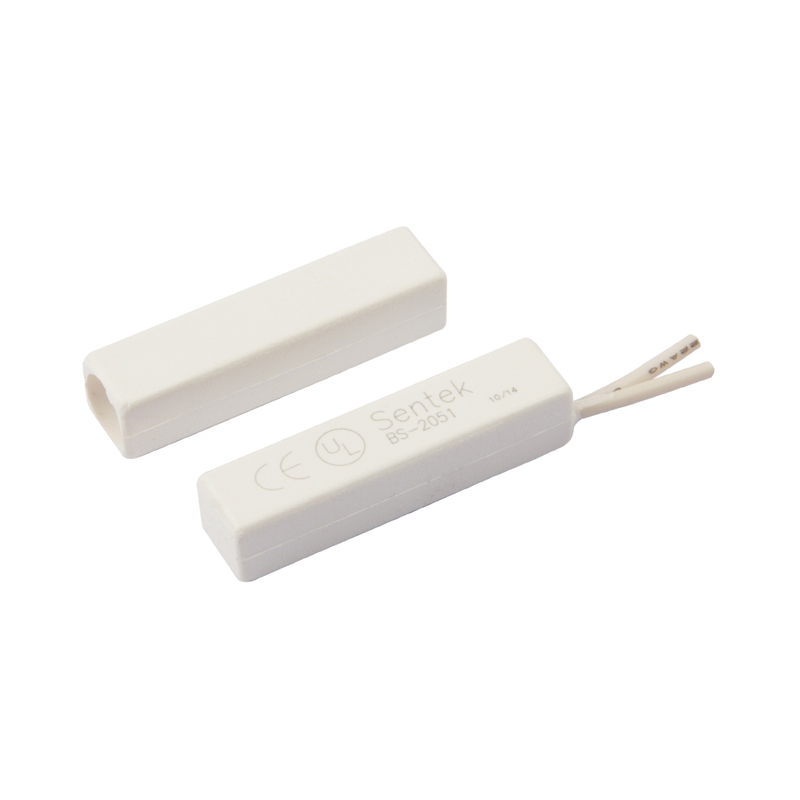

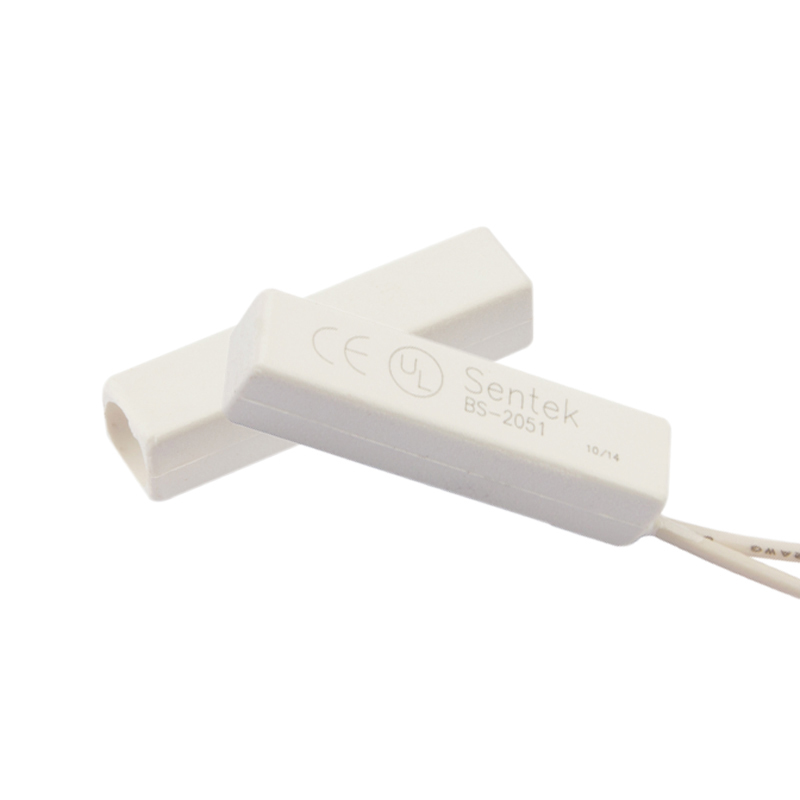

Surface Mounted Magnetic Switch Sensor Door Contacts BS2051

Stick surface mount
Super special adhesive
Standard 18" #22AWG leads
Speical leads available
Resistor, Diode and Supervisory Loop available on request
Colors: White, Brown, Grey

  • BS-2051
  • Sentek


BS-2051 Series

Stick surface mount

Super special adhesive

Standard 18" #22AWG leads

Speical leads available

Resistor, Diode and Supervisory Loop available on request

Colors: White, Brown, Grey

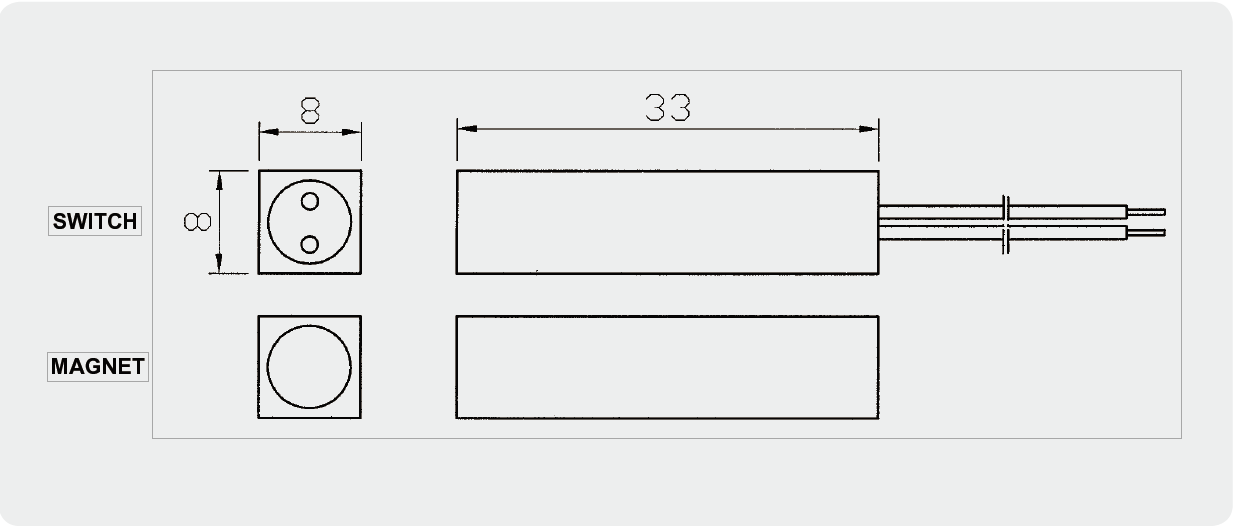

Dimension (mm)

2051

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2051

Closed

N/O

1

(25)

1.07

(27)

           0.150       10 100  0.5
BS-2051A Open N/C

0.75

(20)


0.150   3   30 0.2

BS-2051C

Closed

&

Open

SPDT


0.75

(20X)




   0.150         3    30  0.2
