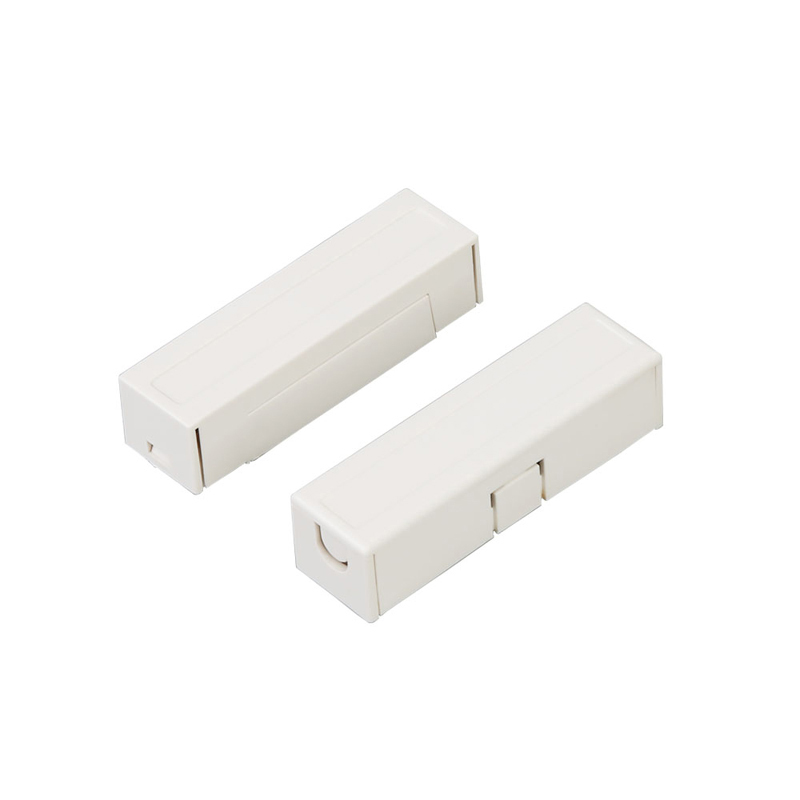

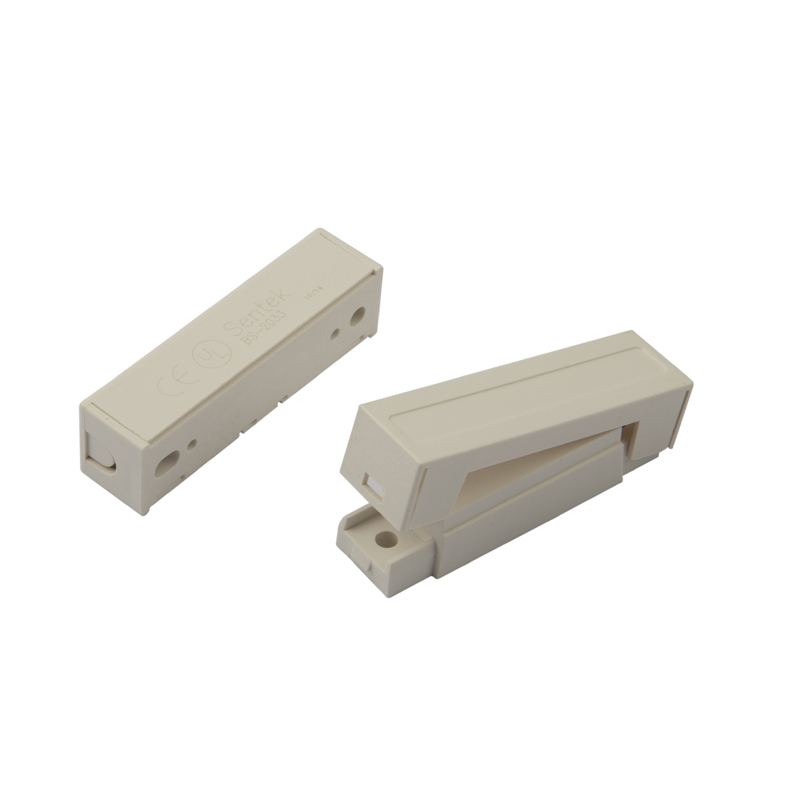

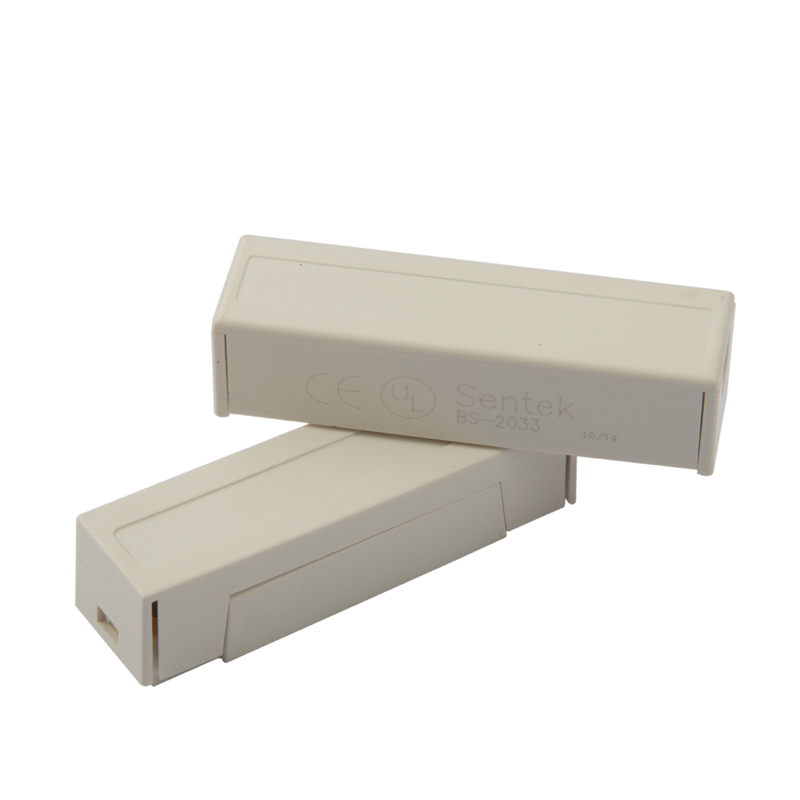

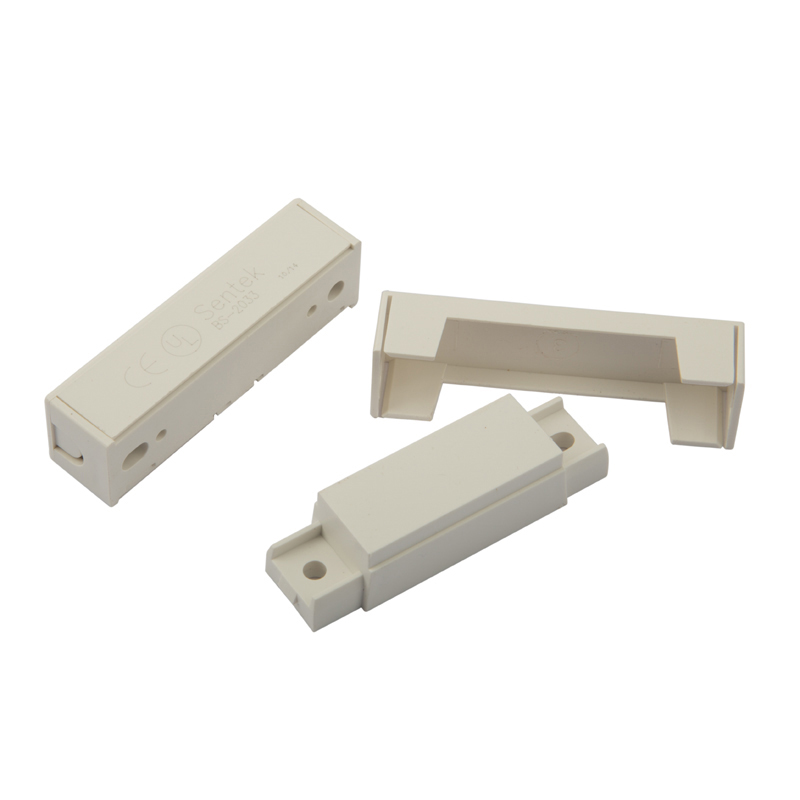

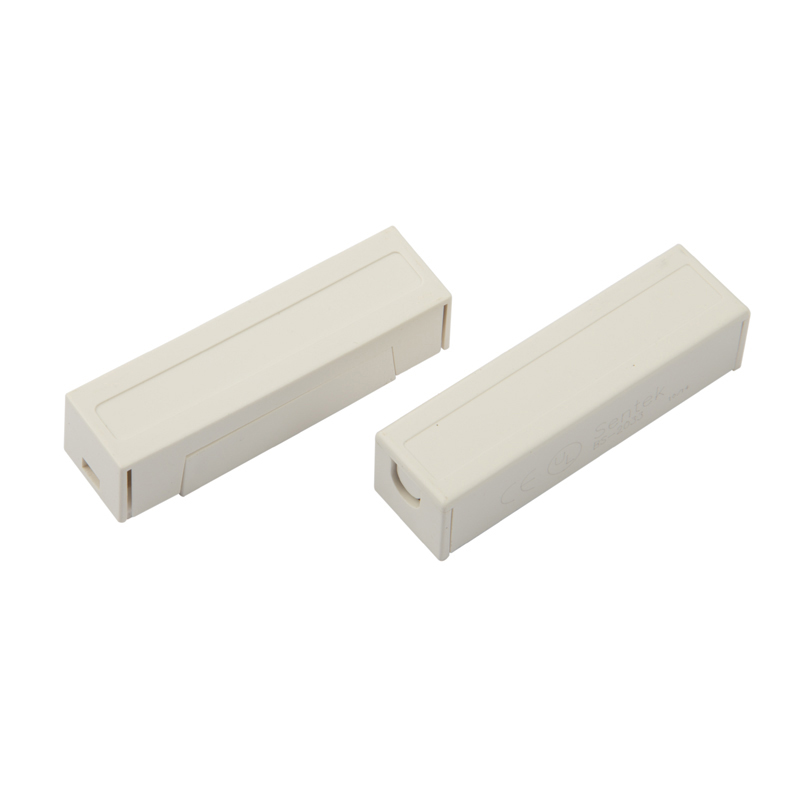

Screw Surface Mount Door Magnetic Contact Sensor BS2033

Screw mount
Attractive cover keeps mounting screws and terminal screws hidden
Concealed or surface wiring
Switches or magnets available seperately

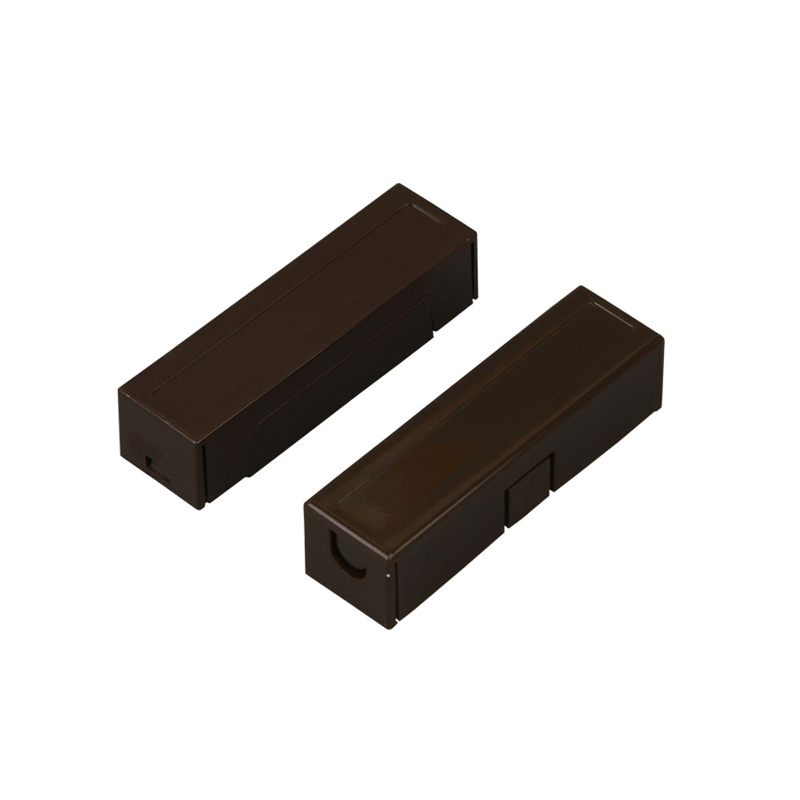

Colors: White, Brown, Grey

  • BS-2033
  • Sentek


BS-2033 Series

Screw mount

Attractive cover keeps mounting screws and terminal screws hidden

Concealed or surface wiring

Switches or magnets available seperately

Colors: White, Brown, Grey

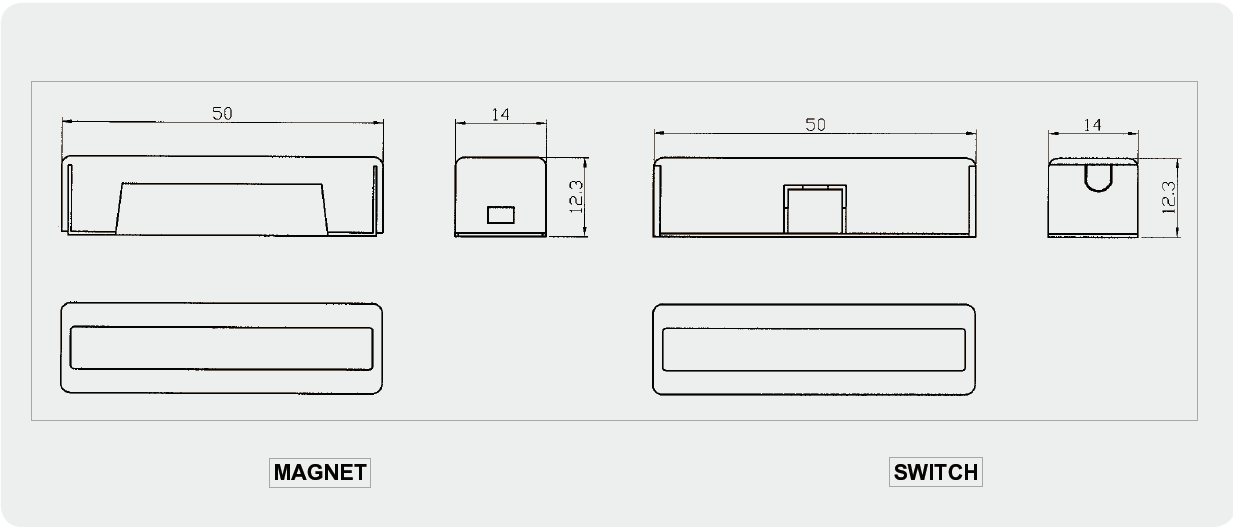

Dimension (mm)

2033

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2033

Closed

N/O

1.2

(29)

1.4 (36)            0.150       10 100  0.5
BS-2033A Open N/C

1

(25)


0.150   3   30 0.2

BS-2033C

Closed&

Open

SPDT


1

(25)




   0.150         3    30  0.2
