Availability: | |
---|---|
SD-628
Sentek
Product summary

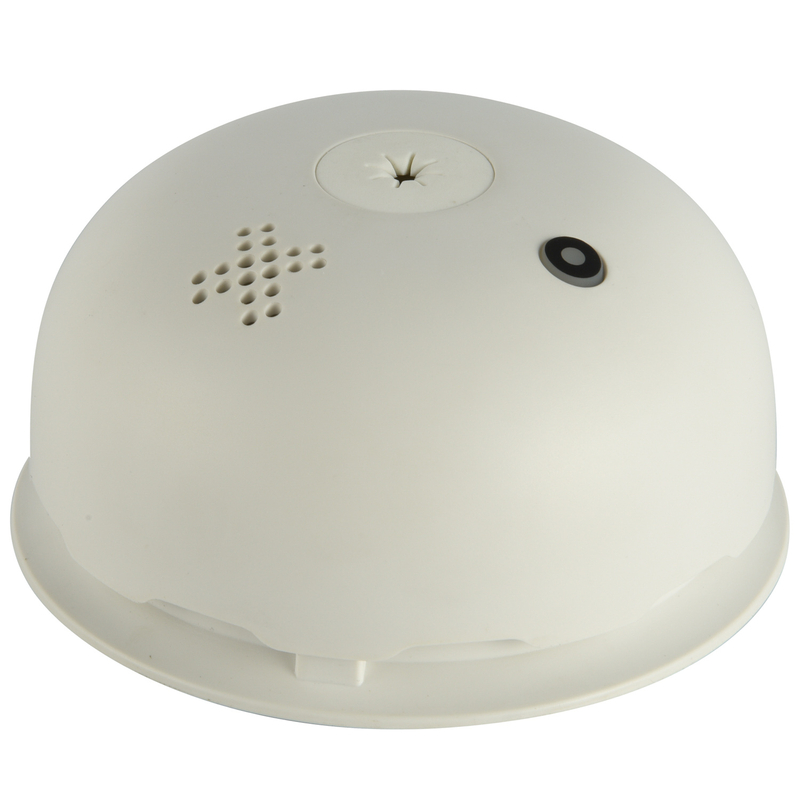

SD628 is a smoke alarm designed to be installed on the ceiling, wall, and suspended lamps. When there is a fire and the smoke enters into the smoke chamber, the alarm indicator will flash and send out a strong audible signal to remind the user that a fire has occurred. In addition, the product has self-test,hush, alarm memory, low-battery fault and end-of-life fault function to ensure the alarm is in the proper service. The battery is sealed in the smoke alarm and does not need to be replaced. The product has low power consumption and can be worked for 10 years.

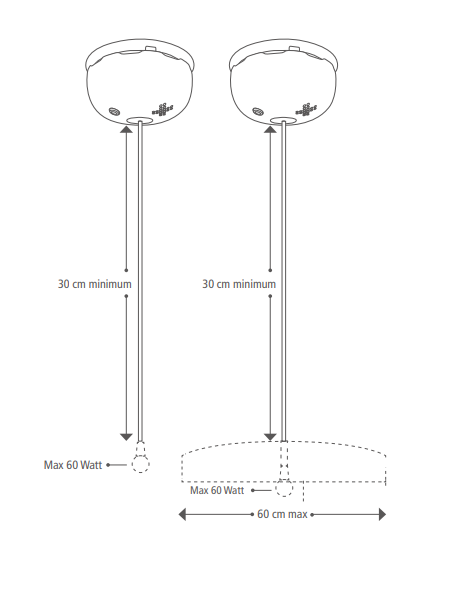

• Can be configured as the suspended lamp base.
• Battery no need to replace, can be used for 10 years.
• Hush function, to hush the buzzer for 8 minutes when there is a false alarm. After a short “beep” the alarm is hushed with indicator flashes twice every second.
• Fault hush function, to hush the buzzer when there is a low battery fault, end-of life fault or internal fault. After a long beep, the alarm will not send fault sound for 24 hours.
• Low battery fault function, if battery is low power, the alarm sends a short beep with indicator flashes once every 48 seconds
• End-of-life fault function, if alarm has worked for 10 years, it sends two short beeps with indicator flashes twice every 48 seconds.
• Internal fault function, if the chamber is degenerated or polluted, the alarm sends three short beeps with the indicator flashes three times.
Part No . | Power Type | Description |
SD628 | 9V Battery | Photoelectric smoke detector |
Product type | Photoelectric |
Supply Voltage | 135 ℉ ( 57°C) (for detector with heat sensor only) |
Battery | Lithium battery sealed for 10 year life |
Quiescent current | <3uA |
Alarm Current | <45mA |
Temperature Range | 0°C to 45°C |
Smoke sensitivity | 0.08~0.13dB/m |
Ambient humidity | 10% ~ 90% |
Alarm sound level | > 85 dB at 3 meters |
Conform to | EN 14604:2005/AC2008 |

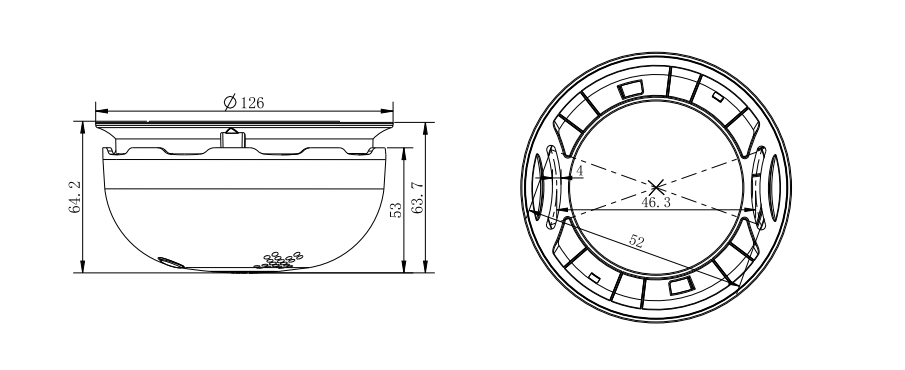

Dimension | 64.2mm (H) x 126mm (D) |
Weight | 176.5g (with mounting plate) |
Product summary
SD628 is a smoke alarm designed to be installed on the ceiling, wall, and suspended lamps. When there is a fire and the smoke enters into the smoke chamber, the alarm indicator will flash and send out a strong audible signal to remind the user that a fire has occurred. In addition, the product has self-test,hush, alarm memory, low-battery fault and end-of-life fault function to ensure the alarm is in the proper service. The battery is sealed in the smoke alarm and does not need to be replaced. The product has low power consumption and can be worked for 10 years.
• Can be configured as the suspended lamp base.
• Battery no need to replace, can be used for 10 years.
• Hush function, to hush the buzzer for 8 minutes when there is a false alarm. After a short “beep” the alarm is hushed with indicator flashes twice every second.
• Fault hush function, to hush the buzzer when there is a low battery fault, end-of life fault or internal fault. After a long beep, the alarm will not send fault sound for 24 hours.
• Low battery fault function, if battery is low power, the alarm sends a short beep with indicator flashes once every 48 seconds
• End-of-life fault function, if alarm has worked for 10 years, it sends two short beeps with indicator flashes twice every 48 seconds.
• Internal fault function, if the chamber is degenerated or polluted, the alarm sends three short beeps with the indicator flashes three times.
Part No . | Power Type | Description |
SD628 | 9V Battery | Photoelectric smoke detector |
Product type | Photoelectric |
Supply Voltage | 135 ℉ ( 57°C) (for detector with heat sensor only) |
Battery | Lithium battery sealed for 10 year life |
Quiescent current | <3uA |
Alarm Current | <45mA |
Temperature Range | 0°C to 45°C |
Smoke sensitivity | 0.08~0.13dB/m |
Ambient humidity | 10% ~ 90% |
Alarm sound level | > 85 dB at 3 meters |
Conform to | EN 14604:2005/AC2008 |
Dimension | 64.2mm (H) x 126mm (D) |
Weight | 176.5g (with mounting plate) |
