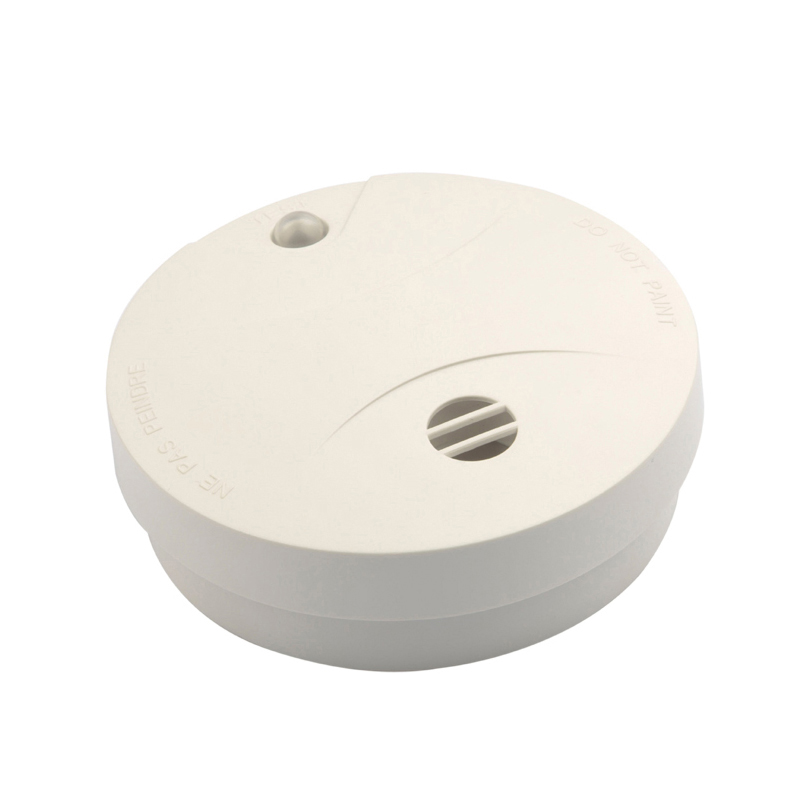

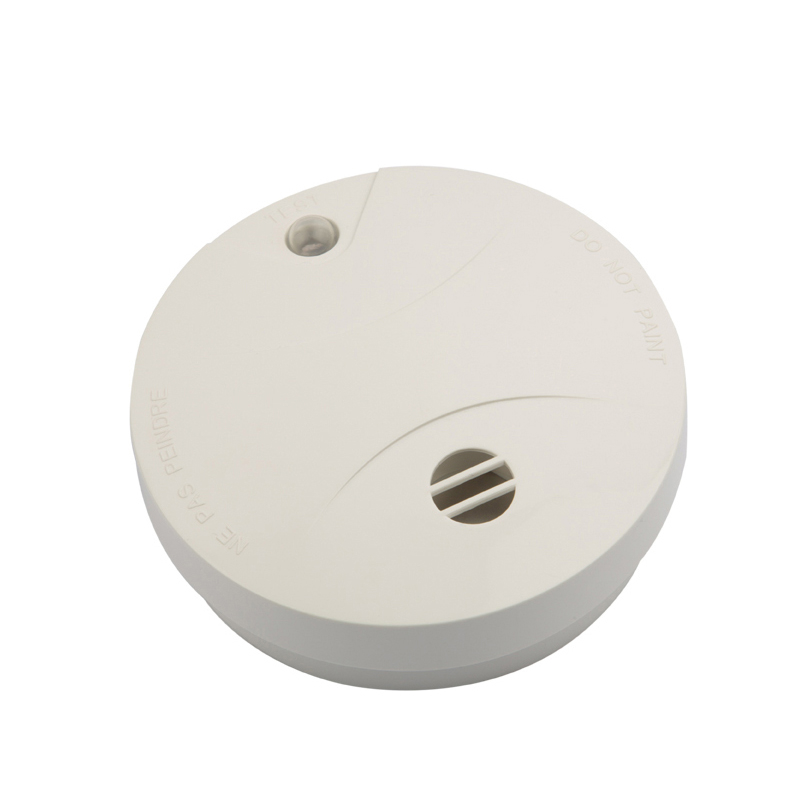

SD-218
Sentek
Stand-alone Detectors
SD218 series photoelectric smoke detectors are designed in accordance with EN14604:2005 and manufactured under the best quality control. The SD218 series alarm are adopted the reliability UL-certificated infrared components. The SD218 series alarm also act as a smoke sensor and/or a 135 o F heat detector at the same location.
• Photoelectric sensing technology
• Sleek low-profile housing design
• Low-sensitivity warning
• Low-battery warning
• Battery case at the back of a detector for easy removal of a battery
• SMD circuit board design-satisfactory quality and reliability guaranteed
• Test button verifies battery and alarm operation
• Sounding a loud alarm signal of exceeding 85db in alarm mode
• Easy installation and maintenance
• Five-year limited warranty
Part No . | Power Type | Description |
| SD218 | 9V Battery | Photoelectric smoke detector |
| SD218-I | 9V Battery | Smoke detector, Inter-connectable (up to 38 units) |
| SD218-A-I | AC 220V/230V | AC powered photoelectric smoke detector, Inter-connectable (up to 38 units) |
| SD218-A-B-I | AC 110V/220V/230V with 9V Green cell Battery backup | AC powered photoelectric smoke detector, Inter-connectable (up to 38 units) with battery backup |
| SD218H | 9V Battery | Smoke cum Heat combined detector |
| SD218H-I | 9V Battery | Smoke cum heat combined detector, Inter-connectable (up to 38 units) |
| SD218H-A-I | AC 110V/220V/230V | AC powered photoelectric smoke cum heat combined detector, Inter-connectable (up to 38 units) |
| SD218H-A-B-I | AC 110V/220V/230V with 9V Battery backup | AC powered photoelectric smoke cum heat combined detector, Inter-connectable (up to 38 units), with battery backup |
Smoke Sensitivity | 2.26+/-1.21%/FT Obscuration (UL standard) , 0.08~0.15dB/m (EN standard) |
Heat Threshold | 135 ℉ ( 57°C) (for detector with heat sensor only) |
Battery Availability | 15months ( carbon-zinc ); 3 years (Alkaline); 10 years (Lithium) |
Standby Current | 8μA |
Alarm Current | 15mA |
Temperature Range | 0°C to 50°C |
Humidity | 0 to 95% RH, no condensation or icing |
Alarm Sound Level | 85 db/3m |
