RS01

• 2 part magnetically operated
• proximity sensor
• UL listed reed switch
• Customer defined sensitivity
• Choice of cable length
Availability:
  • RS-01

  • Sentek


RS01 Series

Features

• 2 part magnetically operated

• proximity sensor

• UL listed reed switch

• Customer defined sensitivity

• Choice of cable length


Benefits

• Quick and easy to install

• No standby power requirement

• Operates through non-ferrous materials such as wood, plastic or aluminum

• Hermetically sealed, magnetically

• operated contacts continue to operat long after optical and other

• technologies fail due to contaminatior


Applications

• Position and limit sensing

• Security

• Level sensing

• Linear actuators

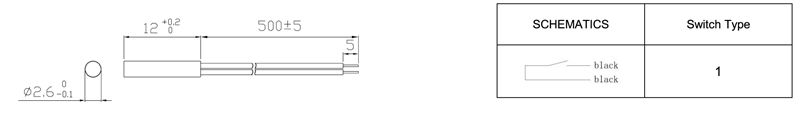

DIMENSIONS mm


RS01-1

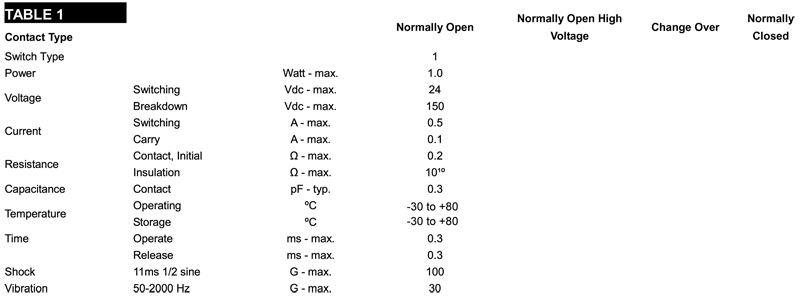

CUSTOMER OPTIONS- Switching Specifications


RS01-2


CUSTOMER OPTIONS-Sensitivity, Cable Length and Termination Specifications


RS01-3

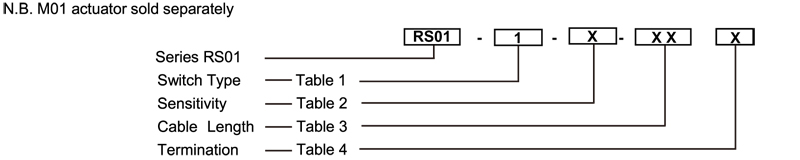

Ordering Information

RS01-4


Certificate


证书
