PS-070-DC

• Used to control the Direct Current load,like DC LED lights for door of wardrobe in bedroom,hotel,etc.
• Flame-resistant PBT cases and high temperature resistant UL1430 wires.
• Standard 18" #20AWG Leads, Special leads upon request.
• Adjustable installation position.
• 15mm operation gap.
• Large load capacity with MOSFET.


PS-070-DC Series


• Used to control the Direct Current load,like DC LED lights for door of wardrobe in bedroom,hotel,etc.

• Flame-resistant PBT cases and high temperature resistant UL1430 wires.

• Standard 18" #20AWG Leads, Special leads upon request.

• Adjustable installation position.

• 15mm operation gap.

• Large load capacity with MOSFET.


Specifications


Operation gap

15mm Min.

Circuit type


Normal open when closed: PS-070-DC-1

Normal closed when closed: PS-070-DC-4

Contact Rating

50W Max. (Continuous switching frequency≤0.1Hz)

Operating Voltage

3~ 28VDC

Operating Current

2.2A Max. (The wires should not be overheated)

Insulating Voltage

1500VDC (Between case and wire)

Switching cycles

1 million times

Operating Temperature

-15~ +65°C

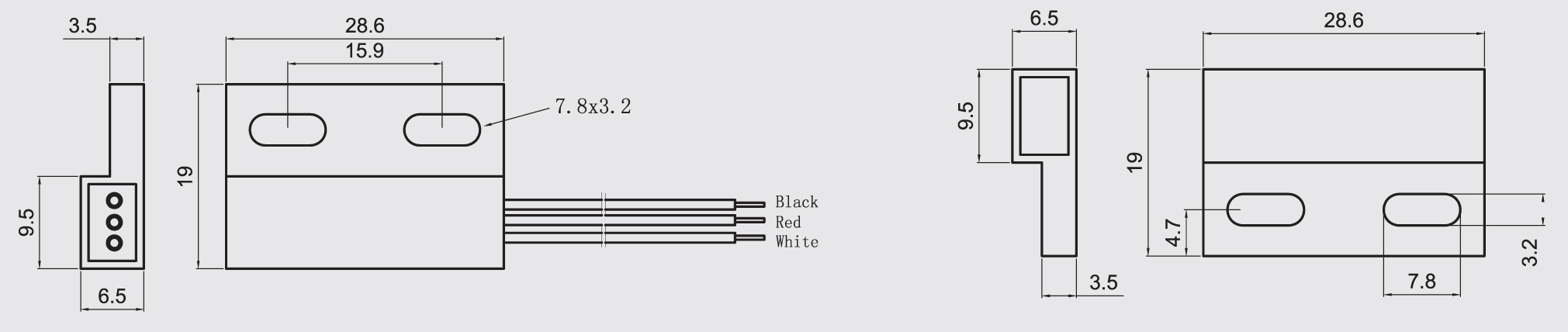

Dimensions(mm):


PS-070-1

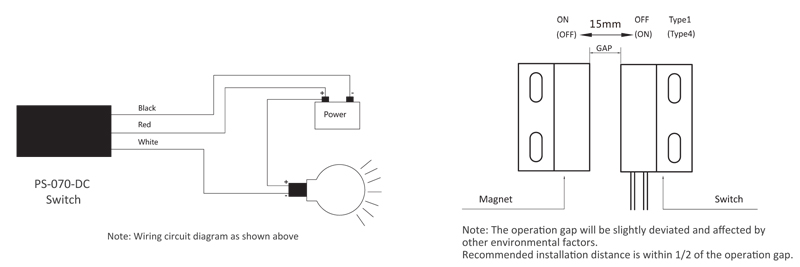

Wiring and Operation


PS-070-2
