• Sleek low-profile housing design
• Low-battery warning
• Battery case at the back of a detector for easy removal of a battery
• SMD circuit board design-satisfactory quality and reliability guaranteed
• Test button verifies battery and alarm operation
• Sounding a loud alarm signal of exceeding 85db in alarm mode
• Easy installation and maintenance
• Five-year limited warranty
Stand-alone Detectors

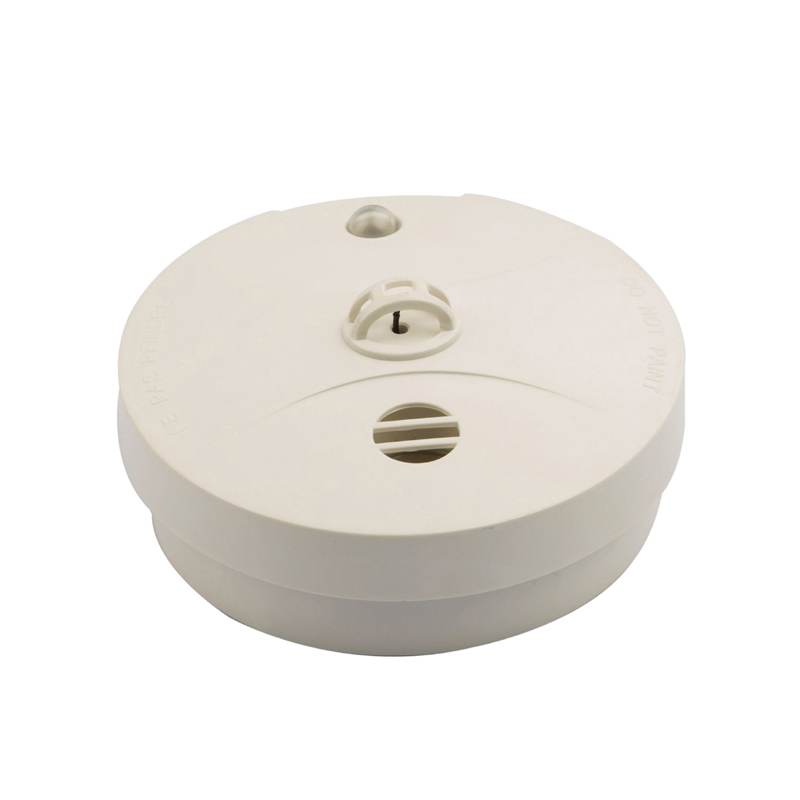

HD232 series heat detectors are designed in accordance with BS 5446-2 and manufactured under the best quality control, which provide fast and reliable response for heat 57°C (135°F) or Rate-of-Rise detection.
• Sleek low-profile housing design
• Low-battery warning
• Battery case at the back of a detector for easy removal of a battery
• SMD circuit board design-satisfactory quality and reliability guaranteed
• Test button verifies battery and alarm operation
• Sounding a loud alarm signal of exceeding 85db in alarm mode
• Easy installation and maintenance
• Five-year limited warranty
Part No . | Power Type | Description |
| HD232 | 9V Green cell Battery | Heat detector |
| HD232-l | 9V Green cell Battery | Heat detector, interconnection function (up to 38 units) |
| HD232-A-l | AC 220V/230V | AC photoelectric smoke detector, Interconnection function (up to 38 units) |
| SD232-A-B-l | AC 110V/220V/230V with 9V Green cell Battery backup | AC photoelectric smoke detector, Interconnection function (up to 38 units) with battery backup |
| HD232H-l | 9V Green cell Battery | Smoke and detector, interconnection function (up to 38 units) |
| HD232H-A-B-l | AC 110V/220V/230V with 9V Green cell Battery backup | AC Photoelectric smoke and detector, Interconnection Function , (up to 38 units) with battery backup |
Smoke Sensitivity | 57°C (135°F) fixed temperature and Rate-of-Rising |
Battery Availability | 18months |
Standby Current | 8μA |
Alarm Current | 15μA |
Temperature Range | 0°C to 50°C . |
Humidity | 0 to 95% RH, no condensation or icing |
Alarm Sound L evel | 85 db/3m |
