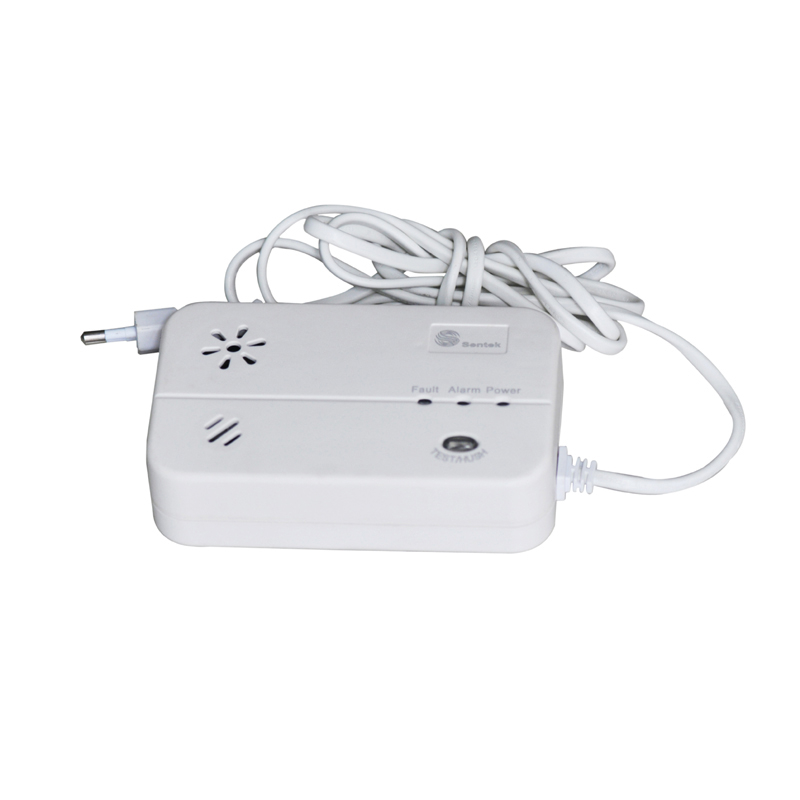

Gas Detector
GD768 series detectors is effective for detecting any buildup of natural gas and liquefied(propane)
gas, The detector ideal for use in residential occupancies and recreational vehicles(RVS). The
detector comply with UL1484 and EN50194 standard, not suitable for industial or commercial use.
• To detect combustible gas (NG, LPG)
• Comply with UL1484 or EN50194 standards
• Figaro semiconductor sensor heads with UL approval for gas detection
• Loud 85dB sound signal at alarm mode
• Advanced detection and discrimination algorithms
• Easy installation and maintenance
• SMD circuit board design
• With test/Hush button
• Five-year limited warranty
TYPE | POWER | GAS | FUNCTION | ||
| RELAY | Interconnected | LCD | |||
| GD-768A1L | AC 100V-110V | LPG | |||
| GD-768A1LR | AC 100V-110V | LPG | ■ | ||
| GD-768A1LI | AC 100V-110V | LPG | ■ | ||
| GD-768A1LC | AC 100V-110V | LPG | ■ | ||
| GD-768A1LRC | AC 100V-110V | LPG | ■ | ■ | |
| GD-768A1LIC | AC 100V-110V | LPG | ■ | ■ | |
| GD-768A1N | AC 100V-11V | NG | |||
| GD-768A1NR | AC 100V-11V | NG | ■ | ||
| GD-768A1NI | AC 100V-110V | NG | ■ | ||
| GD-768A1NC | AC 100V-110V | NG | ■ | ||
| GD-768A1NRC | AC 100V-110V | NG | ■ | ■ | |
| GD-768A1NIC | AC 100V-110V | NG | ■ | ■ | |
| GD-768A2L | AC 220V-240V | LPG | |||
| GD-768A2LR | AC 220V-240V | LPG | ■ | ||
| GD-768A2LI | AC 220V-240V | LPG | ■ | ||
| GD-768A2LC | AC 220V-240V | LPG | ■ | ||
| GD-768A2LRC | AC 220V-240V | LPG | ■ | ■ | |
| GD-768A2LIC | AC 220V-240V | LPG | ■ | ■ | |
| GD-768A2N | AC 220V-240V | NG | |||
| GD-768A2NR | AC 220V-240V | NG | ■ | ||
| GD-768A2NI | AC 220V-240V | NG | ■ | ||
| GD-768A2NC | AC 220V-240V | NG | ■ | ||
| GD-768A2NRC | AC 220V-240V | NG | ■ | ■ | |
| GD-768A2NIC | AC 220V-240V | NG | ■ | ■ | |
| GD-768DL | DC 12V-24V | LPG | |||
| GD-768DLR | DC 12V-24V | LPG | ■ | ||
| GD-768DLI | DC 12V-24V | LPG | ■ | ||
| GD-768DLC | DC 12V-24V | LPG | ■ | ||
| GD-768DLRC | DC 12V-24V | LPG | ■ | ■ | |
| GD-768DLIC | DC 12V-24V | LPG | ■ | ■ | |
| GD-768DN | DC 12V-24V | NG | |||
| GD-768DNR | DC 12V-24V | NG | ■ | ||
| GD-768DNI | DC 12V-24V | NG | ■ | ||
| GD-768DNC | DC 12V-24V | NG | ■ | ||
| GD-768DNRC | DC 12V-24V | NG | ■ | ■ | |
| GD-768DNIC | DC 12V-24V | NG | ■ | ■ | |
Unit Dimensions | 136mm (L) x 83 mm (W)x46 mm (H) |
AC Input Supply Voltage | 110Vor 220V 50/60Hz |
DC Input Supply Voltage | 9 to 26 Volts dc |
Power Consumption | less than 4 Watts |
ALL ALARMS | |
Gases detected | Natural Gas (methane). Natural gas models |
LPG (Propane or Butane). LP gas models | |
Sensing method | Semiconductor sensor |
Range of level alarm | 7 to 13% LEL |
| Audible Alarm Output 85dB at 1m with Red LED | |
| Time to alarm | Less than 25 seconds |
Temperature range | -10° to +40°C |
Ambient Humidity | ≤95% RH |
