GD625 12 to 24V DC White Gas Leak Detector LPG Gas Detector with UL approval

• To detect combustible gas (NG, LPG)
• Sensitivity can be calibrated into either UL2075 or EN50194 standards
• Figaro semiconductor sensor heads with UL approval for gas detection
• Loud 75dB sound signal at alarm mode
• Advanced detection and discrimination algorithms
• Easy installation and maintenance
• Sleek low-profile housing design
• SMD circuit board design
• Magnet test feature
• Power: 12 to 24V DC
• Five-year limited warranty
  • GD-625
  • Sentek


GD625 Series

Gas Detector

GD625 series detectors is effective for detecting any buildup of natural gas and liquefied gas,

ideal for use in commercial properties can be conneted with fire alarm control panel with 2 wire, as a

control unit for operation as part of gas detection. The gas alarm can be mountned in high (for methane

gas) or low (for LPG gas) location.

Product Features

•  To detect combustible gas (NG, LPG)

•  Sensitivity can be calibrated into either UL2075 or EN50194 standards

•  Figaro semiconductor sensor heads with UL approval for gas detection

•  Loud 75dB sound signal at alarm mode

•  Advanced detection and discrimination algorithms

•  Easy installation and maintenance

•  Sleek low-profile housing design

•  SMD circuit board design

•  Magnet test feature

•  Power: 12 to 24V DC

•  Five-year limited warranty

Product Specification


Model

Gas Monitored

2/4 wire

Operating

Voltage

Min Gas

Level for

Alarming

Alarm Sounds

Standby Current

12V /24V


Power

Consumption

Alarm Current

12V/24V

Operating

Temp. (℃)

Humidity Base model

GD625-N

Natural Gas

2

12~24Vdc

Less than

10% LEL

> 80 dB with

Auto-reset

55mA /(12V)

25mA /(24V)


2 W  80mA/50mA

-10 ~ 50

30%-90% P/N854001

GD625-L

Liquefied Gas

2

12~24Vdc

Less than

10% LEL

> 80 dB with

Auto-reset

55mA /(12V)

25mA /(24V)


2 W  80mA/50mA   -10 ~ 50 30%-90% P/N854001

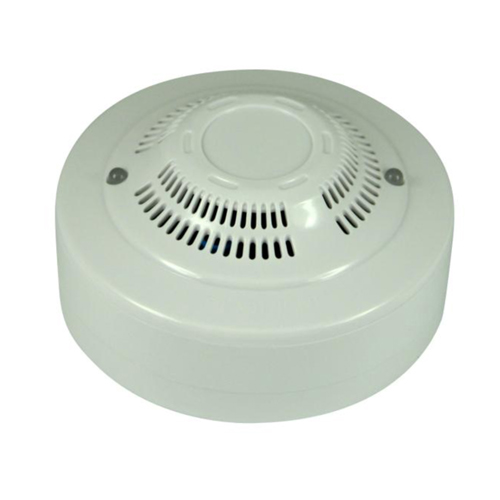

GD625-1
