CF800X Low Price Conventional Fire Alarm System Control Panel

• The CF800X panel is available on 1,2,4 zones.
• Each zone has a maximum capacity of 50 devices.
• It has 3 groups of sounders output circuits each capable of supplying 300mA.
• It has a 24V/300mA auxiliary supply.
• It has a set of fault relay contacts,rated at 0.5A SELV.
• It has the ability to disable any zone,any group of sounder.
• The panel will send a fault signal when there is zone short/open or sounder short/open.
• It has the ability to disconnect the zones and sounders automatically when there is zone short or sounder short.After the short is clear, the zones and sounders will recover.

  • CF-800X
  • Sentek


CF800X Series

CF800X series conventional fre alarm control panel supports 1/2/4 zones and 3 groups of sounders. Each

zone can connect up to 50 smoke detectors, heat detectors, manual call points,etc. All zones and sounders

of the fre alarm system can be disabled. All input and output devices are monitored by the control panel,

and the control panel will automatically disconnect when the zones or sounders are short. The control panel

can provide 24VDC / 300mA power for products that require an additional 24V power supply. The detailed

status indicators clearly show the working status of the control panel and provide the frst fre alarm and

subsequent fre alarm functions. After the control panel sends a fre alarm signal, it can provide up to 120

seconds delay time to confrm whether thereis a real fre alarm. In addition, the control panel also provides

the mains-lost silence function. After confgure the mains-lost silence mode, the control panel will no longer

send a fault signal to remind the user when the main power is lost.

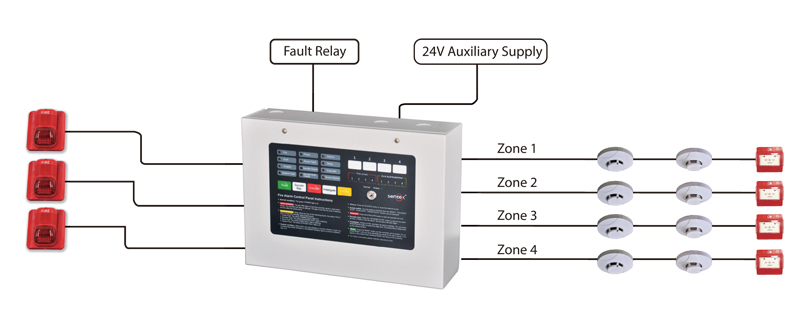

CF800X-1

Product Features

• The CF800X panel is available on 1,2,4 zones.

• Each zone has a maximum capacity of 50 devices.

• It has 3 groups of sounders output circuits each capable of supplying 300mA.

• It has a 24V/300mA auxiliary supply.

• It has a set of fault relay contacts,rated at 0.5A SELV.

• It has the ability to disable any zone,any group of sounder.

• The panel will send a fault signal when there is zone short/open or sounder short/open.

• It has the ability to disconnect the zones and sounders automatically when there is zone short or sounder short.After the short is clear, the zones and sounders will recover.

• It has the sounder start/stop and delay facility (the delay time is 30-120 seconds in 30 seconds increments).

• It has the frst fre alarm and subsequent fre alarm functions.

  The indicator of the frst fre zone is fashing and the subsequentfre zone is lit.

• It has the mains-lost silence function.After confgure the mains-lost silence function,the panel will not send the main power lost fault signal.

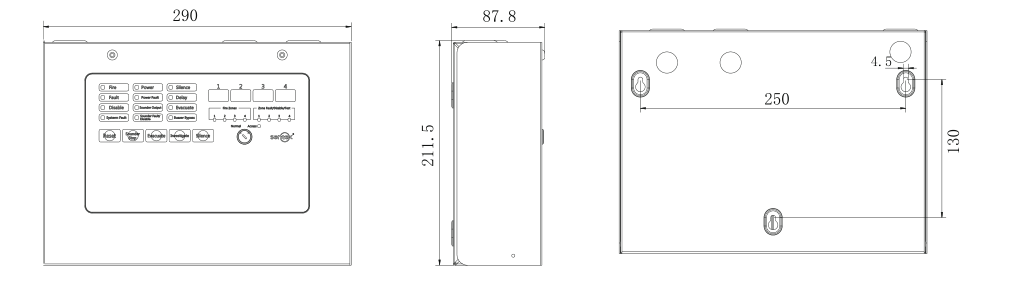

Dimension and installation


CF800X-2


Technical Data


Main power

AC220V± 15%,50Hz/ AC110V± 15%,60Hz

Zone voltage

24v±2V

Number of zones

1,2,4

Zone and sounder end of line resistors

3.9KΩ,1W

Zone monitoring current

<4.5mA

Zone alarm current

>20mA

Zone short current

>110mA

Battery

DC 24V (2 x 12V 3.3Ah)

Sounder alarm output

3 x 300mA (max)/24VDC

Auxiliary Supply

300mA/24V

One set of fault relay contacts

Rated at 0.5A SELV

Humidity

≤95%RH

Dimensions

290 x 87.5 x 211.5mm

weight

2100g (without battery)

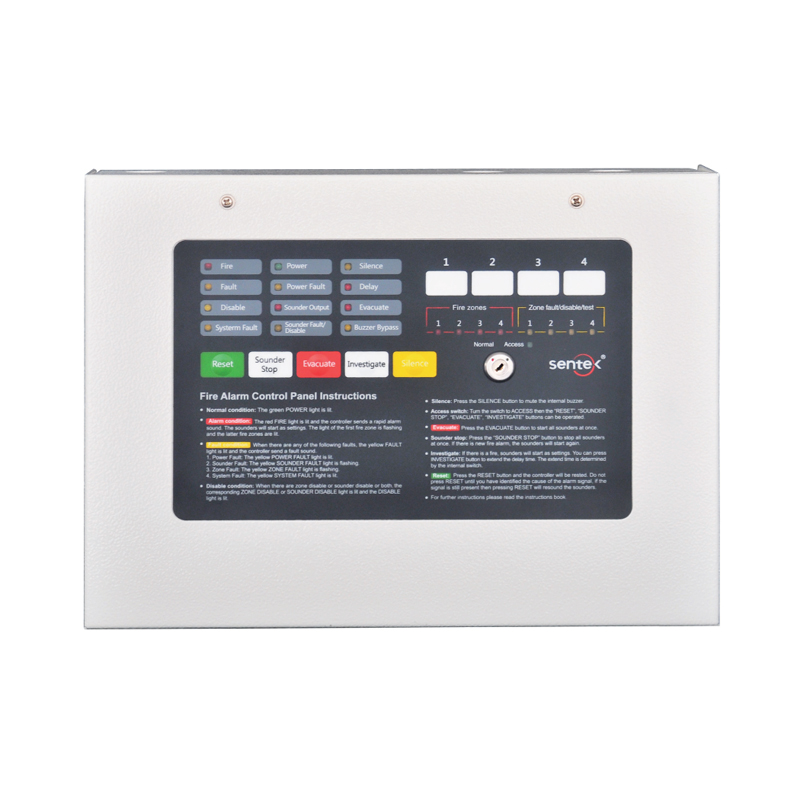

Appearances


CF800X specification_1CF800X

Ordering Information


CF800X  X: 1, 2, 4 Zones  eg. CF8001 1 Zone
