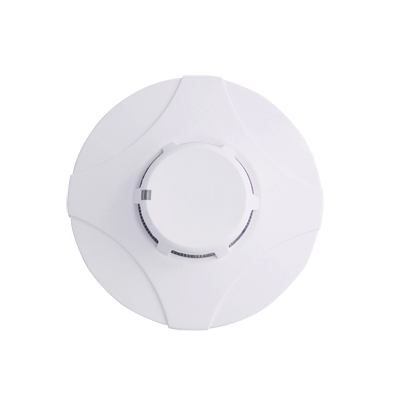

CD-1100
Sentek
CD1100 series is a conventional heat detector, which meets the requirementof class A1R or A1S in EN54-5 standard. It incorporates the professional heat detector ASIC, the circuit is simple and stable. The detector has the intelligent temperature compensation function and has a good response to 60℃ heat or rate-of-rise detection. If the temperature reaches the alarm value, a current signal will be generated between 2 wires and the control panel will be trigged and send the alarm.
• 2 wires heat detector .
• Wide voltage range and stable output.
• Easy installation and maintenance.
• Intelligent temperature compensation and low false alarm.
• Durable sensor head, no need for replacement.
• Five-year limited warranty.
• Beautiful appearance and small size.
• Low cost, high performance.
Sensitivity | Class A1R or A1S |
Working Voltage | 10V~33V |
Standby current | 70~100μA |
Standard | EN54-5:2001 |
Alarm Indicator | LED continuously emitting red light |
Reset Voltage | less than 5 volt |
Reset Time | less than 2 seconds |
Operating Temperature | -10°C to 50°C |
Humidity | 0 to 98%RH, no condensation or icing |
Weight | 91g/set with base |
Dimension | 106mm (dia.) x 35mm (ht.) with base |
Alarm current | CD1100-A1S/A1R: 35mA±2mA at 24V CD1100-A1S/CD1101-A1S: (Suffix S detectors 60℃) |
Classes | CD1100-A1R/CD1101-A1R: (Suffix R detectors＞8.5℃) CD1101-A1S/A1R: 32mA±2mA at 24V |
