CD-1010
Sentek

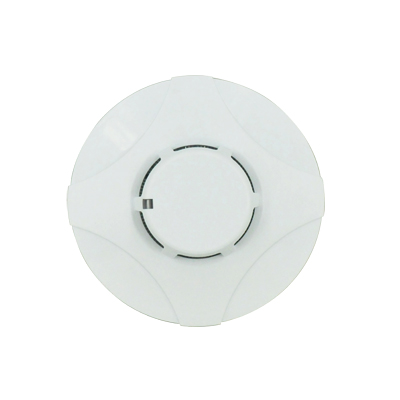

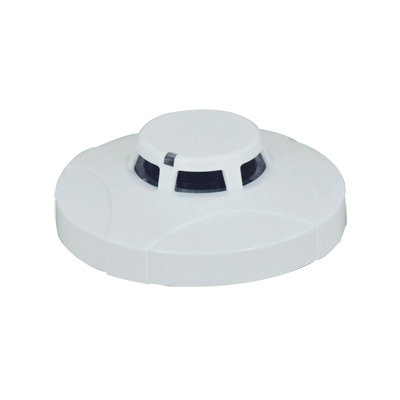

Photoelectric Smoke Detector
CD1010 series is a conventional smoke detector adopting non-polarity 2-Wire technology. The design incorporates a highly integrated 8 bit professional MCU which provides powerful analysis & judgment
capacity and reliability. Through the firmware, the detector can automatically compensate the external environmental parameter changes, synthesize various information, carry on the interference filter, realize quick and accurate fire warning.
• 2-wire .
• Wide voltage range, and stable output.
• Advanced detection and smoothing algorithms.
• Drift compensation.
• Reliable early warning of a fire condition.
• Durable sensor head, no need for replacement.
• Easy installation.
• Sleek low-profile housing design.
• Low cost, high performance.
• Five-year limited warranty.
Smoke Sensitivity | 0.08~0.145dB/m(EN standard) |
Working Voltage | 10V~33V |
Standby current | 70~100μA |
Alarm current | CD1010: 35mA±2mA at 24V CD1011: 32mA±2mA at 24V |
Reset Voltage | less than 5 volt |
Reset Time | less than 2 seconds |
Alarm Indicator | LED continuously emitting red light |
Operating Temperature | -10°C to 55°C |
Storage Temperature | -20°C to 70°C |
Humidity | 0 to 93%RH, no condensation or icing |
Dimension | 106mm (dia.) x 35mm (ht.) with base |
Weight | 96g/set with base |
Standard | EN54-7:2001 |
