BSD-3020 Wired Overhead Sliding Door Switch Window Contact Security Sensor Home Alarm System

Extude aluminum casting for harsh enironment
Wire: #22AWG with 22" armored cable
Longer cable available on request
Optional “ L ” bracket
Resistor, Diode and Supervisory Loop available on request

  • BSD-3020
  • Sentek


BSD-3016 Series

Extude aluminum casting for harsh enironment

Wire: #22AWG with 22" armored cable

Longer cable available on request

Optional “ L ” bracket

Resistor, Diode and Supervisory Loop available on request

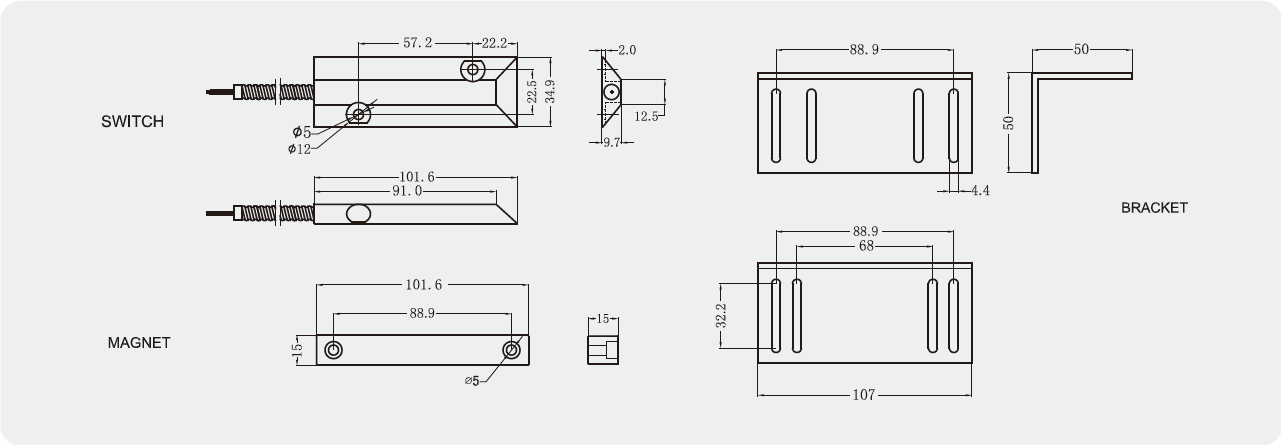

Dimension (mm)

3020

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)


Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BSD-3020

Closed

N/O

2.6

(65)


  2.66(66)          0.150        7.5 100   0.4

BSD-3020

WG

Closed N/O

3(75)

 3.2(81)  0.150  7.5 100 0.4

BSD-3020A

Open N/C

2.5

(65)


0.150 3 30  0.2

BSD-3020C

Closed&

Open

N/C

25

(65)


0.150 3 30  0.2
