BSD-3017 Wired Metal Rolling Gate Shutter Door Sensor Magnetic Contact Security Alarm

Extude aluminum casings for harsh envrionments
Small size
Wire: #22AWG with 22" armored cable
Longer cable available on request
Switches or magnets are available separately
Jacket cable available:BSD-3017-J
Resistor, Diode and Supervisory Loop available on request
Availability:
  • BSD-3017

  • Sentek


BSD-3017 Series

Extude aluminum casings for harsh envrionments

Small size

Wire: #22AWG with 22" armored cable

Longer cable available on request

Switches or magnets are available separately

Jacket cable available:BSD-3017-J

Resistor, Diode and Supervisory Loop available on request

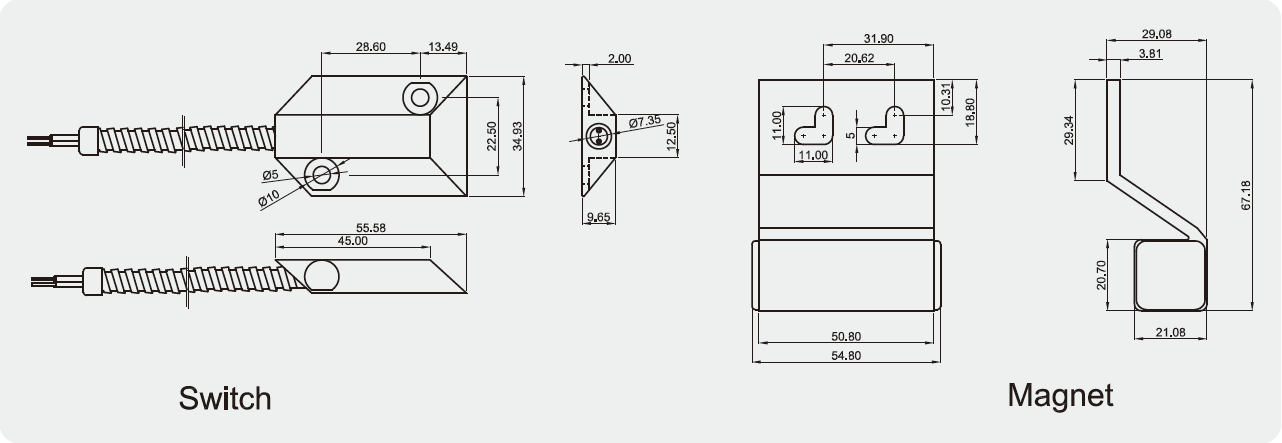

Dimension (mm)

3017

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)


Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BSD-3017

Closed

N/O

2.0

(50)

  2.1(53)              0.20        10 100   0.5

BSD-3017A

Open N/C

2.0

(50)


0.20 3 30  0.2

BSD-3017C

Closed&

Open

SPDT

2.0

(50)


0.20 3 30  0.2
