BSD-3016 Wired Metal Door Window Sensor Magnetic Switch Home Alarm System Normally Closed NC

Designed for panel or sectional style overhead doors
Integrated multi position adjustable magnet bracket
Reversible probe assembly
Left or right installation
22” armored cable, longer available
Hinge design for tighter clamping to track
Self-drilling screws included for easy installation
No special tools required for installation
Availability:
  • BSD-3016
  • Sentek


BSD-3016 Series

Designed for panel or sectional style overhead doors

Integrated multi position adjustable magnet bracket

Reversible probe assembly

Left or right installation

22” armored cable, longer available

Hinge design for tighter clamping to track

Self-drilling screws included for easy installation

No special tools required for installation

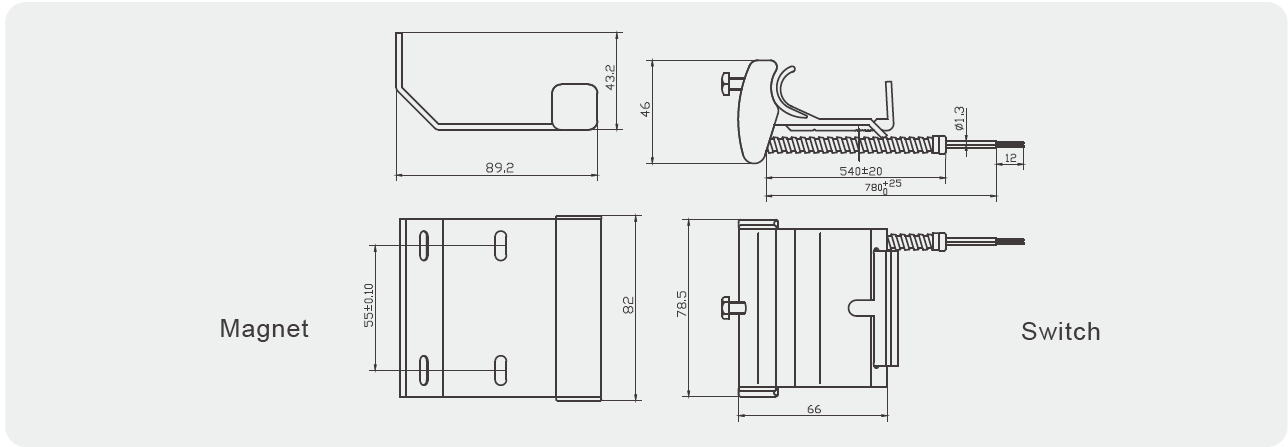

Dimension (mm)

3016

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)


Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BSD-3016

Closed

N/O

2.5

(65)


  2.65(67)                  0.20        10 100   0.5

BSD-3016A

Open N/C

2.2

(55)


0.20 3 30  0.2

BSD-3016C

Closed&

Open

SPDT

2.2

(55)


0.20 3 30  0.2

BSD-3016D

DPDT 2SPDT

2.2

(55)


0.20 3  30 0.2
