BSD-3013
Sentek

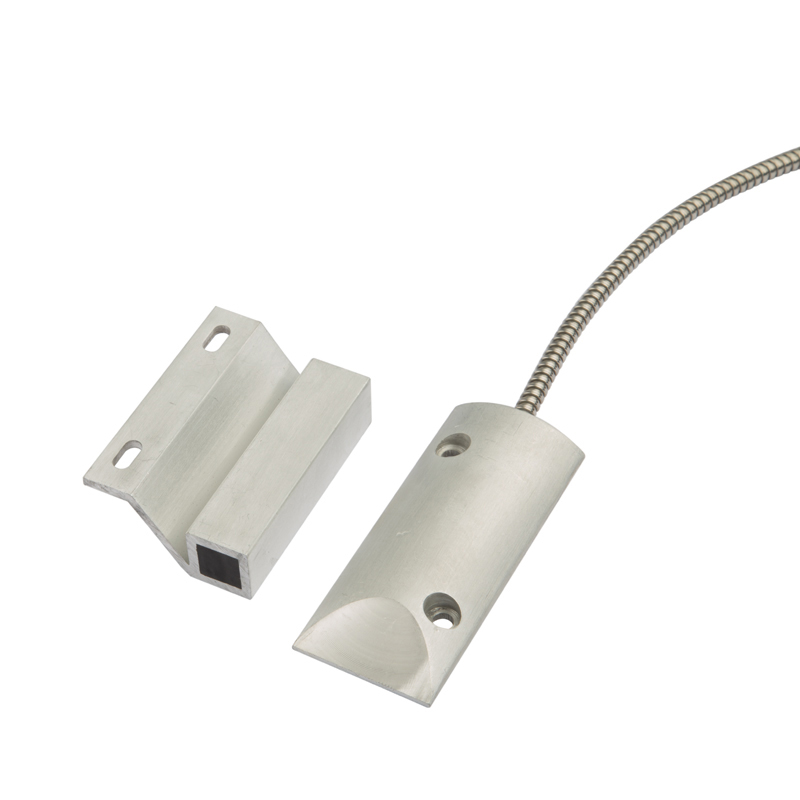

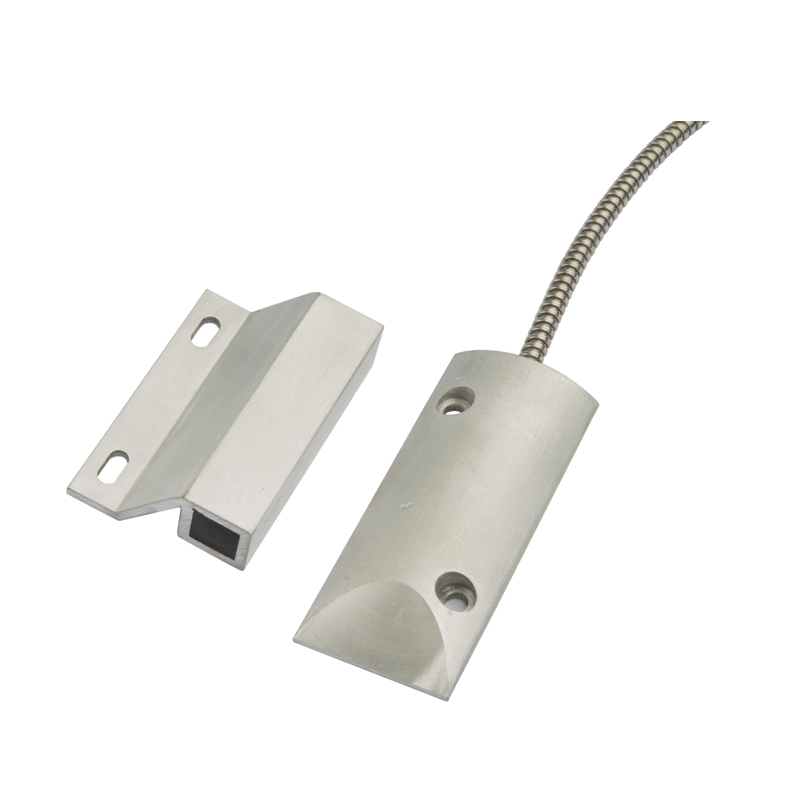

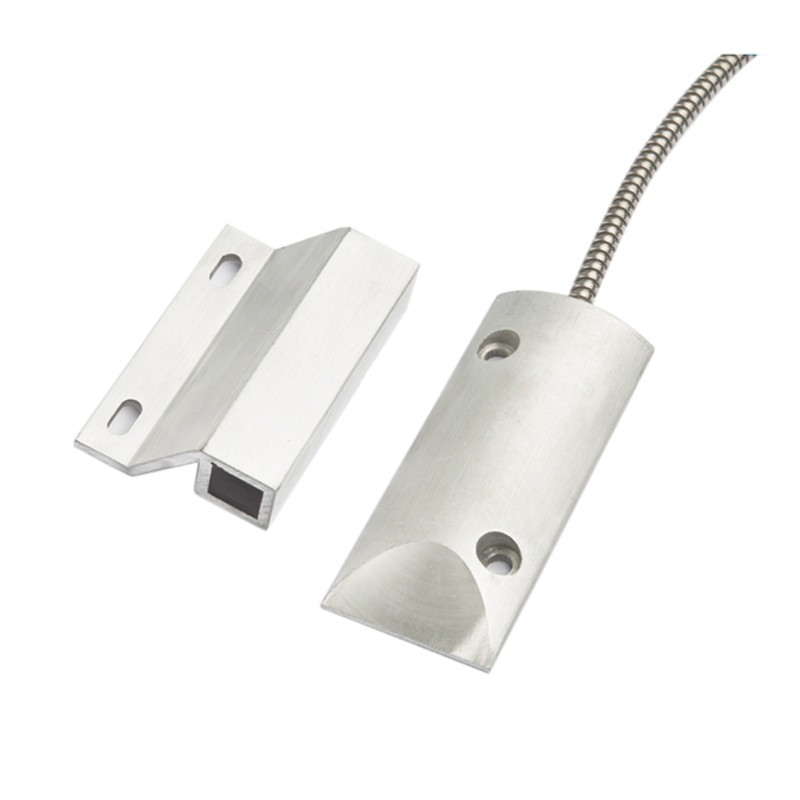

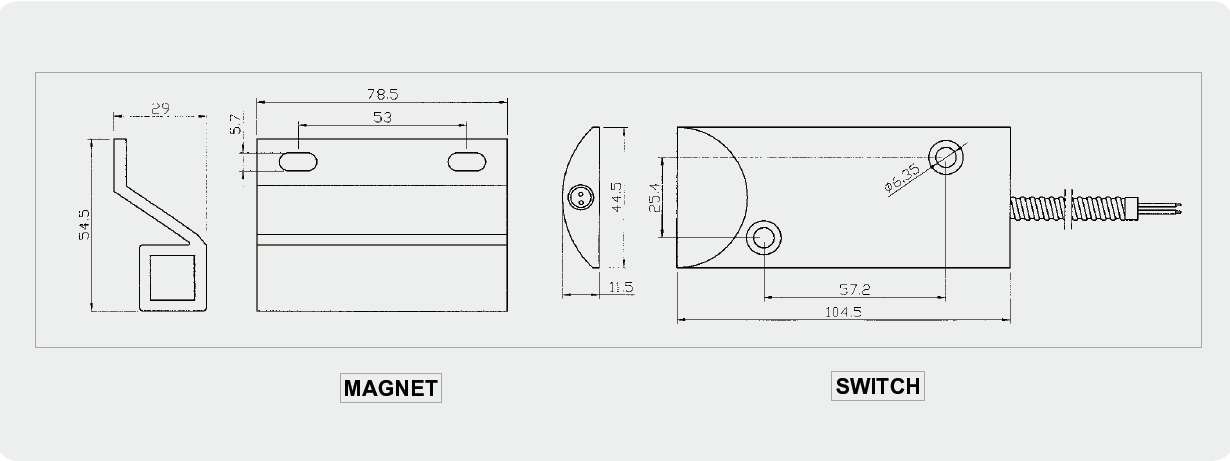

•Miniature floor mount
•Universal magnet for flexibility in mounting
•Extude aluminum casings for harsh environments
•Wire: #22AWG with 22" armored cable
•Longer cable available on request
•Switches or magnets are available separately
•Jacket cable available: BSD3013-JK
•Resistor, Diode and Supervisory Loop available on request
Part Number | Loop Type | Reed Form | Closed Gap Inch(mm) | Depature Gap Inch(mm) | Maximum Initial Contact Resistance (Ohm) | Maximum Contact Rating (W) | Maximum Switching Voltage (VDC/VAC) | Maximum Switching Current (A) |
BSD-3013 | Closed | N/O | 2.5 (65) | 2.8(71) | 0.150 | 7.5 | 100 | 0.4 |
BSD-3013 WG | Closed | N/O | 3(75) | 3.3(83) | 0.150 | 7.5 | 100 | 0.4 |
BSD-3013A | Open | N/C | 2.4 (60) | 0.150 | 3 | 30 | 0.2 | |
BSD-3013C | Closed& Open | SPDT | 2.4 (60) | 0.150 | 3 | 30 | 0.2 | |
BSD-3013D | DPDT | 2SPDT | 2.4 (60) | 0.150 | 3 | 30 | 0.2 |
•Miniature floor mount
•Universal magnet for flexibility in mounting
•Extude aluminum casings for harsh environments
•Wire: #22AWG with 22" armored cable
•Longer cable available on request
•Switches or magnets are available separately
•Jacket cable available: BSD3013-JK
•Resistor, Diode and Supervisory Loop available on request
Part Number | Loop Type | Reed Form | Closed Gap Inch(mm) | Depature Gap Inch(mm) | Maximum Initial Contact Resistance (Ohm) | Maximum Contact Rating (W) | Maximum Switching Voltage (VDC/VAC) | Maximum Switching Current (A) |
BSD-3013 | Closed | N/O | 2.5 (65) | 2.8(71) | 0.150 | 7.5 | 100 | 0.4 |
BSD-3013 WG | Closed | N/O | 3(75) | 3.3(83) | 0.150 | 7.5 | 100 | 0.4 |
BSD-3013A | Open | N/C | 2.4 (60) | 0.150 | 3 | 30 | 0.2 | |
BSD-3013C | Closed& Open | SPDT | 2.4 (60) | 0.150 | 3 | 30 | 0.2 | |
BSD-3013D | DPDT | 2SPDT | 2.4 (60) | 0.150 | 3 | 30 | 0.2 |
