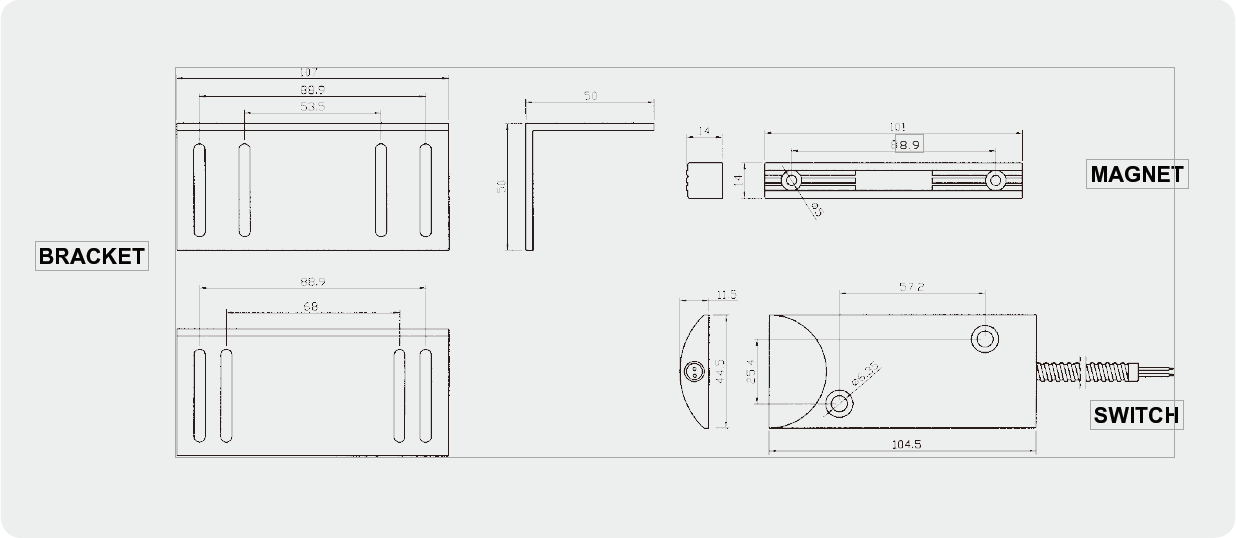

BSD-3012
Sentek
•Extrude aluminum case for harsh environment
•Wire: #22AWG with 22" armored cable
•Longer cable available on request
•Optional “ L ” bracket
•Resistor, Diode and Supervisory Loop available on request
Part Number | Loop Type | Reed Form | Closed Gap Inch(mm) | Depature Gap Inch(mm) | Maximum Initial Contact Resistance (Ohm) | Maximum Contact Rating (W) | Maximum Switching Voltage (VDC/VAC) | Maximum Switching Current (A) |
BSD-3012 | Closed | N/O | 2.5 (65) | 2.8(71) | 0.150 | 7.5 | 100 | 0.4 |
BSD-3012 WG | Closed | N/O | 3(75) | 3.3(83) | 0.150 | 7.5 | 100 | 0.4 |
BSD-3012A | Open | N/C | 2.4 (60) | 0.150 | 3 | 30 | 0.2 | |
BSD-3012C | Closed& Open | SPDT | 2.4 (60) | 0.150 | 3 | 30 | 0.2 | |
BSD-3012D | DPDT | 2SPDT | 2.4 (60) | 0.150 | 3 | 30 | 0.2 |
