BSD-3011 Roller Shutter Sensor, Heavy Duty Overhead Door Contact Sensor

Cast aluminum casting for harsh environment
Wire: #22AWG with 22" armored cable
Longer cable available on request
Optional “ L ” bracket
Resistor, Diode and Supervisory Loop available on request
Availability:
  • BSD-3011

  • Sentek


BSD-3011 Series

Cast aluminum casting for harsh environment

Wire: #22AWG with 22" armored cable

Longer cable available on request

Optional “ L ” bracket

Resistor, Diode and Supervisory Loop available on request

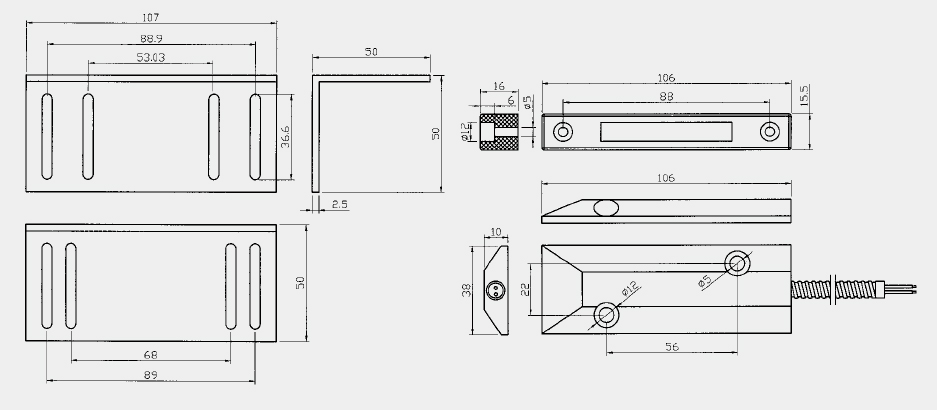

Dimension (mm)

BSD-3011-3

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)


Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BSD-3011

Closed

N/O

2.5

(65)


  2.8(71)          0.150        7.5 100   0.4

BSD-3011

WG

Closed N/O

3(75)

 3.3(83)  0.150  7.5 100 0.4

BSD-3011A

Open N/C

2.5

(65)


0.150 3 30  0.2

BSD-3011C

Closed&

Open

SPDT

2.5

(65)


0.150 3 30  0.2

BSD-3011D

DPDT 2SPDT

2.5

(65)


0.150 3  30 0.2
