BS2036 Wire Magnetic Contact Reed Switch Door Sensor

Screw mount Concealed terminals
Spacers, cover and screws included
Adhesive for magnet included
Switches or magnets available seperately
Resistor, Diode and Supervisory Loop available on request
Colors: White,Brown,Grey,Black

  • BS-2036
  • Sentek


BS-2036 Series

Screw mount Concealed terminals

Spacers, cover and screws included

Adhesive for magnet included

Switches or magnets available seperately

Resistor, Diode and Supervisory Loop available on request

Colors: White,Brown,Grey,Black

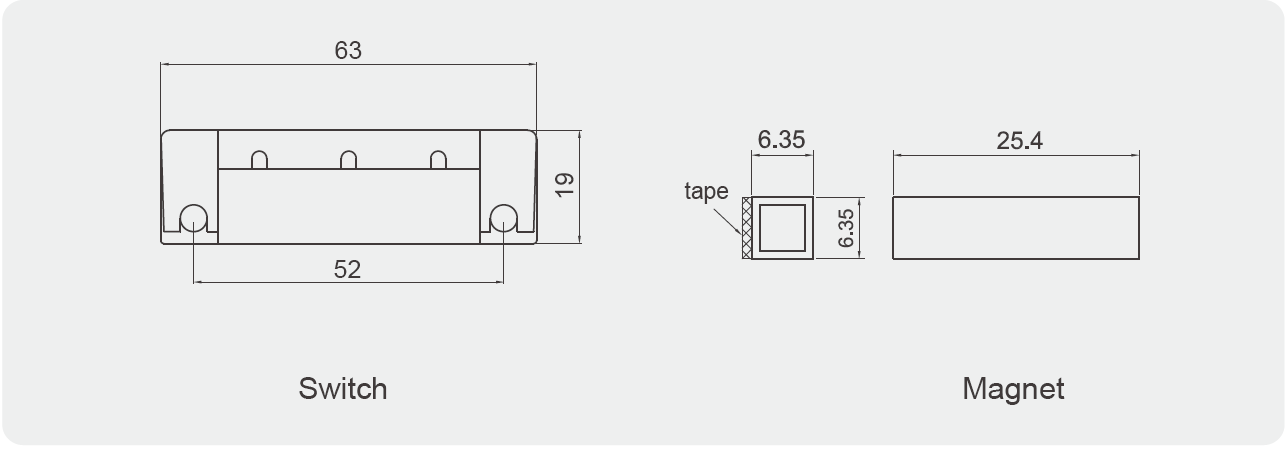

Dimension (mm)

2036

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2036

Closed

N/O

1

(25)

1.05

(27)

       0.20       10 100  0.5
BS-2036A Open N/C

7/8

(22)


0.20   3   30 0.2

BS-2036C

Opne/Closed


SPDT


7/8

(22)




   0.20         3    30  0.2
