BS-2075 Wired home alarm systems security for high qualityMetal Magnetic Contacts Extuder Aluminum Housing Door Contacts

Metal magnetic contacts with extuder aluminum housing
Ideal for commercial application or industrial use
Screws included
Standard 18" #22AWG leads
Armored cable on request (BS-2075AR)
Longer leads available
Resistor, Diode and Supervisory Loop available on request
Colors: Silver or Brown

  • BS-2075
  • Sentek


BS-2075Series

Metal magnetic contacts with extuder  aluminum housing

Ideal for commercial application or industrial use

Screws included

Standard 18" #22AWG leads

Armored cable on request (BS-2075AR)

Longer leads available

Resistor, Diode and Supervisory Loop available on request

Colors: Silver or Brown

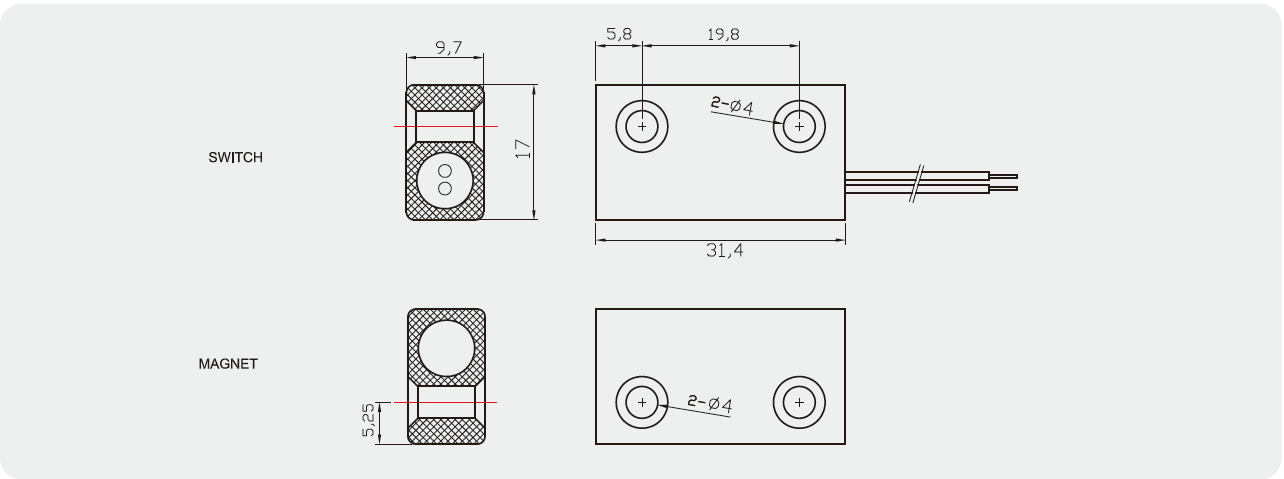

Dimension (mm)

2075

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2075

Closed

N/O

1

(25)

1.2

(27)

   0.150       10 100  0.5

BS-2075A

Open

N/C

0.8

(20)


0.150       3 30  0.2

BS-2075C

Open&

Closed

SPDT

0.8

(20)


0.150       3 30  0.2
