BS-2074 Metal Magnetic Contact Switch for Commercial Application and Industrial

Magnetic contacts
Ideal for commercial application or industrial use
Hermetically sealed with extude aluminum housing for harsh envrionments
Standard 18" #22AWG leads
Longer leads available
Supervisory Loop available on request

  • BS-2074
  • Sentek


BS-2074Series

Magnetic contacts

Ideal for commercial application or industrial use

Hermetically sealed with extude aluminum housing for harsh envrionments

Standard 18" #22AWG leads

Longer leads available

Supervisory Loop available on request

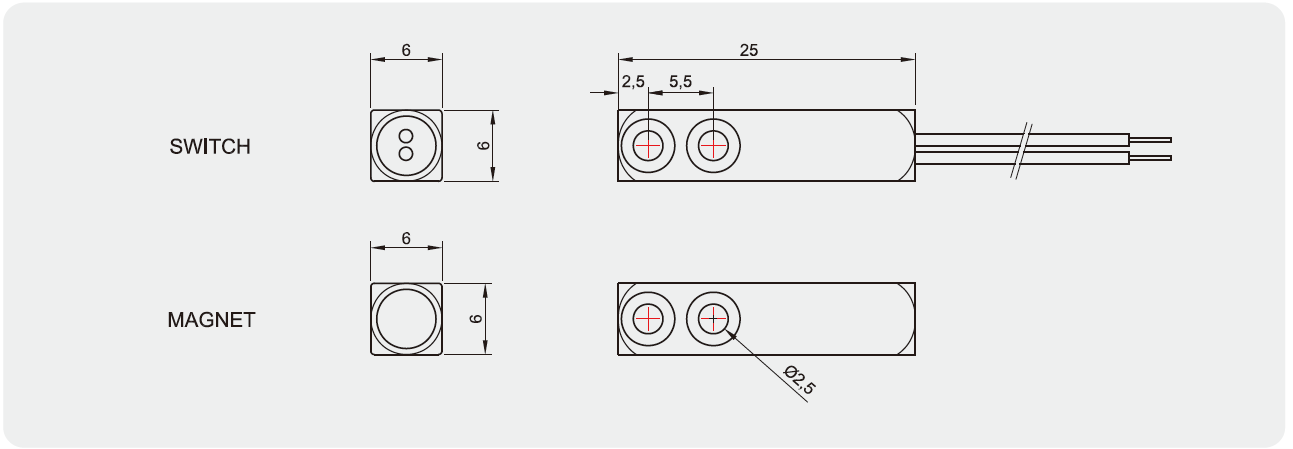

Dimension (mm)

2074

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)


Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(VA)

Maximum

Switching Voltage

(VDC)

Maximum

Switching Current

(A)

BS-2074

Closed

N/O

0.5

(13)

  5/8

     (15)

   0.150   10 100   0.5
