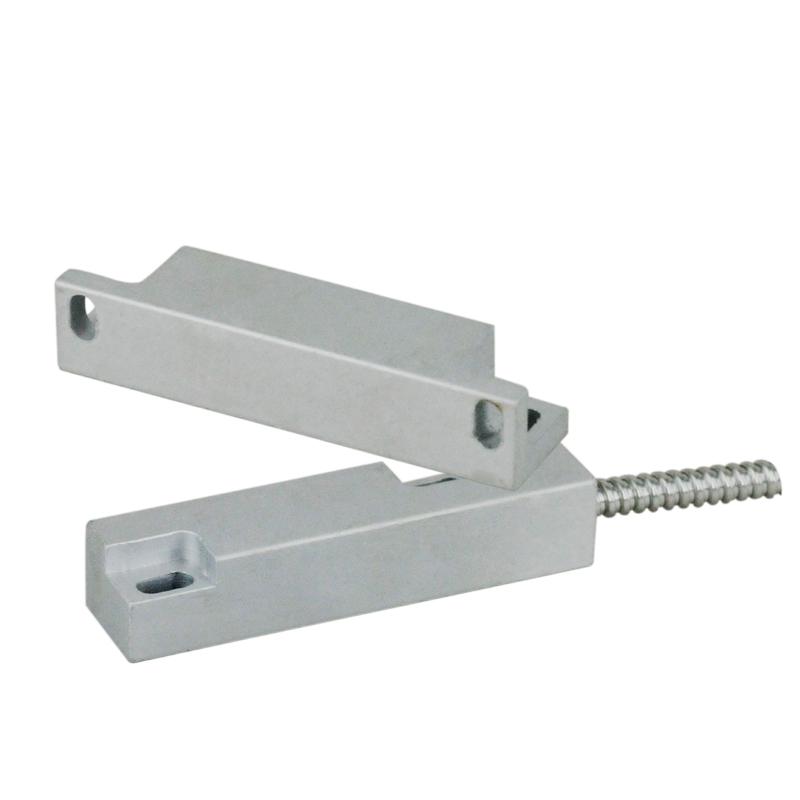

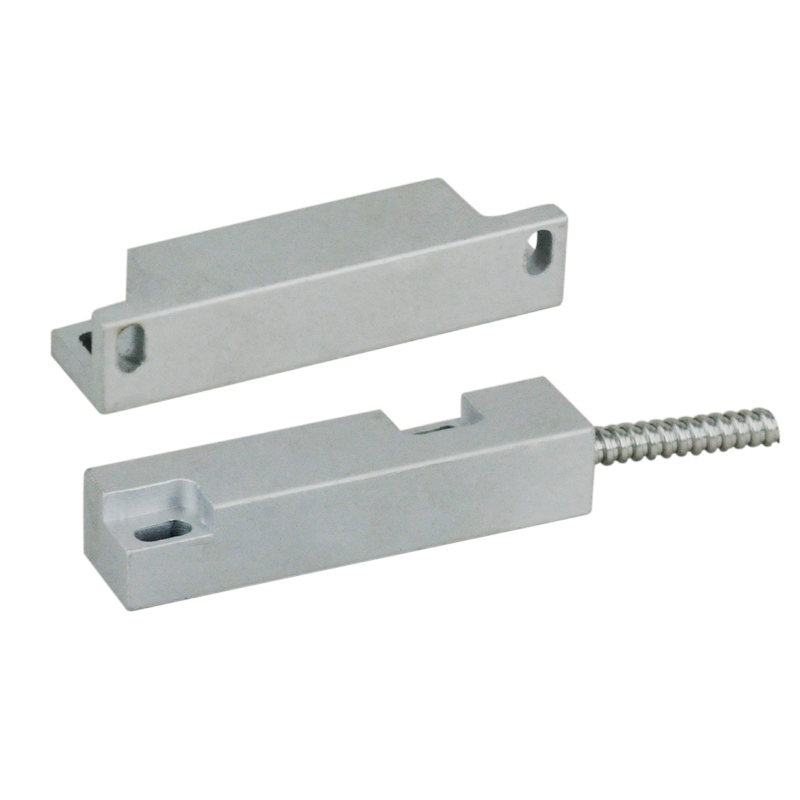

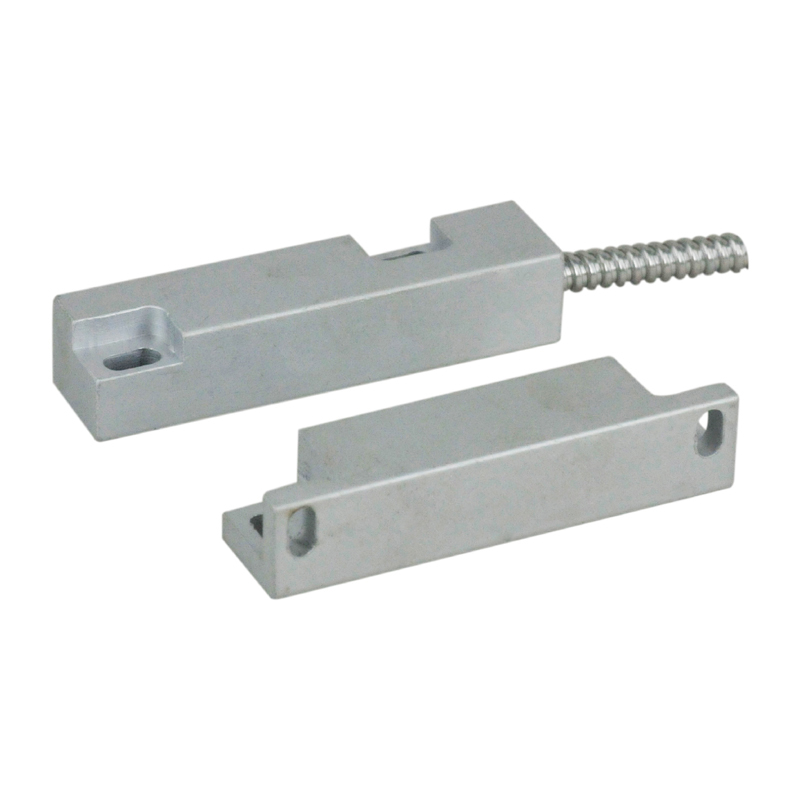

BS-2073AC Wired Metal Rolling Garage Door Switch Magnetic Door Contacts SensorsMetal Magnetic Reed Switch Normally Open Closed NC NO Door Alarm Security

Extude aluminum casings for harsh envrionments
Suitable for switching voltage below 230VAC
Wire: #18AWG with 22" armored cable
Longer cable available on request
Switches or magnets are available separately
Jacket cable available:BS-2073AC-J

  • BS-2073AC
  • Sentek


BS-2073AC Series

Extude aluminum casings for harsh envrionments

Suitable for switching voltage below 230VAC

Wire: #18AWG with 22" armored cable

Longer cable available on request

Switches or magnets are available separately

Jacket cable available:BS-2073AC-J

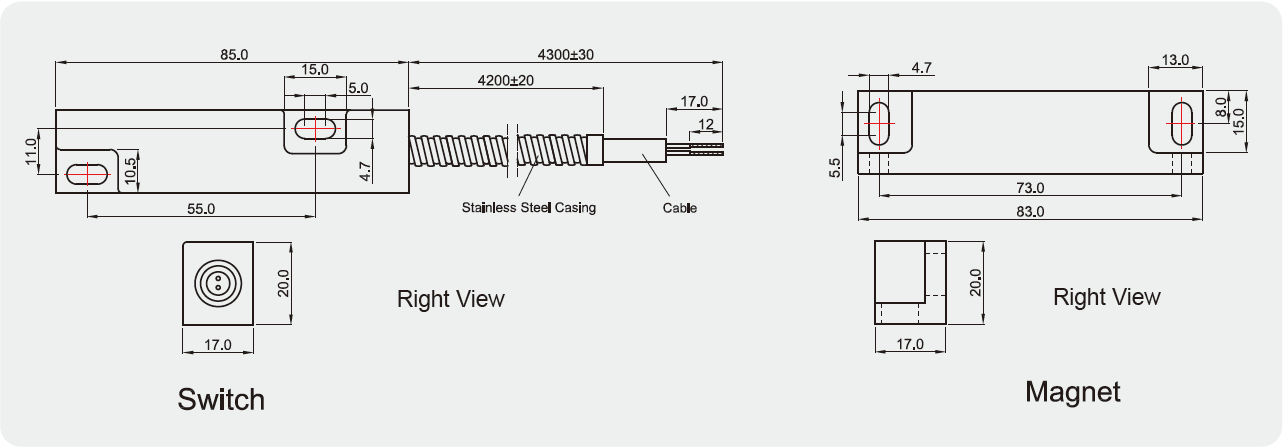

Dimension (mm)

2073AC

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)


Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(VA)

Maximum

Switching Voltage

(VAC)

Maximum

Switching Current

(A)

BS-2073AC

Closed

N/O

0.75

(19)

  0.8(21)      500      500 230   4
