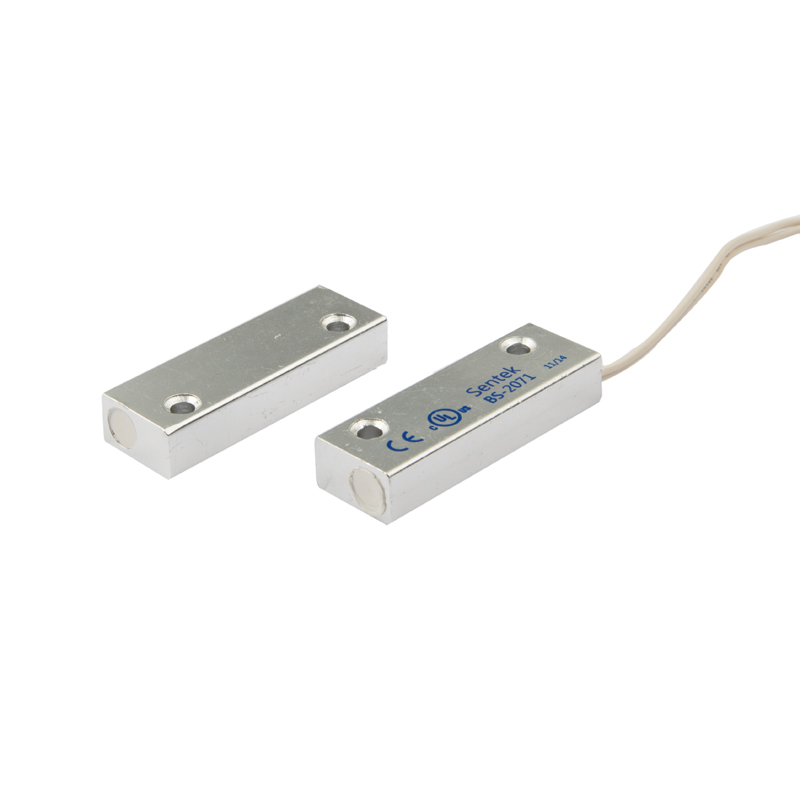

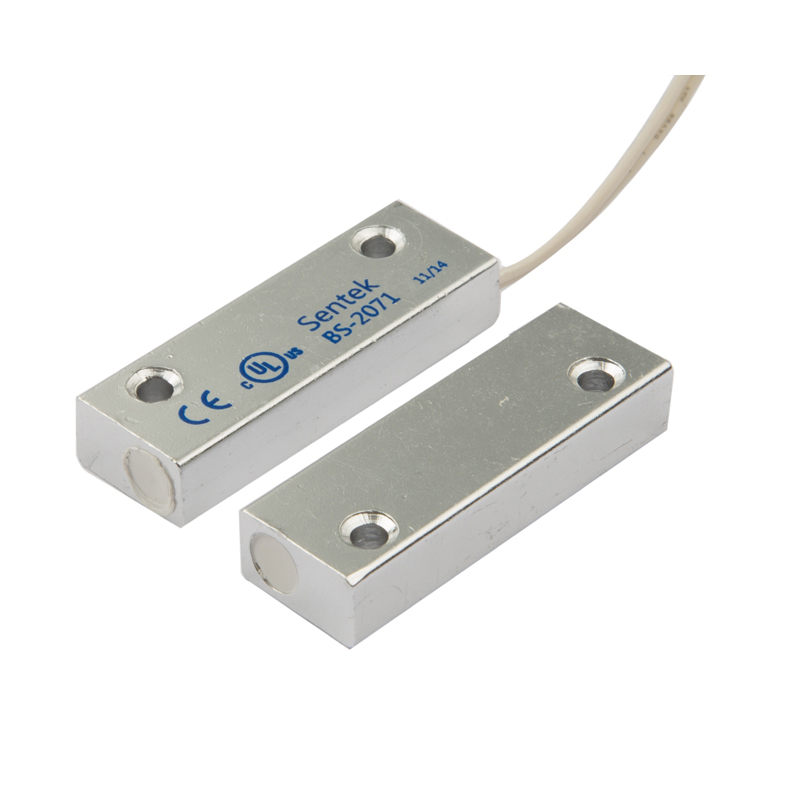

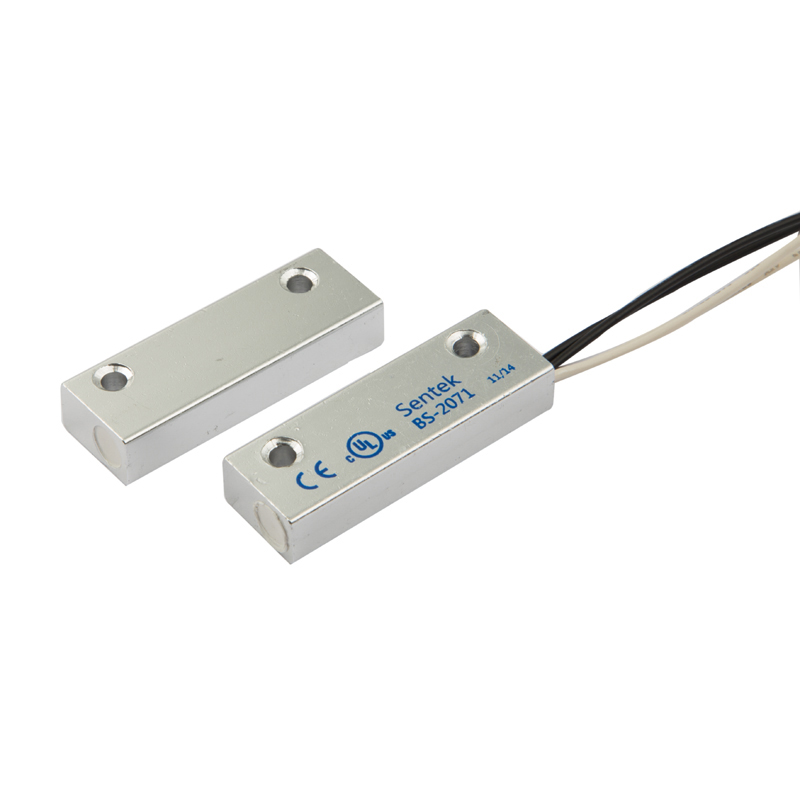

BS-2071 UL Door Contact Switch Window Security Sensor for Home Alarm System

Metal magnetic contacts
Ideal for commercial application or industrial use
Screws included
Standard 18" #22AWG leads
2 Conductor jacket cable on request(BS-2071J)
Armored cable on request (BS-2071AR)
Longer leads available
Resistor, Diode and Supervisory Loop available on request

  • BS-2071/2071AR
  • Sentek


BS-2071/2071AR Series

Metal magnetic contacts

Ideal for commercial application or industrial use

Screws included

Standard 18" #22AWG leads

2 Conductor jacket cable on request(BS-2071J)

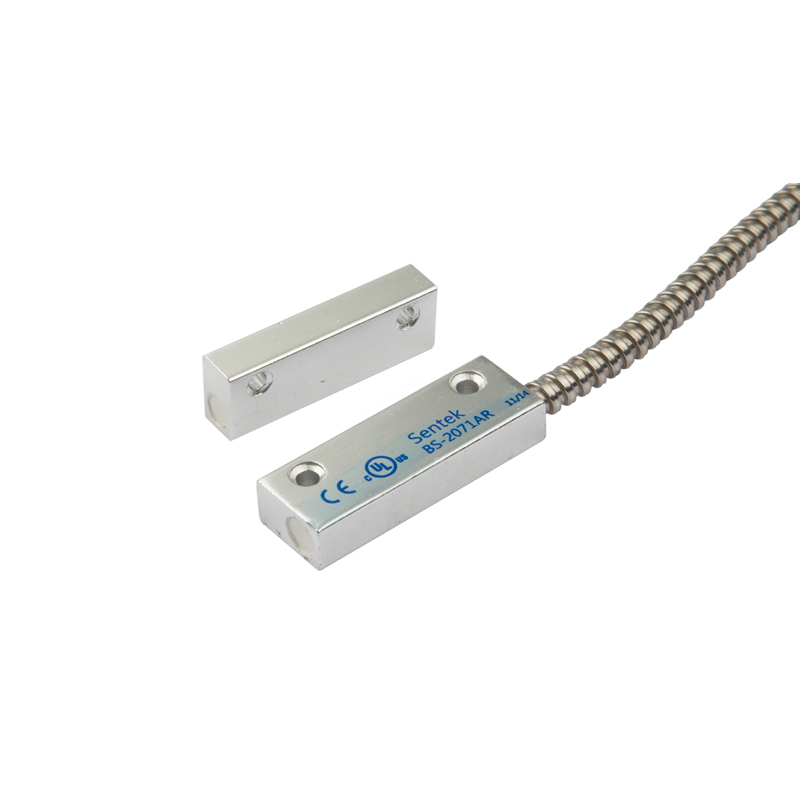

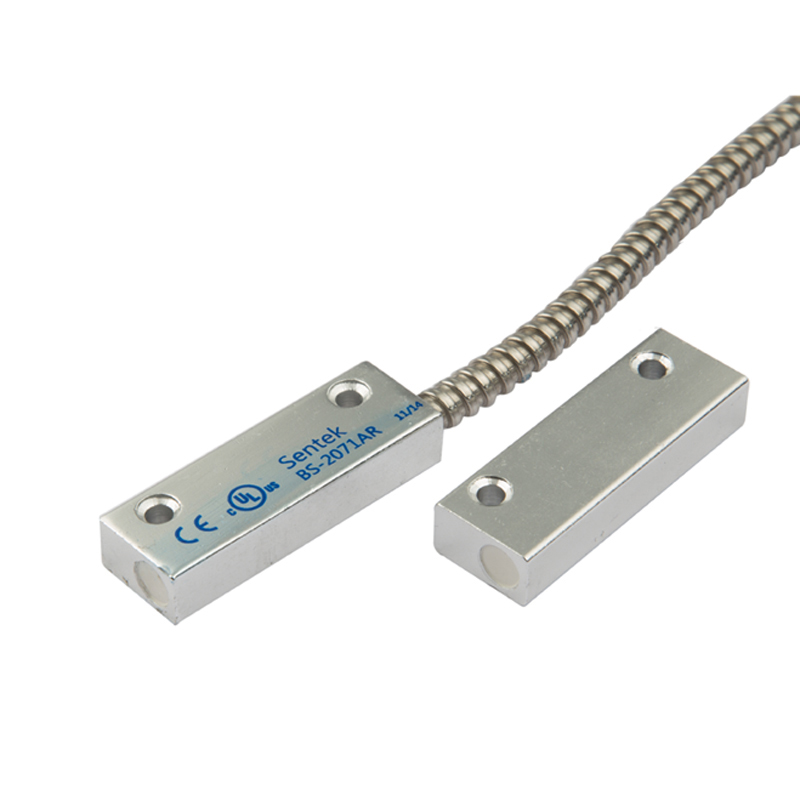

Armored cable on request (BS-2071AR)

Longer leads available

Resistor, Diode and Supervisory Loop available on request

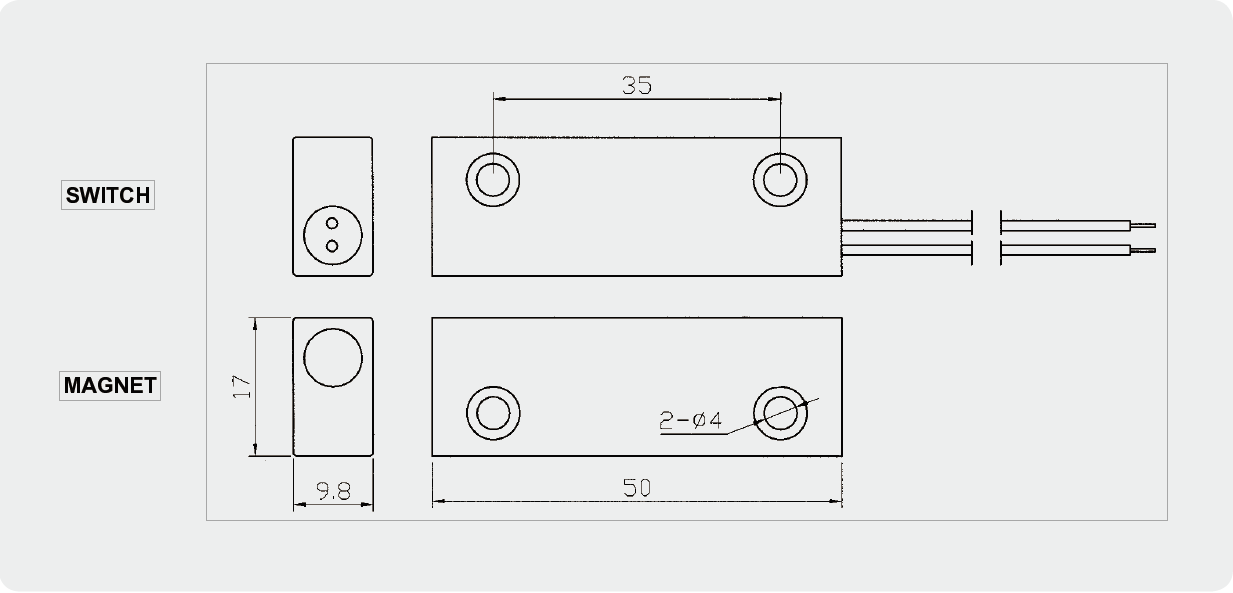

Dimension (mm)

2071

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)


Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2071(AR)

Closed

N/O

1.5

(38)


  1.65(42)          0.150        7.5 100   0.4

BS-2071A

(AR)

Open N/C

1.25

(31)


0.150 30 30  0.2

BS-2071C

(AR)

Closed&

Open

SPDT

1.25

(31)


0.150 30 30  0.2

BS-2071D

(AR)

DPDT 2SPDT

1.25

(31)


0.150 30   0.2
