BS-2062 Wired home alarm systems security for high quality

Small sealed contact switch without flange
Side leads with #22AWG 18” length
For heavy mount on aluminum frame
Adhesive tape available upon request
Switch or magnet available separately
Resistor, Diode and Supervisory loop available
Color: White, Brown or Grey
Availability:
  • BS-2062

  • Sentek


BS-2062 Series

Small sealed contact switch without flange

Side leads with #22AWG 18” length

For heavy mount on aluminum frame

Adhesive tape available upon request

Switch or magnet available separately

Resistor, Diode and Supervisory loop available

Color: White, Brown or Grey

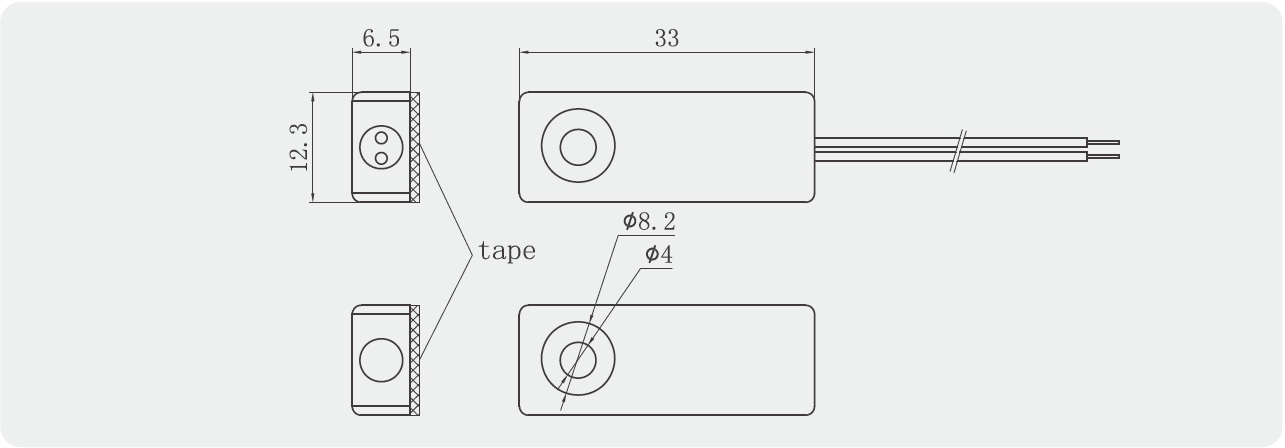

Dimension (mm)

2062

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2062

Closed

N/O

1

(25)

1.05

(26)

   0.20       10 100  0.5

BS-2062A

Open

N/C

0.8

(20)


0.20       3 30  0.2

BS-2062C

Open/Closed

SPDT

0.8

(20)


  0.20       3 30  0.2
