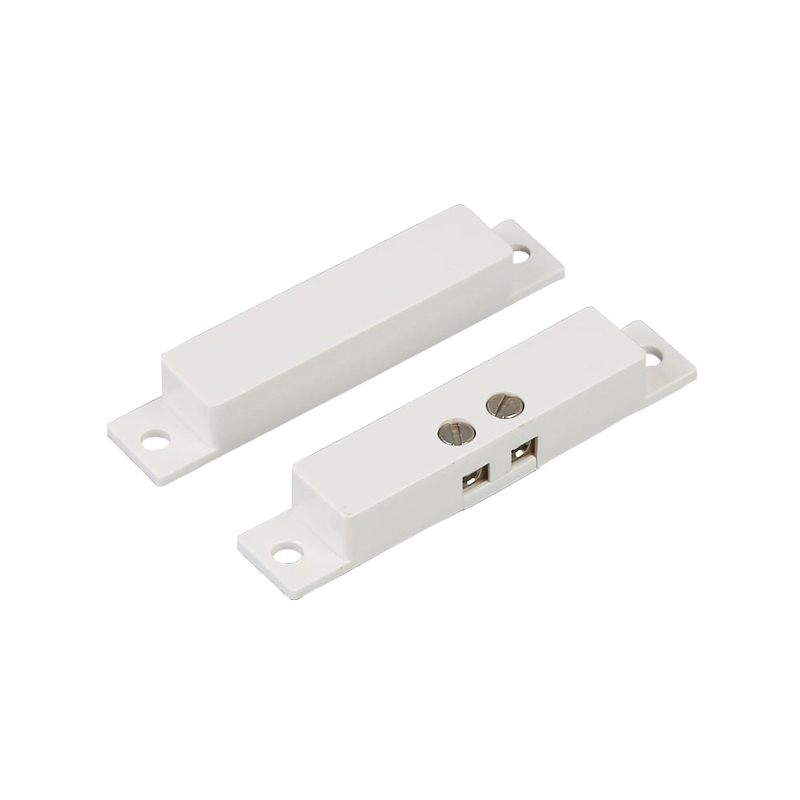

BS-2032 Mini Surface Mount Magnetic Contact with Screw Terminals

Quick connect terminal block
Adhesive and screws mount Breakaway flange
Easy installation
Switches or magnets available seperately

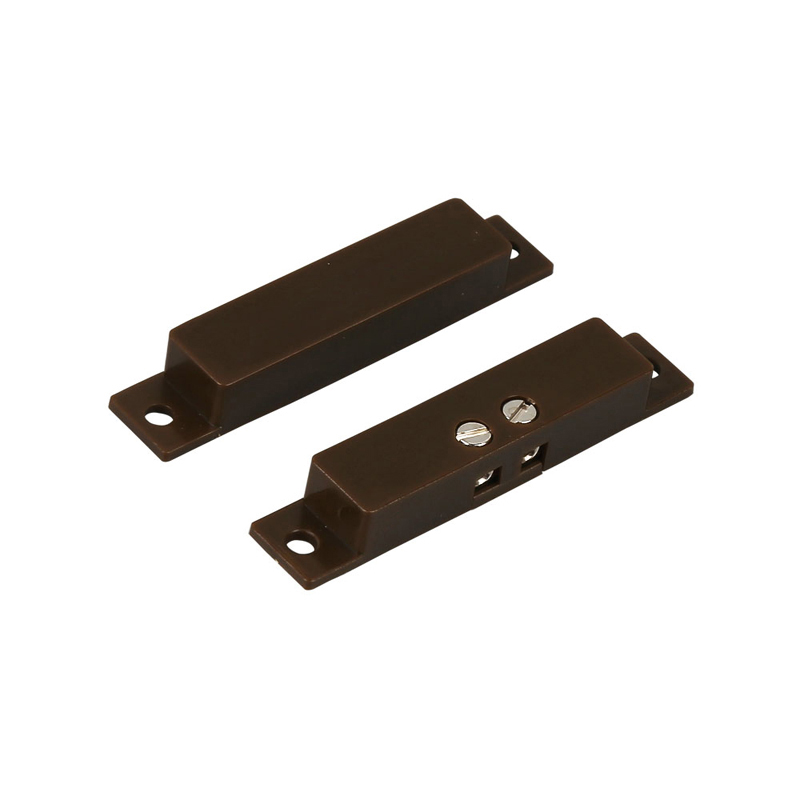

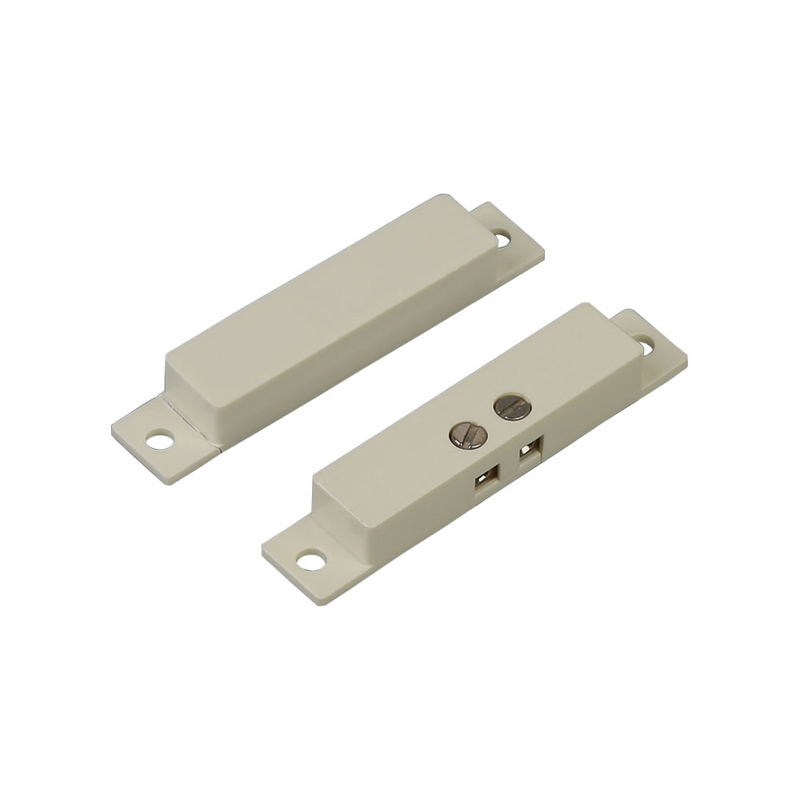

Colors: White, Brown, Grey

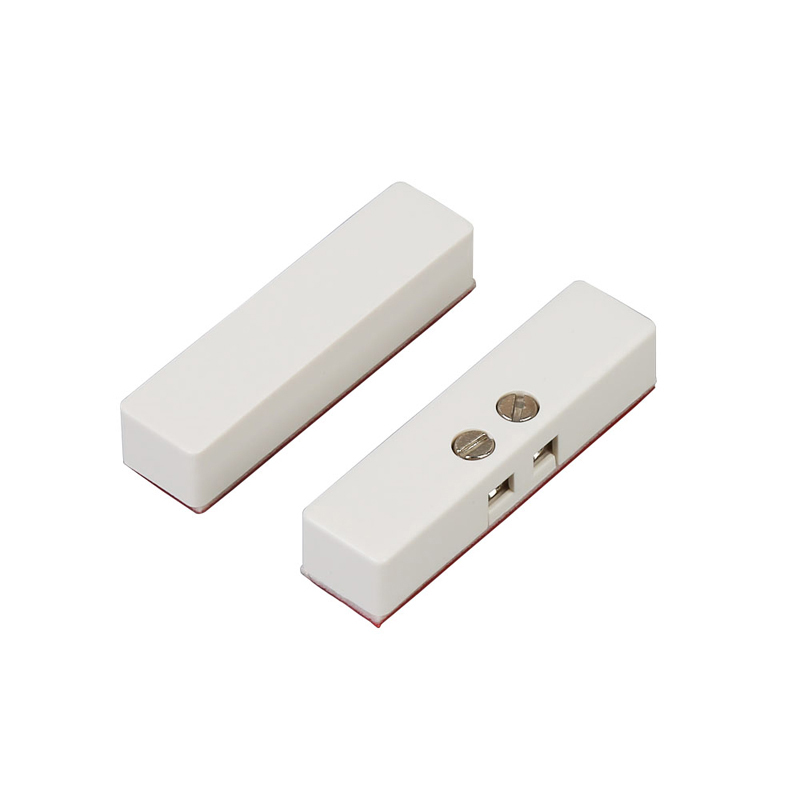

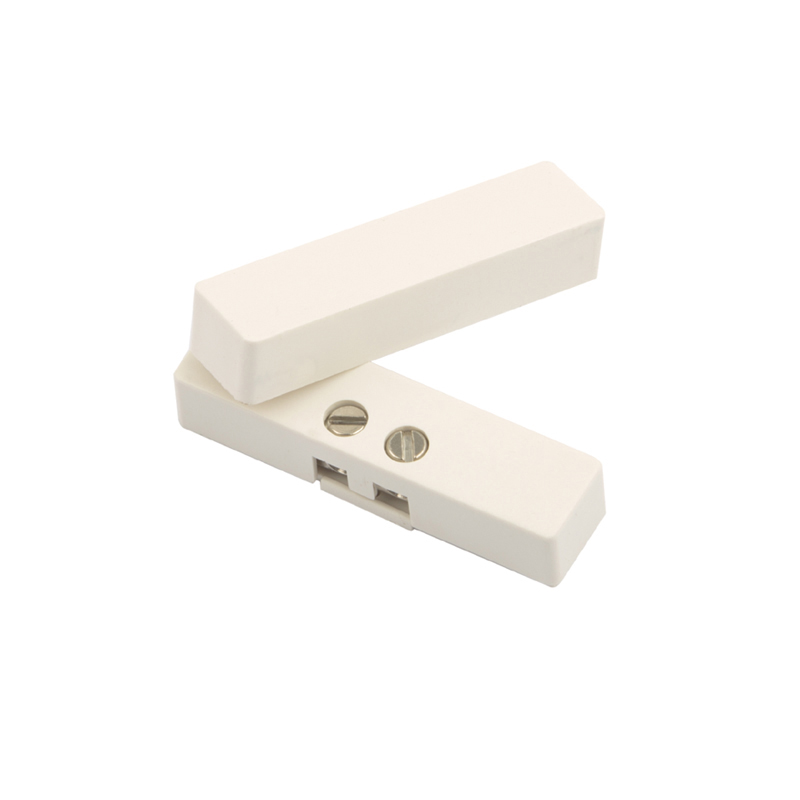

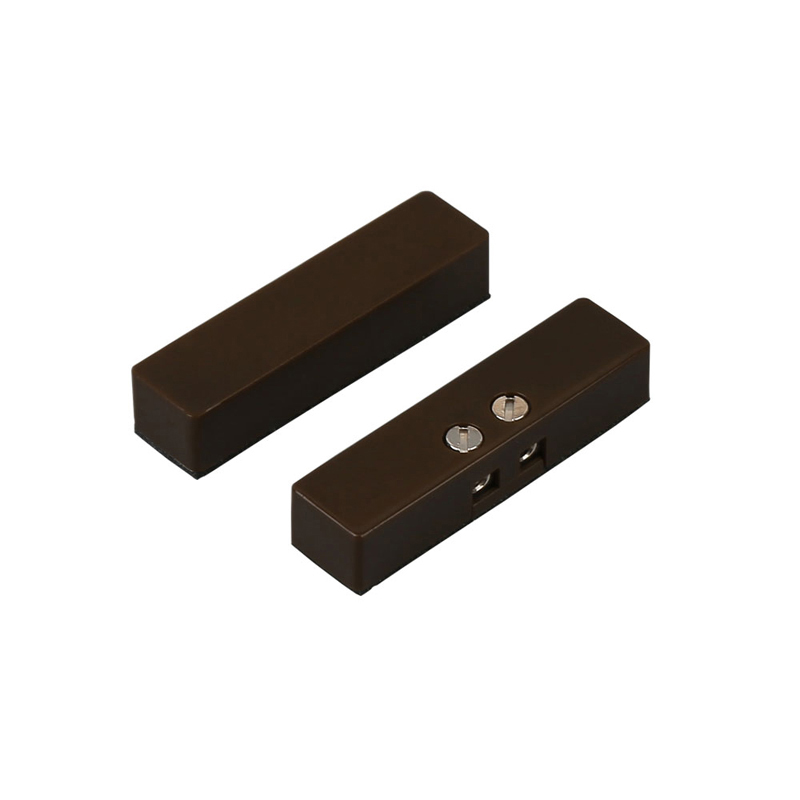

Without tabs on side (BS-2032OT)

  • BS-2032/BS-2032OT
  • Sentek


BS-2032/2032OT Series

Quick connect terminal block

Adhesive and screws mount Breakaway flange

Easy installation

Switches or magnets available seperately

Colors: White, Brown, Grey

Without tabs on side (BS-2032OT)

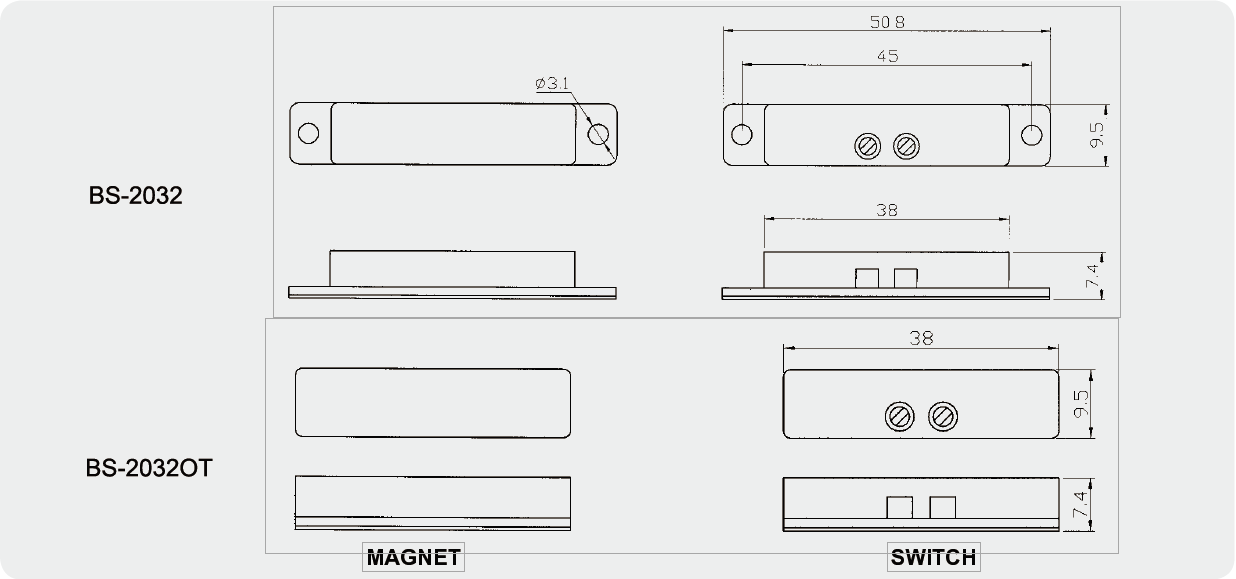

Dimension (mm)

2032

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2032

(OT)

Closed

N/O

0.95

(24)

1.06 (27)            0.150       10 100  0.5

BS-2031A

(OT)

Open N/C

0.8

(20)


0.150   3   30 0.2
