BS-2026T SM-4004-TQ Pill Profile Door Window Sensor Switch Alarm for Home System

Pill profile
Narrow width allow for window track installs without drilling into the frames
Quick connect terminal block
Adhesive included
Switch or magnet available separately
Colors: White, Brown, Grey or Tan
Availability:
  • BS-2026T
  • Sentek


BS-2026T Series

Pill profile

Narrow width allow for window track installs without drilling into the frames

Quick connect terminal block

Adhesive included

Switch or magnet available separately

Colors: White, Brown, Grey or Tan

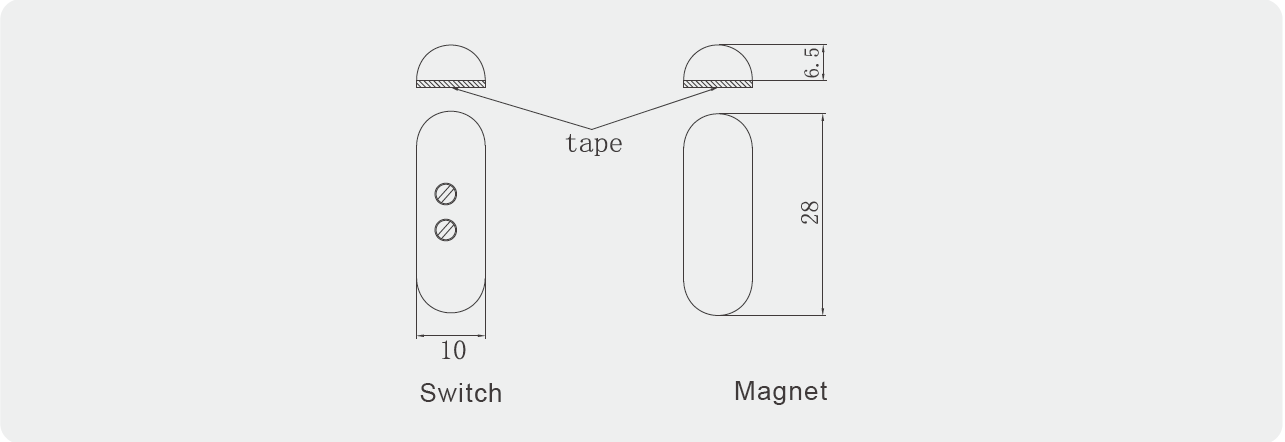

Dimension (mm)

2026T

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2026T

Closed

N/O

1(25)

1.05 (27)    0.20       10 100  0.5
BS-2026TA Open N/C

1(23)


0.20   3   30 0.2
