BS-2018 Screw Mounting Flat Slim Magnetic Contact Switch for Vending MachineCheap Normally Closed Magnetic Door Contact Reed Switch Home Security Alarm

Flat slim contacts for where minimum thickness required
Concealed mounting, suitable for Vasistas fixtures
Side leads with #22AWG 18” length
4-core cable available upon request
Screws mounting
Resistor, Diode available
Switch or magnet available separately
Color: White or Brown

  • BS-2018
  • Sentek


BS-2018 Series

Flat slim contacts for where minimum thickness required

Concealed mounting, suitable for Vasistas fixtures

Side leads with #22AWG 18” length

4-core cable available upon request

Screws mounting

Resistor, Diode available

Switch or magnet available separately

Color: White or Brown

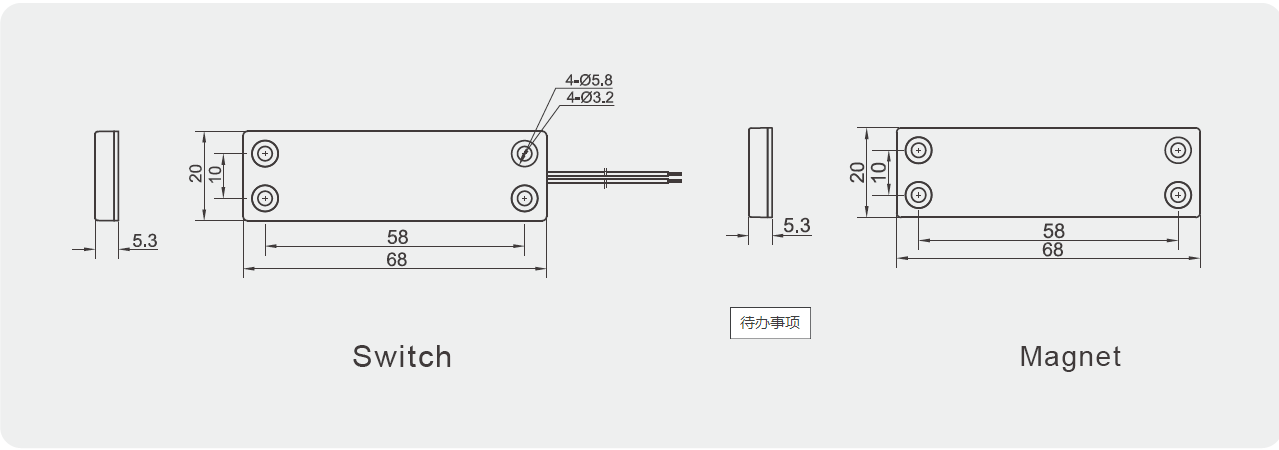

Dimension (mm)

2018

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2018

Closed

N/O

1(25)

0.78 (20)    0.20       10 100  0.5

BS-2018A

Open

N/C

0.85

(21)


   0.20         3    30  0.2

BS-2018C

Closed&

Open

SPDT

0.85

(21)


   0.20       3 30  0.2
