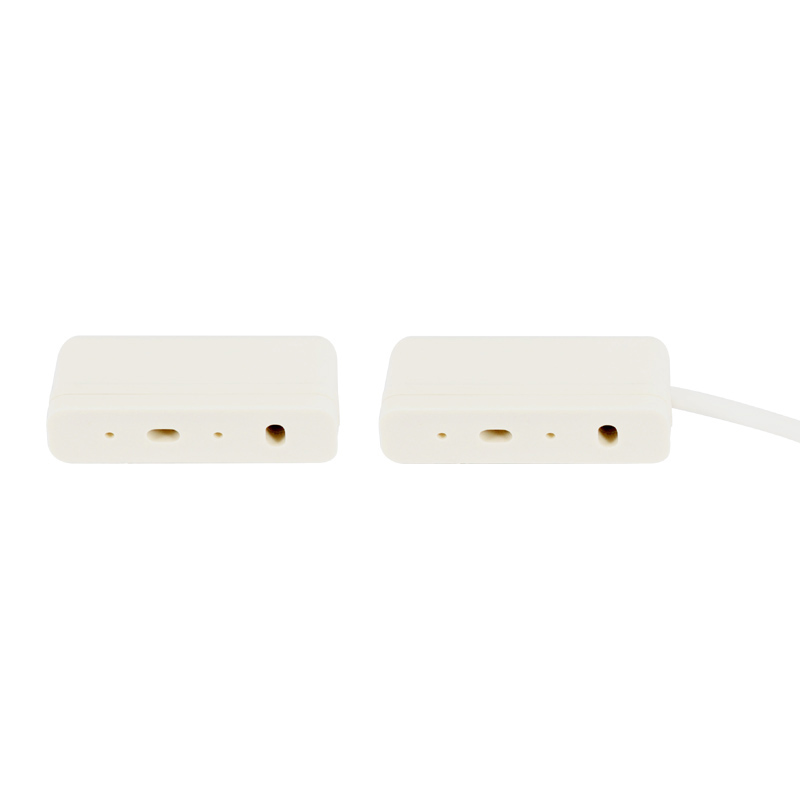

BS-2013 Surface Mount Magnetic Door Contact Switch for Anti-theft Alarm System

Side or back cable orientation
Jacked cable: 2,3,4,5 wires available
Cable length: 2 meters,4 meters or longer

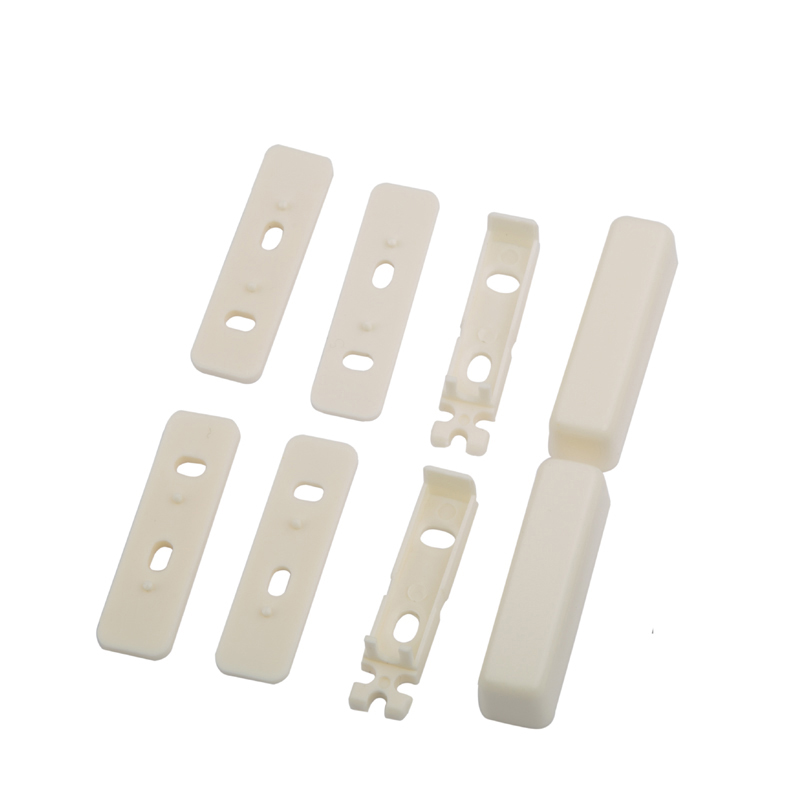

Two kind of thickness spacer included
Switch or magnet available separately
Color: White, Brown or Grey

  • BS-2013
  • Sentek


BS-2013 Series

Side or back cable orientation

Jacked cable: 2,3,4,5 wires available

Cable length: 2 meters,4 meters or longer

Two kind of thickness spacer included

Switch or magnet available separately

Color: White, Brown or Grey

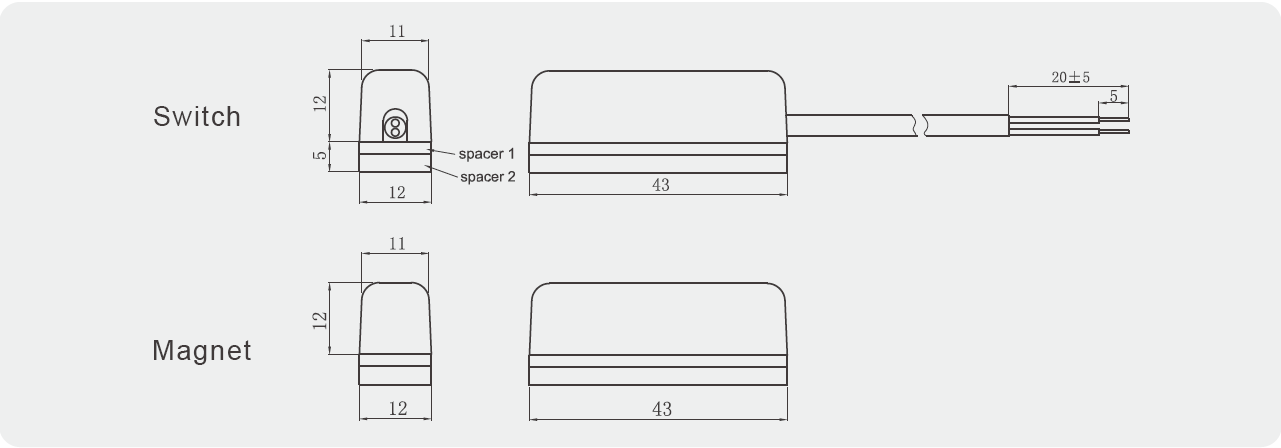

Dimension (mm)

2013

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BS-2013

-J-2M

Closed

N/O

1(25)

1.05 (26)    0.65       10 100  0.5

BS-2013

-UJ-2M

Closed&

Supervisory

N/C 1(25)

1.05 (26)

0.65   10
100  0.5

BS-2012A

-J-2M

Open

N/C

3/4

(19)


   0.65         3    30  0.2

BS-2012C

-J-2M

Closed/

Open

SPDT

3/4

(19)



   0.65       3 30  0.2

Notes:

“J” mean 2 wires jacked cable

“UJ” mean 4wires jacked cable 2 wires for switch 2 wires for supevisory loop
