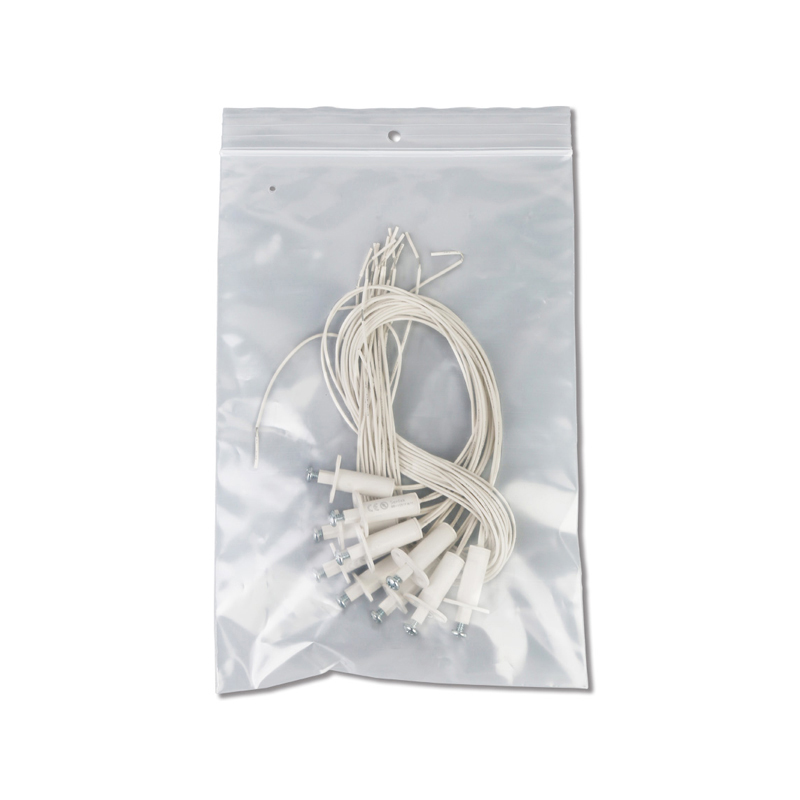

BR1051F CE/UL Approved Magnetic Plunger Reed Switch Alarm Sensor

Adjustable screw plunger w/ flange
3/8" diameter press to fit
Single drink hole
18" #22AWG leads or screw terminal
Special leads available
Screws included
Colors: White, Brown, Grey
Availability:
  • BR-1051F/BR-1051FT
  • Sentek


BR-1051F/1051FT Series

Adjustable screw plunger w/ flange

3/8" diameter press to fit

Single drink hole

18" #22AWG leads or screw terminal

Special leads available

Screws included

Colors: White, Brown, Grey

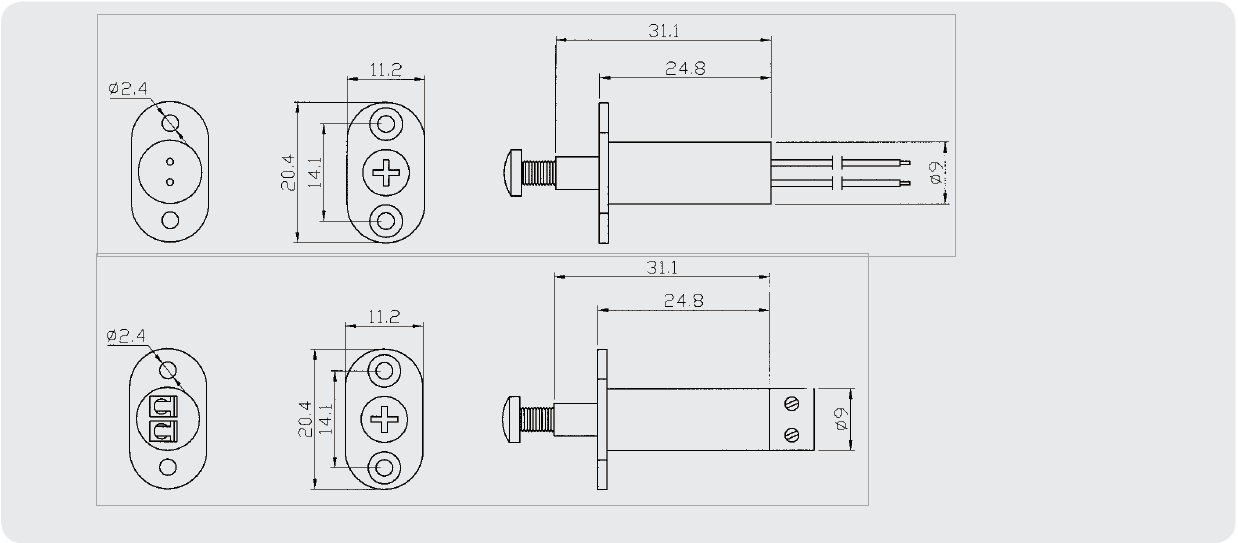

Dimension (mm)

1051F

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1051F

Closed

N/O

1/4(6.2)

         0.150       10 100  0.5

BR-1051FT

Closed

N/O

1/4(6.2)

 0.150        10 100   0.5


Certificate
