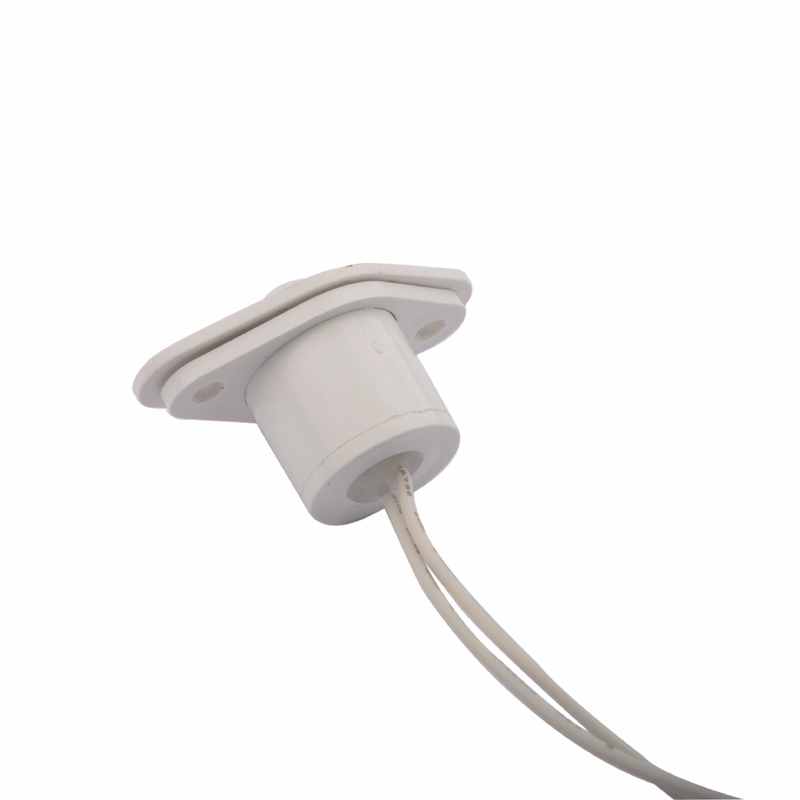

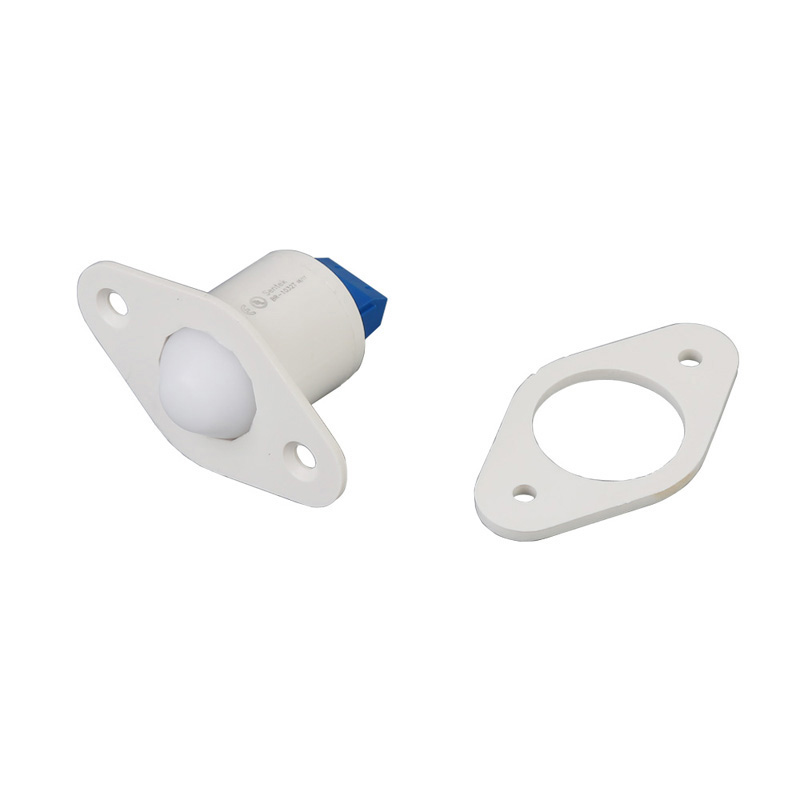

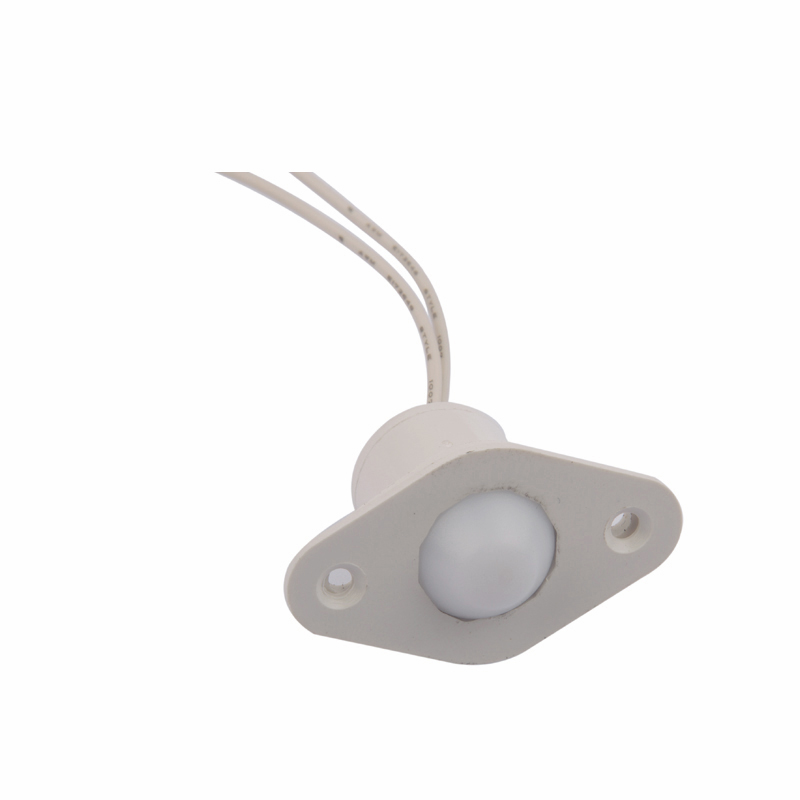

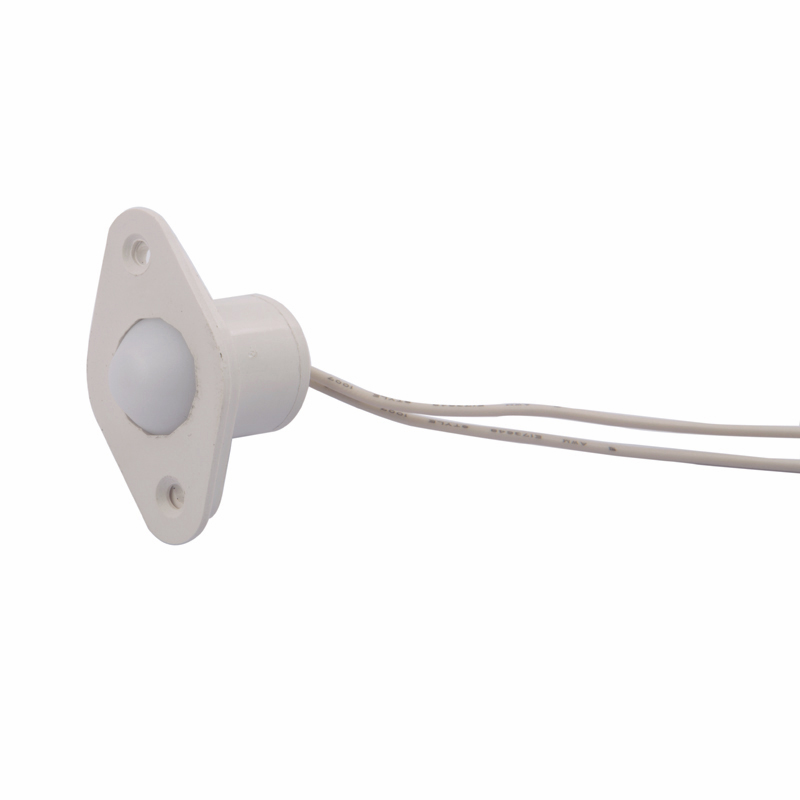

BR1032 Plunger Ball Alarm Switch Magnetic Reed Terminal Recessed Hidden Contact Sensor

Plunger flush type
3/4" diameter
Standard 18" #22AWG leads
Special leads available
Spacer and screws included

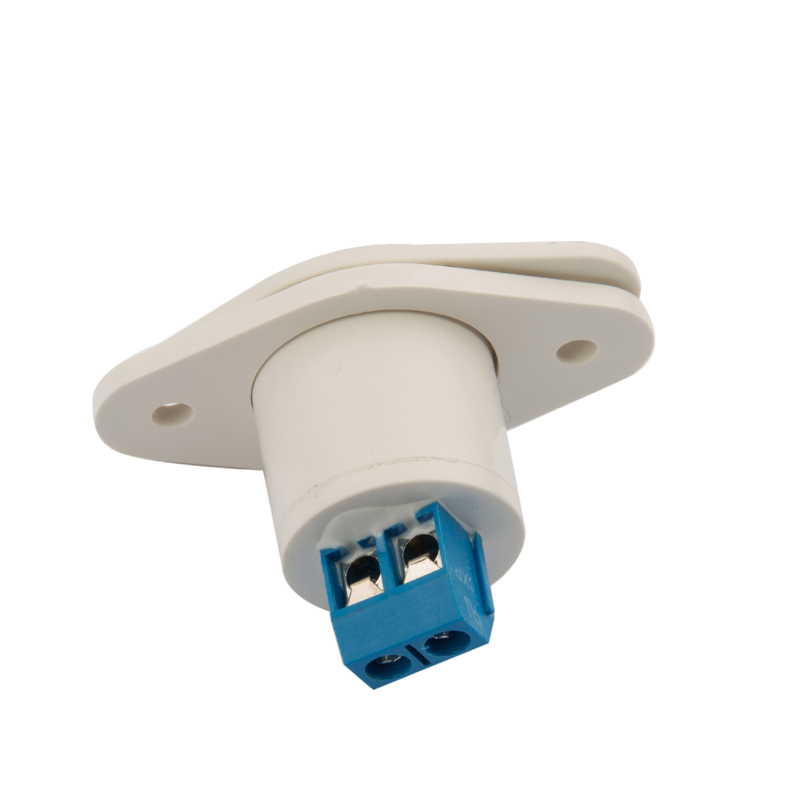

Terminal block available
Colors: White or Brown

  • BR-1032/BR-1032T
  • Sentek


BR-1032/1032T Series

Plunger flush type

3/4" diameter

Standard 18" #22AWG leads

Special leads available

Spacer and screws included

Terminal block available

Colors: White or Brown

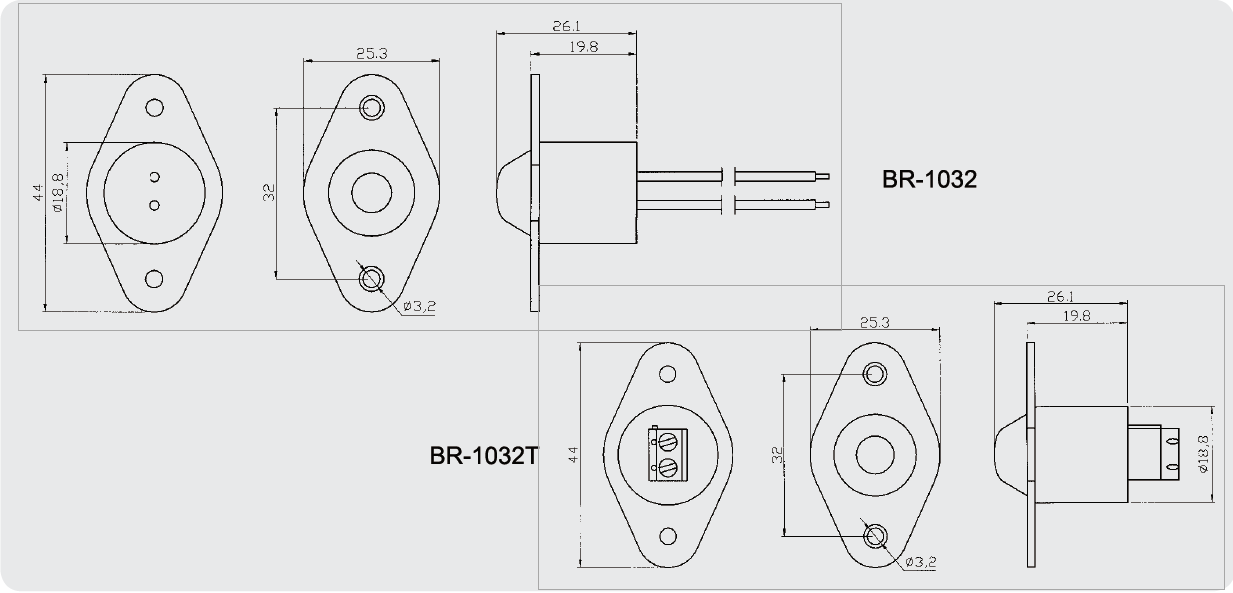

Dimension (mm)

1032

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1032

Closed

N/O

1/4(6)

         0.150       10 100  0.5

BR-1032T

Closed

N/O

1/4(6)

 0.150        10 100   0.5
