BR1031 UL Listed Door Contact Alarm Sensor Roll Ball Switch for Home Security System

Roll plunger flush type
Work from 360 degree directions
3/4" diameter
Standard 18" #22AWG leads
Special leads available
Spacer and screws included
Resistor, Diode and Supervisory Loop available on request
Colors: White or Brown
Availability:
  • BR-1031
  • Sentek


BR-1031 Series

Roll plunger flush type

Work from 360 degree directions

3/4" diameter

Standard 18" #22AWG leads

Special leads available

Spacer and screws included

Resistor, Diode and Supervisory Loop available on request

Colors: White or Brown

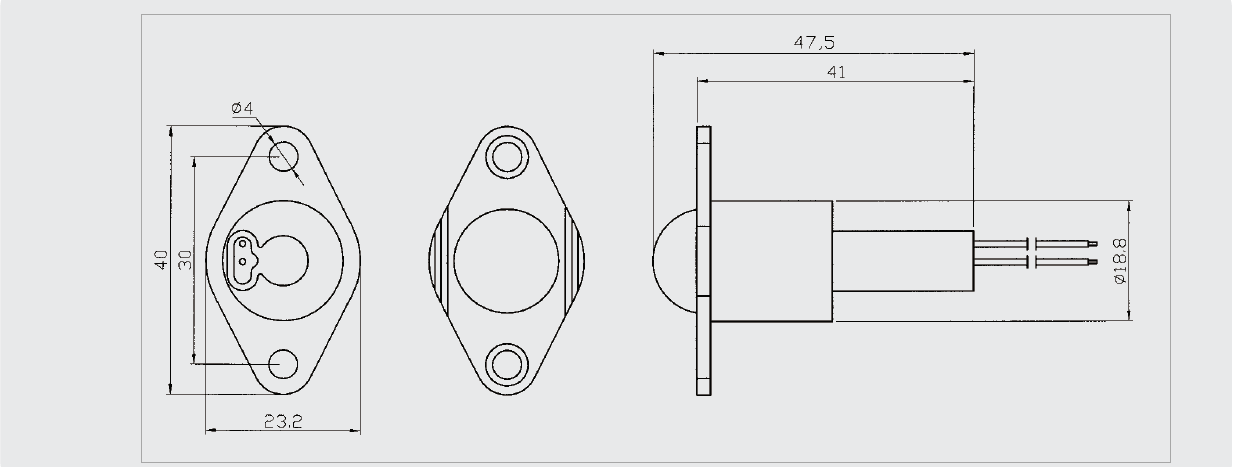

Dimension (mm)

1031

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1031

Closed

N/O

1/4(6)

         0.150       10 100  0.5

BR-1031A

Open

N/C

1/4(6)

 0.150        3  30     0.2
BR-1031C

Closed

&

Open

SPDT 1/4(6) 0.150    3    30  0.2
