BR-1074 Wired Copper Body Flush Mounting Magnetic Contact Switch

3/4" diameter Press to fit
Flush mounting
Compact dimensions for thin frames
Copper body
High mechanical resistance
Wire: #22AWG 18” length
Special wire or cable available upon request
Suitable for steel ,aluminum, wood and PVC
doorsand windows
Availability:
  • BR-1074

  • Sentek


BR-1074 Series

3/4" diameter Press to fit

Flush mounting

Compact dimensions for thin frames

Copper body

High mechanical resistance

Wire: #22AWG 18” length

Special wire or cable available upon request

Suitable for steel ,aluminum, wood and PVC

doorsand windows

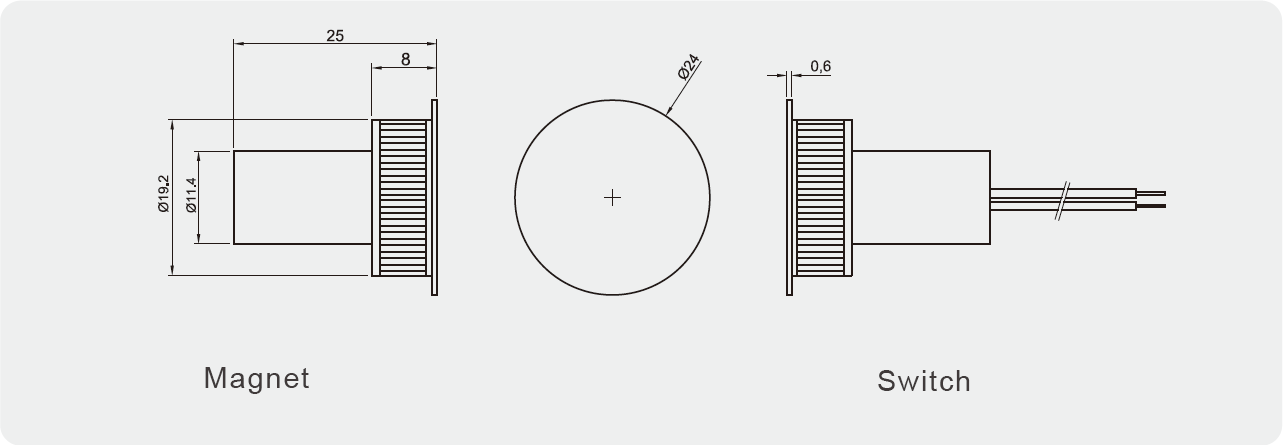

Dimension (mm)

1074

Order Information



Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch

(mm)

Depature

Gap

Inch

(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching

Current

(A)

BR-1074

Closed

N/O

3 / 4(19)

1-1/2(35)

in wood

0.8 (20)   0.20   10 100  0.5

BR-1074A

Open

N/C

5 / 8

(15)


 0.20 3 30  0.2

BR-1074C

Closed/

Open

SPDT

5 / 8

(15)


 0.20 3 30  0.2
