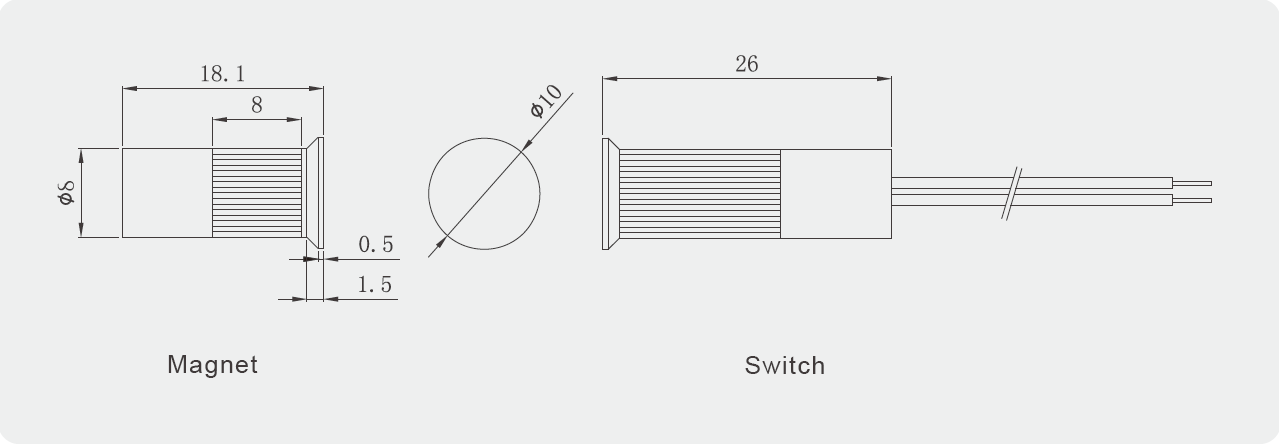

8 mm diameter switch with flange
Flush mounting
Compact dimensions for thin frames
Copper body
High mechanical resistance
Wire: #22AWG 18” length
Special wire or cable available upon request
Suitable for aluminum, wood and PVC doors and windows
•8 mm diameter switch with flange
•Flush mounting
•Compact dimensions for thin frames
•Copper body
•High mechanical resistance
•Wire: #22AWG 18” length
•Special wire or cable available upon request
•Suitable for aluminum, wood and PVC doors and windows
Part Number | Loop Type | Reed Form | Closed Gap Inch (mm) | Depature Gap Inch (mm) | Maximum Initial Contact Resistance (Ohm) | Maximum Contact Rating (W) | Maximum Switching Voltage (VDC/VAC) | Maximum Switching Current (A) |
BR-1073 | Closed | N/O | 3 / 4 (19) | 0.8 (20) | 0.20 | 10 | 100 | 0.5 |
BR-1073A | Open | N/C | 3 / 4 (19) | 0.20 | 3 | 30 | 0.2 | |
BR-1073C | Closed/Open | SPDT | 3 / 4 (19) | 0.20 | 3 | 30 | 0.2 |
