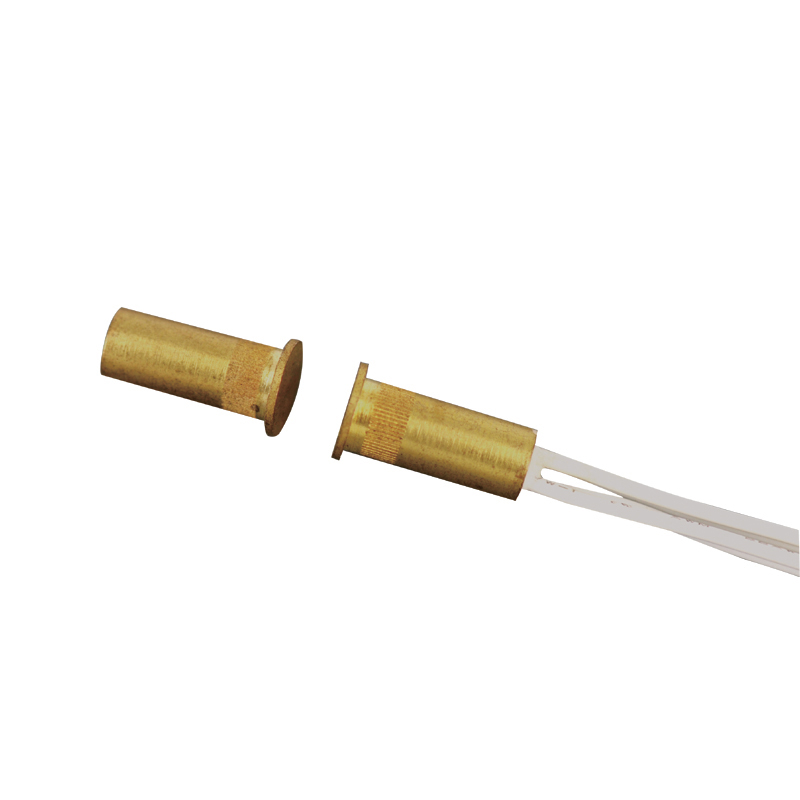

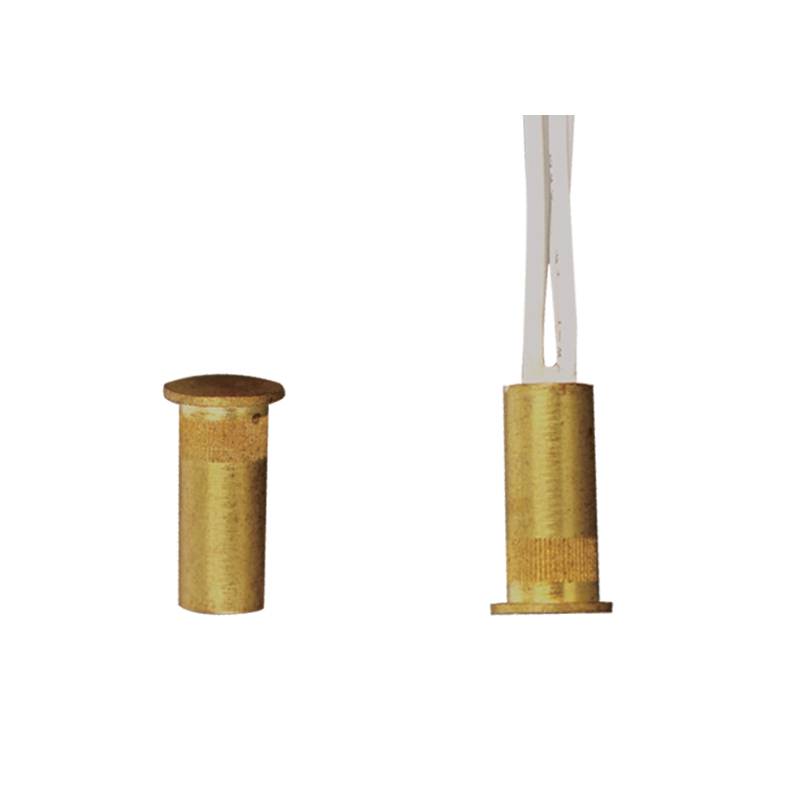

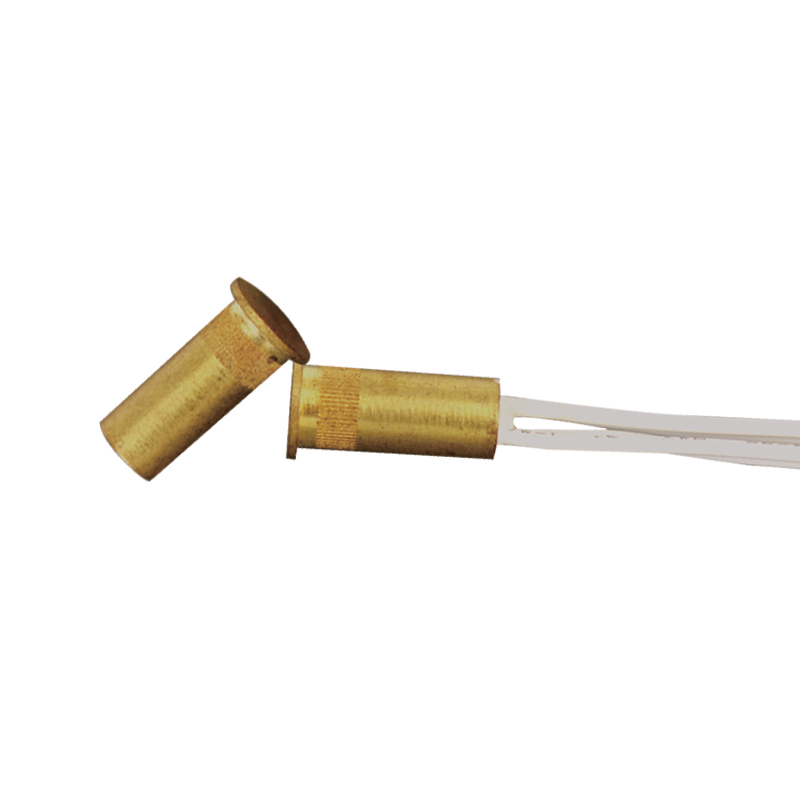

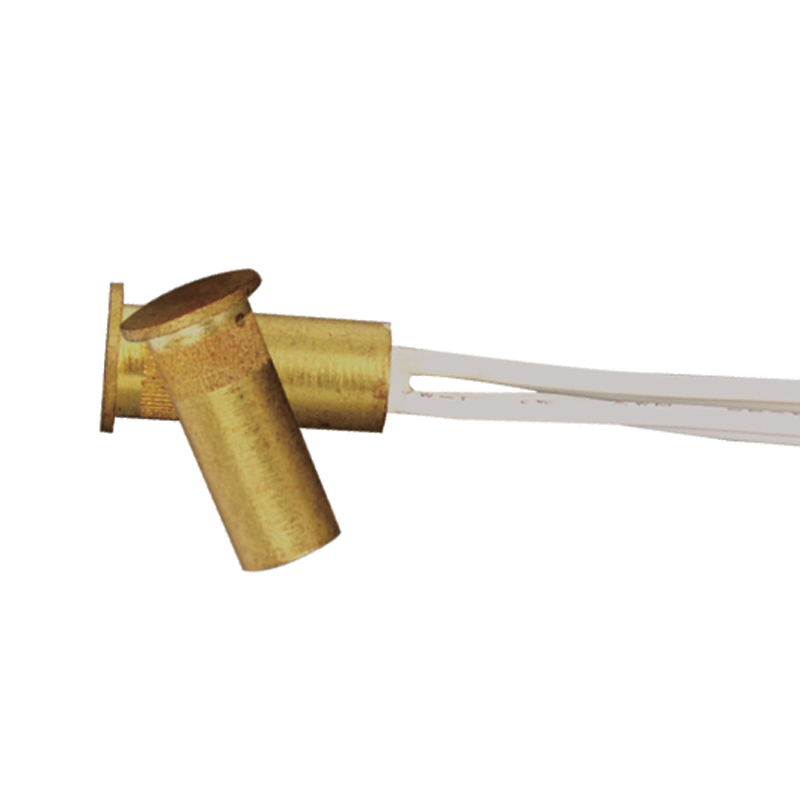

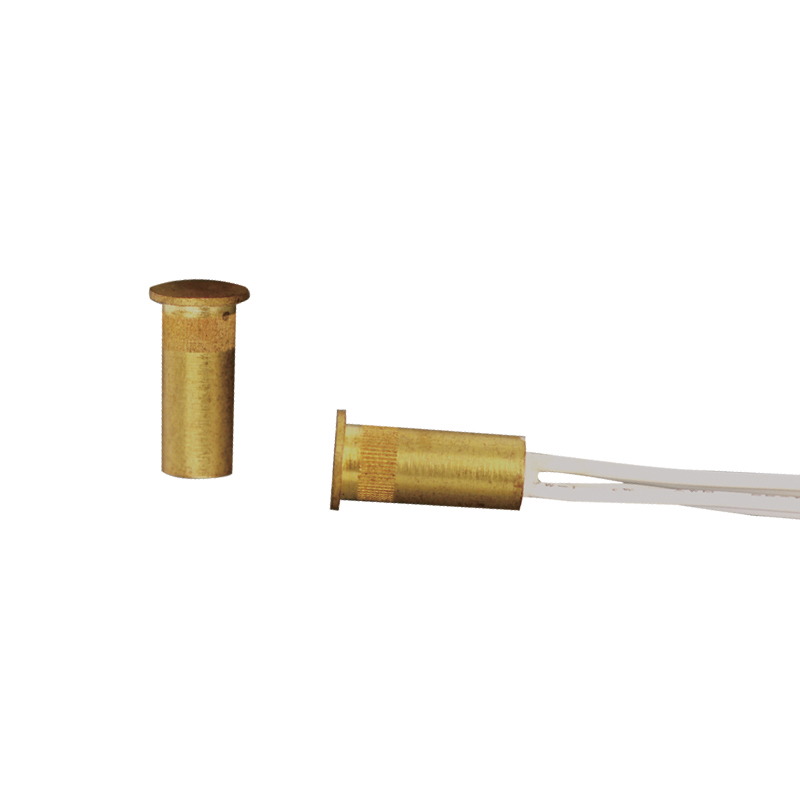

BR-1072 6mm Copper Body Magnetic Contact Switch for Door and Window

6 mm diameter switch with flange
Flush mounting
Compact dimensions for thin frames
Copper body
High mechanical resistance
Wire: #22AWG 18” length
Special wire or cable available upon request
Suitable for aluminum, wood and PVC doors and windows

  • BR-1072
  • Sentek


BR-1072 Series

6 mm diameter switch with flange

Flush mounting

Compact dimensions for thin frames

Copper body

High mechanical resistance

Wire: #22AWG 18” length

Special wire or cable available upon request

Suitable for aluminum, wood and PVC doors and windows

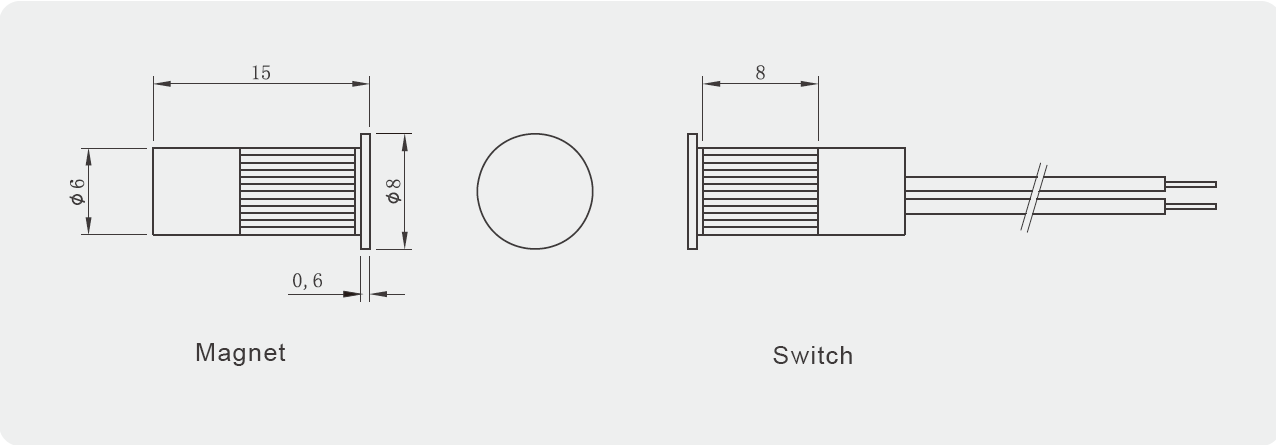

Dimension (mm)

1072

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch

(mm)

Depature

Gap

Inch

(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching

Current

(A)

BR-1072

Closed

N/O

5 / 8

(15)

0.7(17)   0.20   10 100  0.5

BR-1072A

Open

N/C

5 / 8

(15)


  0.20   3 30  0.2

BR-1072C

Closed/Open

SPDT

5 / 8

(15)


  0.20   3 30  0.2
