BR-1060 Recessed Mount Magnetic Contact Switch For Security System

5/8" diameter miniature flush mounting
Press fit
Standard 18" #22AWG Leads
Special leads upon request
Switch or magnet are available separately
Supervisory Loop available on request
Correct orientation of magnet and contact is required
for operation
Colors: White, Brown or Grey

  • BR-1060
  • Sentek


BR-1033/1033T Series


5/8" diameter miniature flush mounting

Press fit

Standard 18" #22AWG Leads

Special leads upon request

Switch or magnet are available separately

Supervisory Loop available on request

Correct orientation of magnet and contact is required

for operation

Colors: White, Brown or Grey

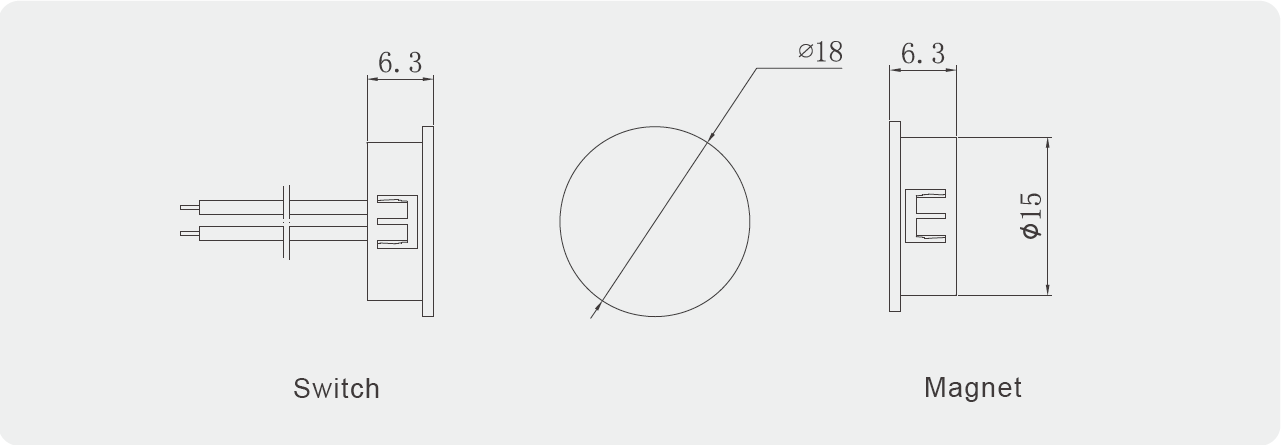

Dimension (mm)

1060

Order Information



Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch

(mm)

Depature Gap

Inch

(mm)


Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching

Current

(A)

BR-1060

Closed

N/O

5/8

(15)

 0.8

 (20)

 0.20   10 100  0.5
