BR-1033/1033T Door Contact Sensor Push Button Switch for Home Security Alarm System

Plunger flush type
3/4" diameter
Standard 18" #22AWG leads
Special leads available
Terminal block available (BR-1033T)
Colors: White or Brown
Availability:
  • BR-1033/1033T

  • Sentek


BR-1033/1033T Series

Plunger flush type

3/4" diameter

Standard 18" #22AWG leads

Special leads available

Terminal block available (BR-1033T)

Colors: White or Brown

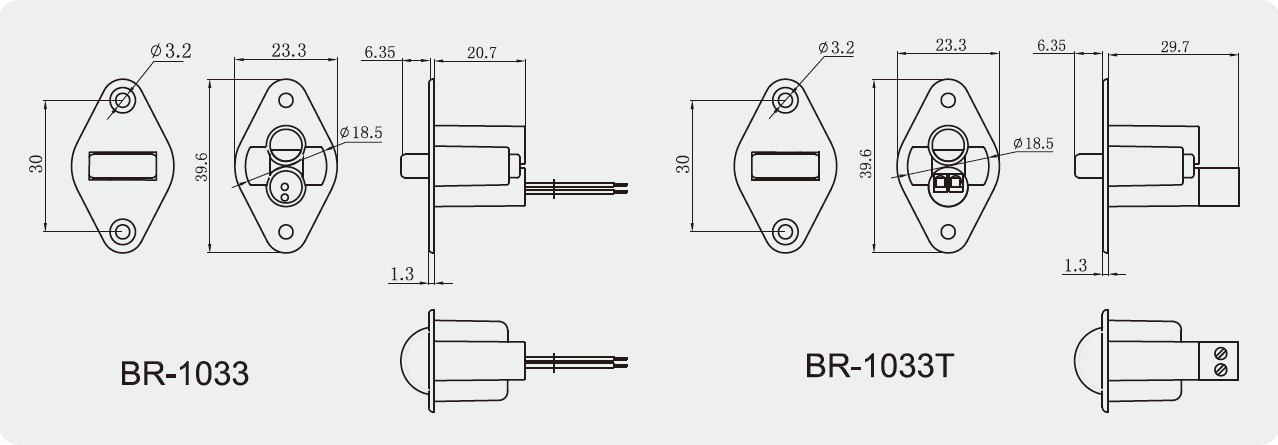

Dimension (mm)

1033

Order Information



Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch

(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching

Current

(A)

BR-1033

Closed

N/O

0.25

(6)

 0.150   10 100  0.5

BR-1033T

Closed

N/C

0.25

(6)

 0.150

10 100  0.5

Note: 1. Total Travel: .236 inch (6mm) Pre Travel: .065+/-.025 inch (1.65+/-0.60 mm)

2. Wire range for terminal: #18~#22AWG
