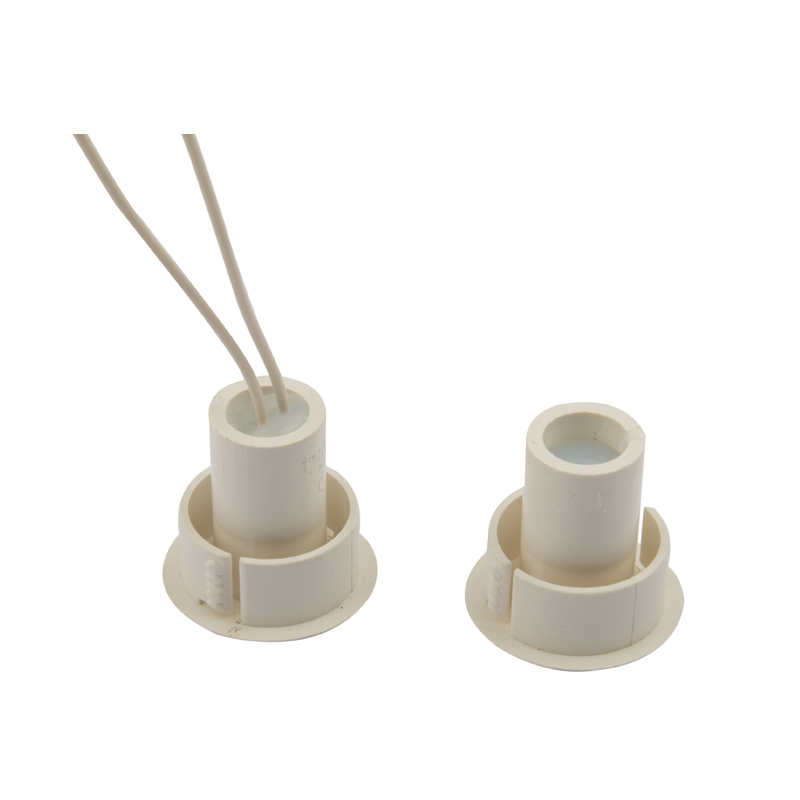

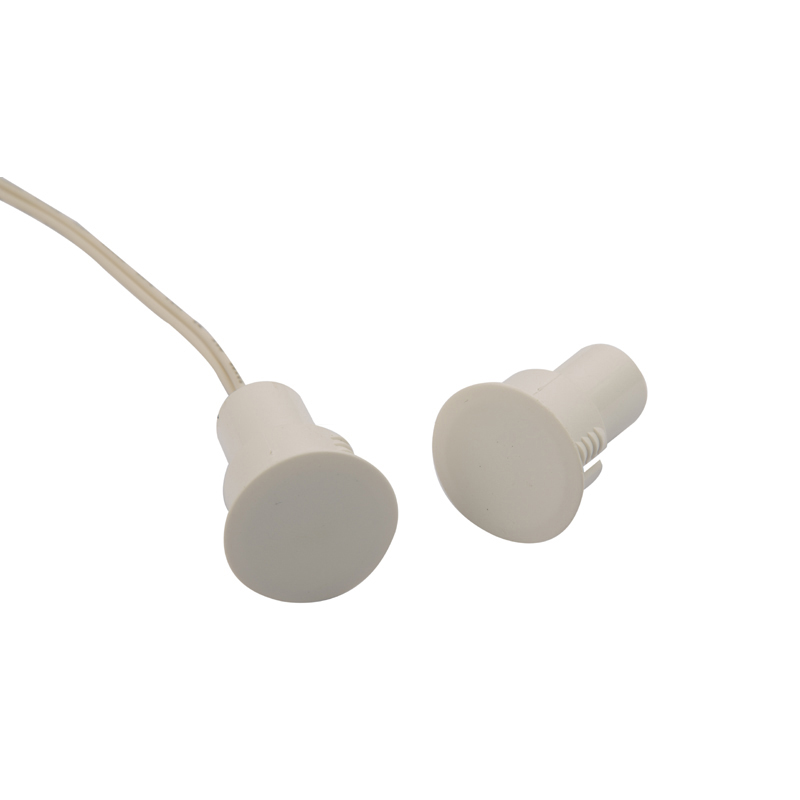

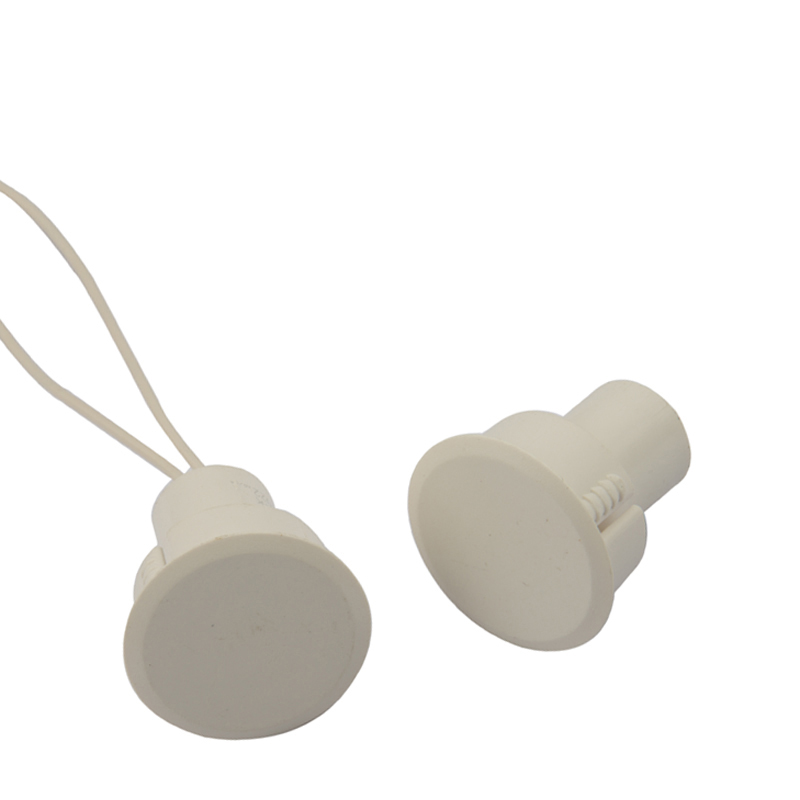

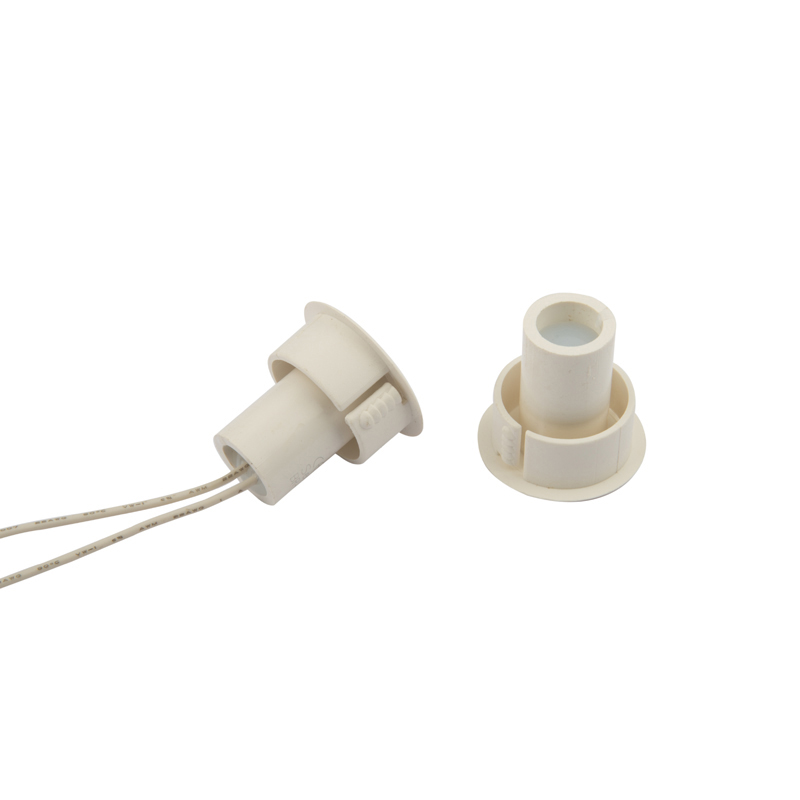

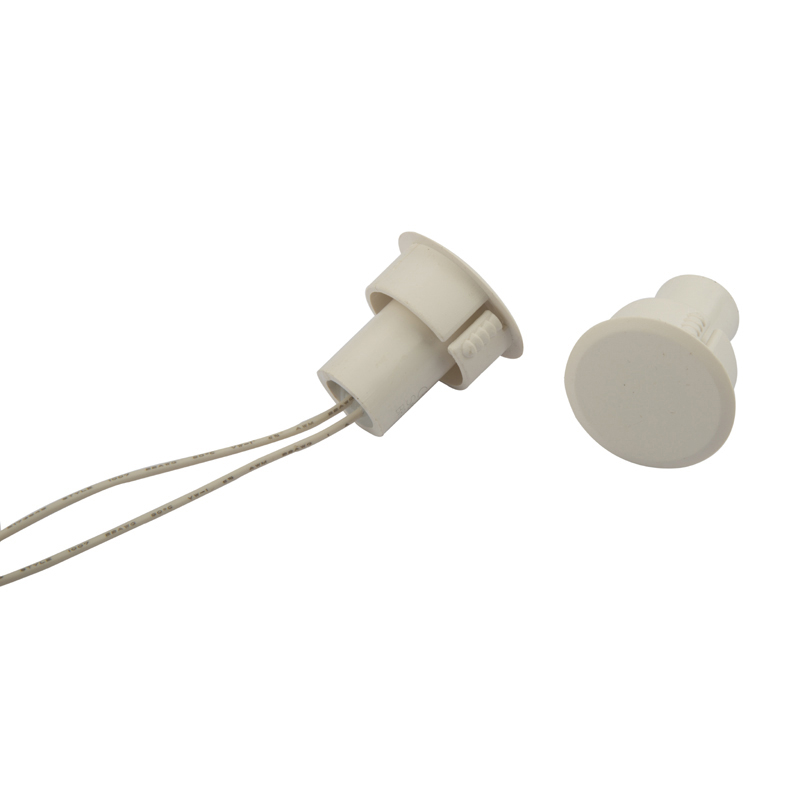

BR-1022 Door Contact Position switches (DCS) Work with All Access Control and Burglar Alarm Systems Reed Switch UL CE Certificated Recessed Door Contacts NO NC SPDT 2SPDT Security Alarm Window Sensor

1" diameter press to fit
Suitable for steel door install
Self-locking
Standard 18" #22AWG leads
Special leads available
Swith and Magnet available seperately
Resistor, Diode and Supervisory Loop available on request
Colors: White, Brown, Grey

  • BR-1022
  • Sentek


BR-1022 Series

1" diameter press to fit

Suitable for steel door install

Self-locking

Standard 18" #22AWG leads

Special leads available

Swith and Magnet available seperately

Resistor, Diode and Supervisory Loop available on request

Colors: White, Brown, Grey

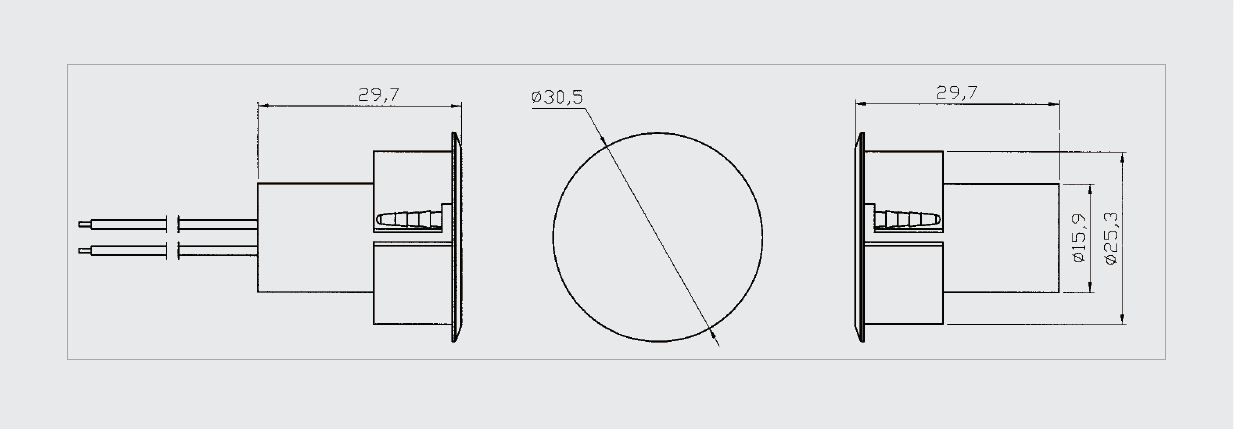

Dimension (mm)

1022

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1022

Closed

N/O

0.85

(22)

0.95 (24)          0.150       7.5 100  0.4

BR-1022WG

Closed

N/O

1(26)

1.1

(28)

 0.150        7.5  100     0.4
BR-1022A Open N/C 3/4(19)
0.150    3    30  0.2
BR-1022C

Closed

&

Open

SPDT
3/4(19)
0.150  30 0.2
BR-1022D DPDT

2

SPDT

3/4(19)
0.150  30 0.2
