BR-1021T Door Contact Position switches (DCS) Work with All Access Control and Burglar Alarm Systems Reed Switch

3/4" diameter press to fit
Suitable for steel door install
Self-locking
Swith and Magnet available seperately Resistor or Diode available on request
Colors: White, Brown, Grey

  • BR-1021T
  • Sentek


BR-1021T Series

3/4" diameter press to fit

Suitable for steel door install

Self-locking

Swith and Magnet available seperately Resistor or Diode available on request

Colors: White, Brown, Grey

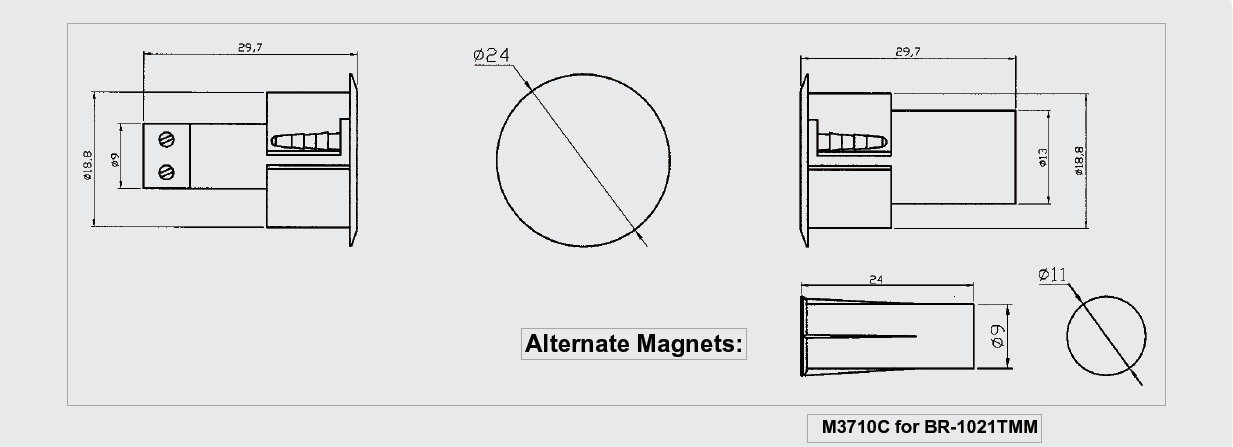

Dimension (mm)

1021T

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1021T

Closed

N/O

1/2+(15)

0.6 (17)          0.150       7.5 100  0.4
BR-1021TMM Closed N/O

3/4(19)

(in wood)

0.95 (24)  0.150    7.5
100  0.4

BR-1021TWG

Closed

N/O

3/4(19)


 0.150        7.5  100     0.4
BR-1021TA Open N/C 1/2(13)
0.150    3    30  0.2
