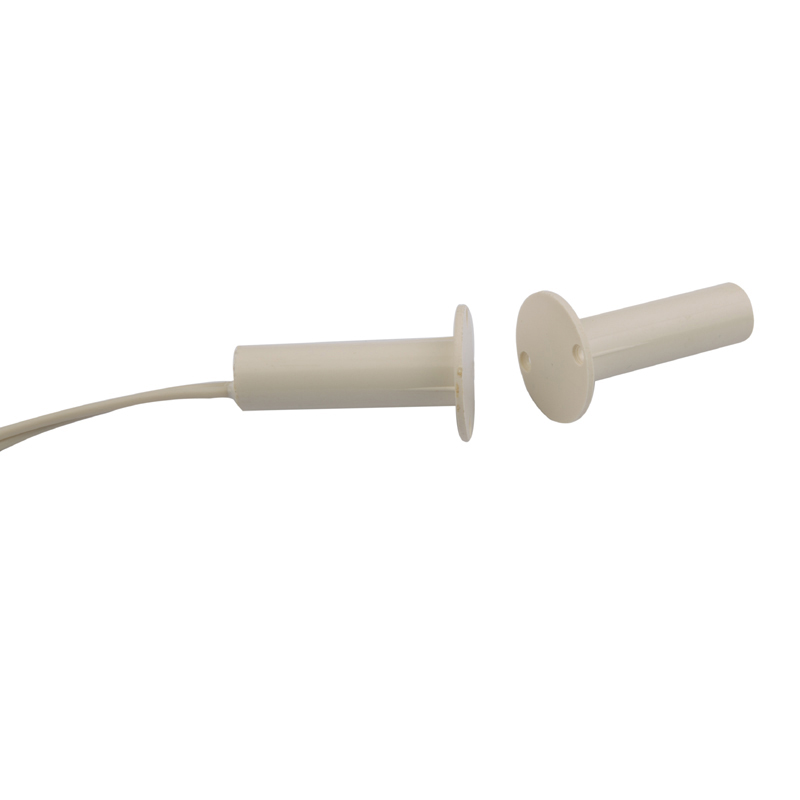

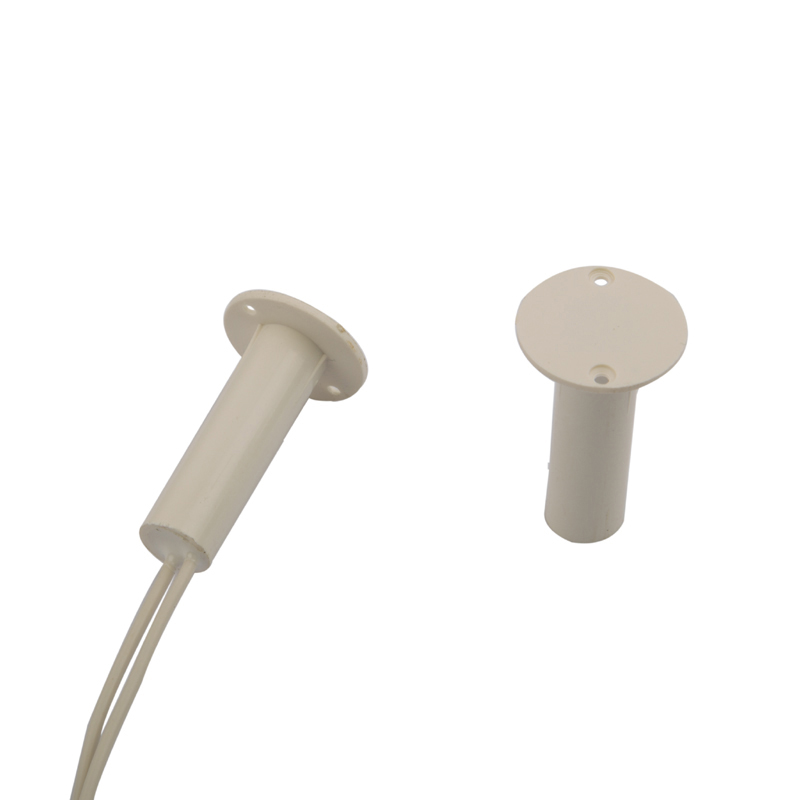

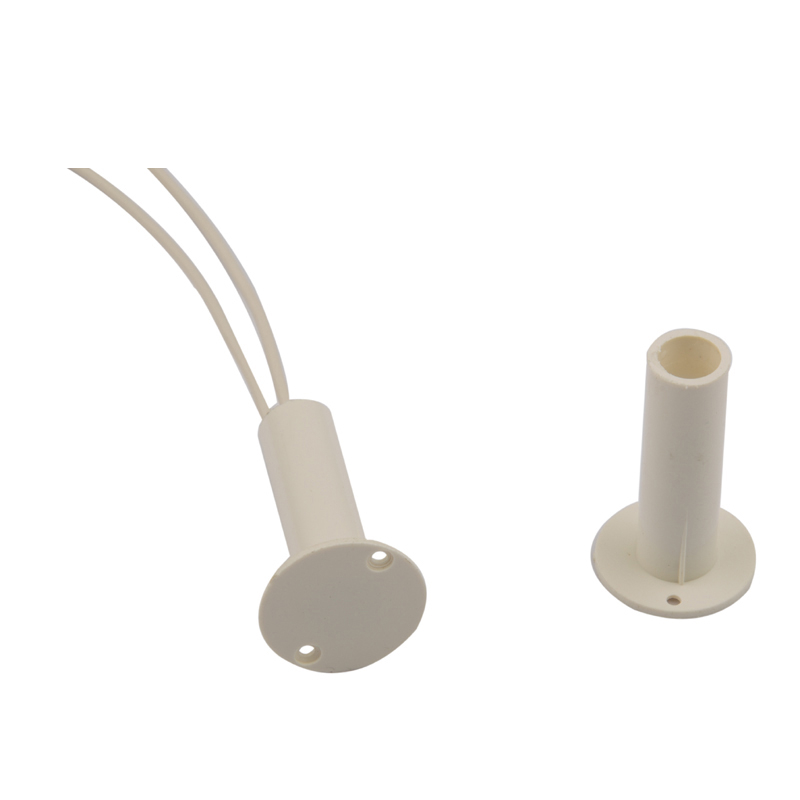

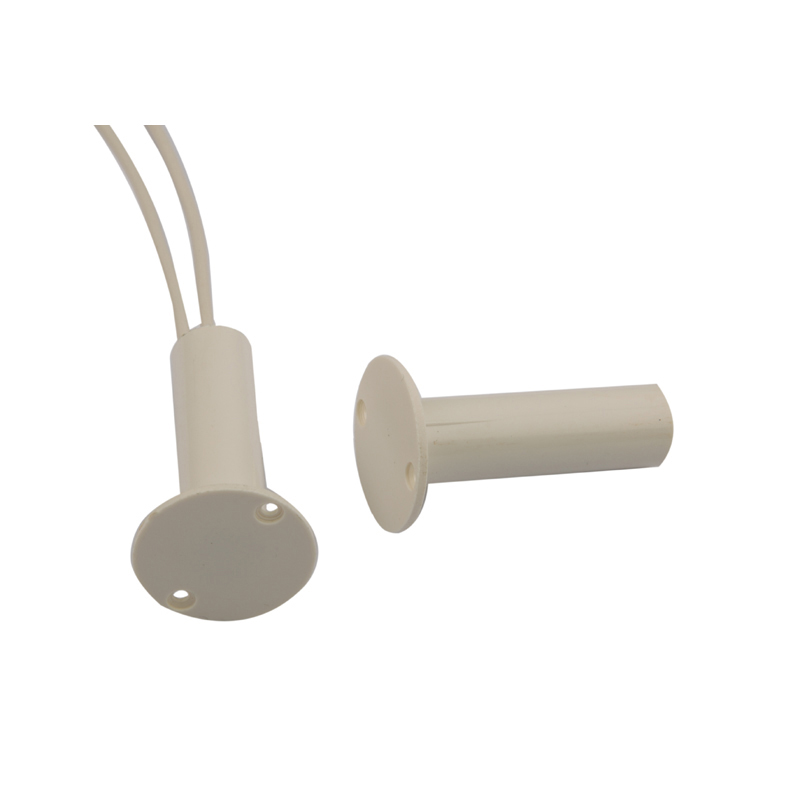

BR-1019 Normally Open/Closed Magnetic Switch Door Sensor Alarm Home Window Contact 9

Flanged recessed switch
3/8" diameter press to fit
Standard 18" #22AWG leads
Special wire available
Swith and Magnet available seperately
Resistor, Diode and Supervisory Loop available on request
Colors: White, Brown, Grey

  • BR-1019
  • Sentek


BR-1019 Series

Flanged  recessed switch

3/8" diameter press to fit

Standard 18" #22AWG leads

Special wire available

Swith and Magnet available seperately

Resistor, Diode and Supervisory Loop available on request

Colors: White, Brown, Grey

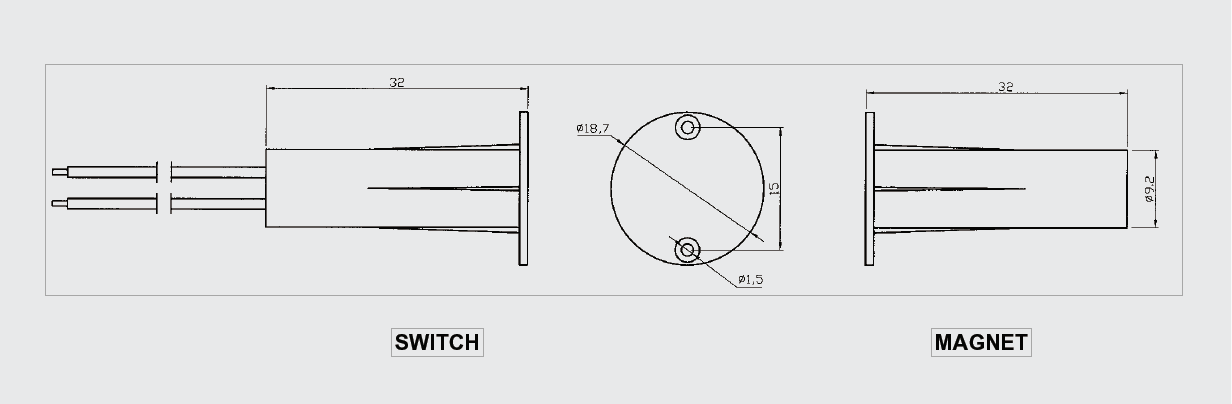

Dimension (mm)

QQ图片20201208154938

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

Inch(mm)

Depature Gap

Inch(mm)

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1019

Closed

N/O

3/4(19)

0.87 (22)    0.150       10   100  0.5

BR-1019WG

Closed

NO

1(25)

1.1

(28)

   0.150       10    100  0.5

BR-1019A

Open

N/C

3 / 4(19)


   0.150       3 30  0.2

BR-1019C

Closed

SPDT

3/ 4(19)


   0.150       3 30  0.2
