BR-1012T Hot Sell UL Approved Wired Recessed Mounted Contact Sensor for Home Security

• 3/8" diameter Stubby press to fit
• Terminal block for quick connecting
• Switch or magnet available seperately
• Build-in Resistors or Diodes on request
• Colors: White, Brown, Grey

  • BR-1012T
  • Sentek


BR-1012T Series

• 3/8" diameter Stubby press to fit

• Terminal block for quick connecting

• Switch or magnet available seperately

• Build-in Resistors or Diodes on request

• Colors: White, Brown, Grey

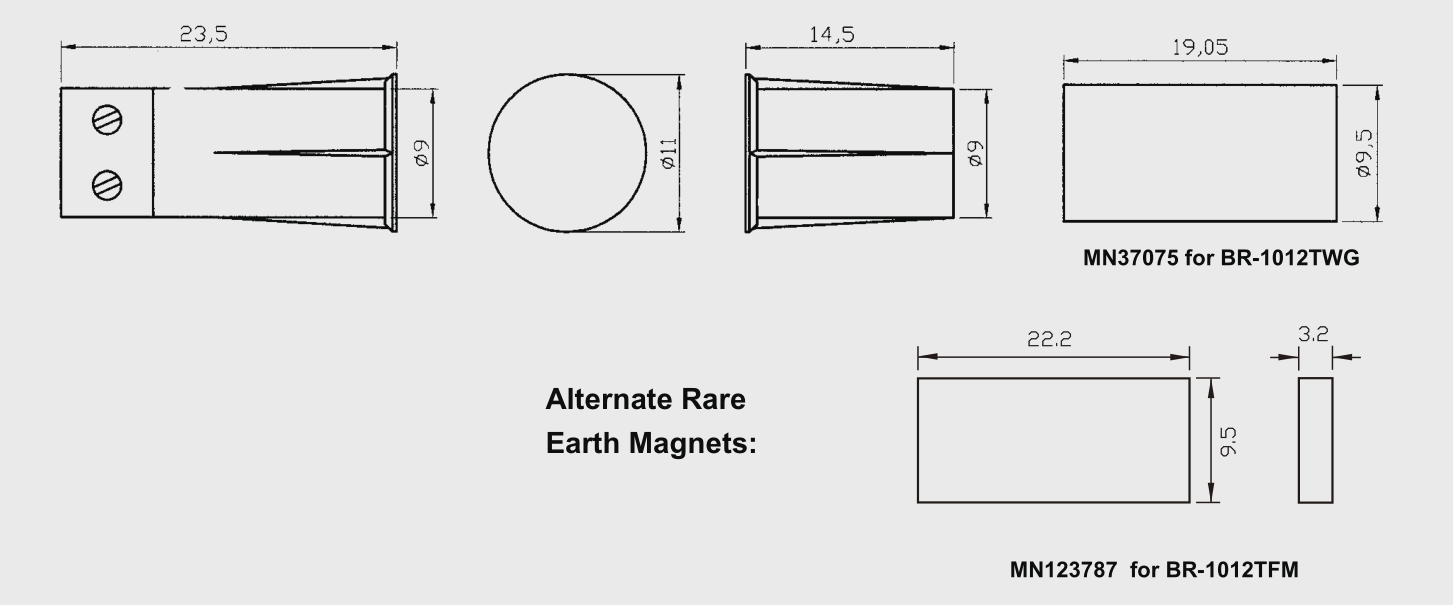

Dimension (mm)

1012T

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

[Inch(mm)]

Depature Gap

[Inch(mm)]

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1012T

Closed

N/O  3/4 (19)   0.82 (21)      0.150       10   100  0.5

BR-1012TWG

Closed

N/O  1 1 / 4(35) 1.47 (37) 0.150      10      100  0.5

BR-1012TFM

Closed

N/O  1 1 / 4(31) 1.3 (33)  0.150       10      100  0.5
