BR-1012 Most popular Window /Door Automatic magnetic contact reed switch

• 3/8" diameter Super Miniature Stubby switch
• Press to fit
• Standard 18" #22AWG Leads
• Special leads upon request
• Switch or magnet are available separately
• Resistor, Diode and Supervisory Loop available on request
• Colors: White, Brown, Grey

  • BR-1012
  • Sentek


BR-1012 Series

• 3/8" diameter Super Miniature Stubby switch

• Press to fit

• Standard 18" #22AWG Leads

• Special leads upon request

• Switch or magnet are available separately

• Resistor, Diode and Supervisory Loop available on request

• Colors: White, Brown, Grey

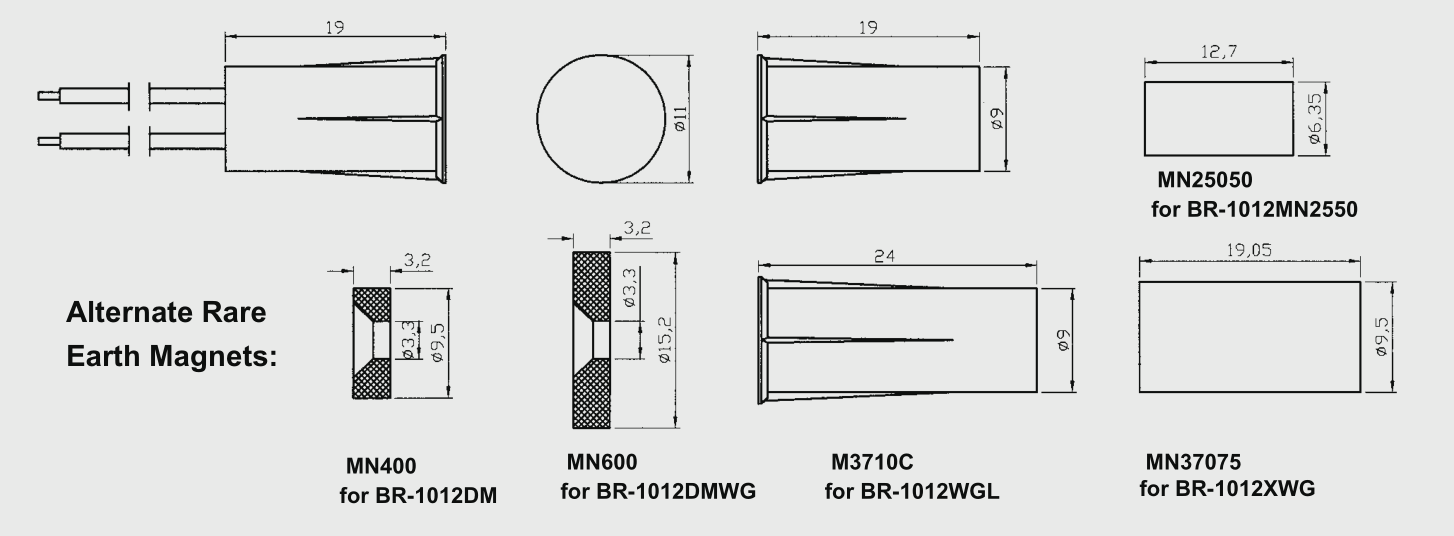

Dimension (mm)

1012

Order Information


Part

Number

Loop

Type

Reed

Form

Closed Gap

[Inch(mm)]

Depature Gap

[Inch(mm)]

Maximum Initial

Contact Resistance

(Ohm)


Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1012

Closed

N/O  3/4 (19)   0.8 (20)      0.150       10   100  0.5

BR-1012WG

Closed

N/O  1 1 / 4(32) 1.45 (37) 0.150      10      100  0.5

BR-1012WGL

Closed

N/O  1 1 / 8(28) 1.1 (28)  0.150       10      100  0.5

BR-1012MN2550

Closed

N/O  3/4 (20) 0.9(23)   0.150       10      100  0.5

BR-1012DM

Closed

N/O  5/8 (16) 0.75(19)  0.150       10      100  0.5

BR-1012DMWG

Closed

N/O  1 (25) 1.05(27)  0.150       10      100  0.5
